Asante MacCon MC3NB 10Base 2 (Thinnet)

Submitted by goldangel on April 30, 2006 - 9:48pm. Circuit-Side | Other | Network | Nubus | Nubus Mafia

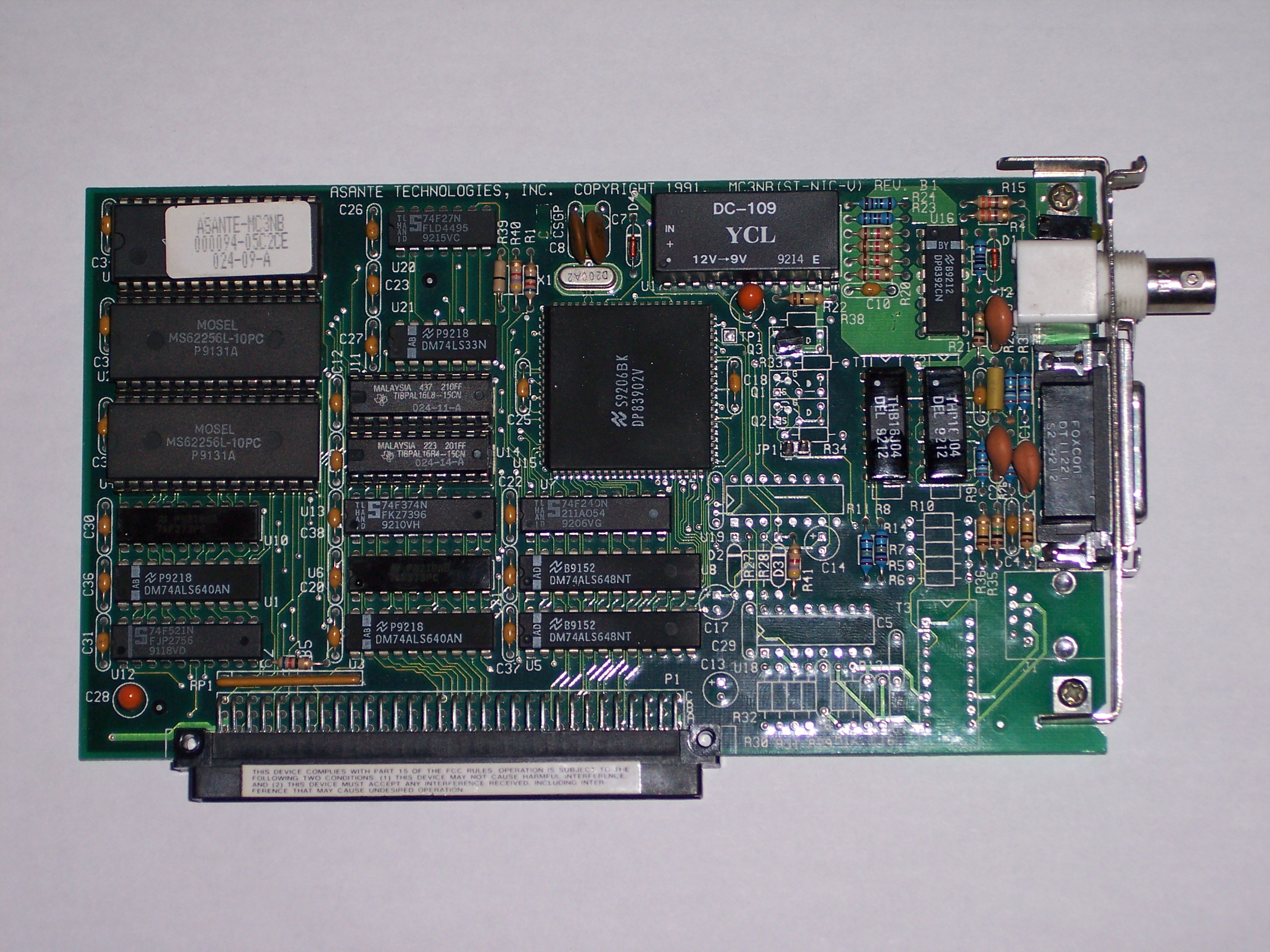

Asante MacCon MC3NB REV. B1 1991....with 10Base 2 connector Edit: thanx for the information all
» login or register to post comments | 640x480 | 800x600 | 1024x768 | 1600x1200 | original image | Circuit-Side image gallery | previous image

Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.
cwsmith's picture

It's an old network card -- t

Submitted by cwsmith on April 30, 2006 - 11:57pm.

It's an old network card -- the coaxial connector was common before the RJ-45 (10/100/1000 Base T Ethernet) connector gained favor. I have a couple of network switches that have a coax port as well, so you can connect an older "token ring" network to your 10-Base T network.

» 24 Macs running System 6 thru Leopard
5 PCs running Windows (3.1 thru XP Pro), Ubuntu and Fedora
Apple IIe, Apple IIgs, Color OneScanner, QuickTake 150
Black iPod nano 1G 4GB, purple iPod shuffle 1GB

login or register to post comments
dankephoto's picture

thinnet . . .

Submitted by dankephoto on May 1, 2006 - 2:12am.

it's called. The other port on your card is called AUI, to which you can hook an AUI transceiver (similar to Apple's AAUI jobbie.)

dan k

» || web page | Applish goodies servers Carracho (port9700) & Hotline (port9500) ||
» email macdan at comcast.net

login or register to post comments
davintosh's picture

Re: thinnet . . .

Submitted by davintosh on May 1, 2006 - 3:04am.
dankephoto wrote:
it's called. The other port on your card is called AUI, to which you can hook an AUI transceiver (similar to Apple's AAUI jobbie.)

Ack. Thinnet is the most horrid invention ever. I kinda got thrown into my first Mac admin job (1994) when the previous guy left suddenly, and spent a frantic night trying to move a printer to another spot in the room, which meant rearranging the thinnet just a little. It went very poorly.

We had been planning on migrating to ethernet in the next month, and had most of the equipment on hand to do the job, plus had new Cat. 5 in the walls. So with all the thinnet trouble I decided to make the move a little early. Dang if it didn't work out better that way. I had spent about five hours trying to get the thinnet working; it took another hour and a half to unpack the switches, install a few ethernet cards & software, install a couple of media converters on the older gear, and hook up the patch cables. And it worked the first time.

Boy do I like ethernet!

» Obsolescence is just a lack of imagination.
Visit my blog: davintosh.com -- it may not be up to date, and it may not be exciting, but you can say you've been there.

login or register to post comments
Jon's picture

It's not really [url=http://e

Submitted by Jon on May 1, 2006 - 3:08am.

It's not really token ring but more of a continuous bus for Thinnet. Think of it more like the old LocalTalk setup. Token ring networks generally used various connectors like a 9-pin D-sub to connect in a star fashion to a MAU.

» I am not in this world to live up to other people's expectations, nor do I feel that the world must live up to mine. - Fritz Perls

login or register to post comments
Smiththers's picture

i can remember in school we h

Submitted by Smiththers on May 1, 2006 - 11:25am.

i can remember in school we had a room full of old PC's that used those cards, they were daisy chained i think. very odd. i can also remember appletalk networks :-) and trying to play multiplayer games of marathon over them, horribly slow.....

» -Justin
EVGA 680i (new upgrade!), Q6600 @2.9ghz, 2gb G-Skill, 8800gts 320mb x2 SLIx16, OCZ 700w PS. 250gb + 500gb Seagate Sata, ASUS Sata DVDR.

login or register to post comments
dankephoto's picture

re: thinnet

Submitted by dankephoto on May 1, 2006 - 12:24pm.

10Base2 thinnet IS ethernet, just a different (and nowadays considered horrid Grin ) physical implimentation. What nowadays y'all consider ETHERNET is 10BaseT (or 100BaseTX) using CAT-3/5/5e/6 unshielded Twisted Pair (UTP) cabling, with the familiar 8P8C RJ-45 connector. Just another of several possible physical implimentations.

The wikipedia page on OSI (Open Systems Interconnection Reference Model) is also worth a read.

dan k (call me Mr. Link Crazy Grin )
