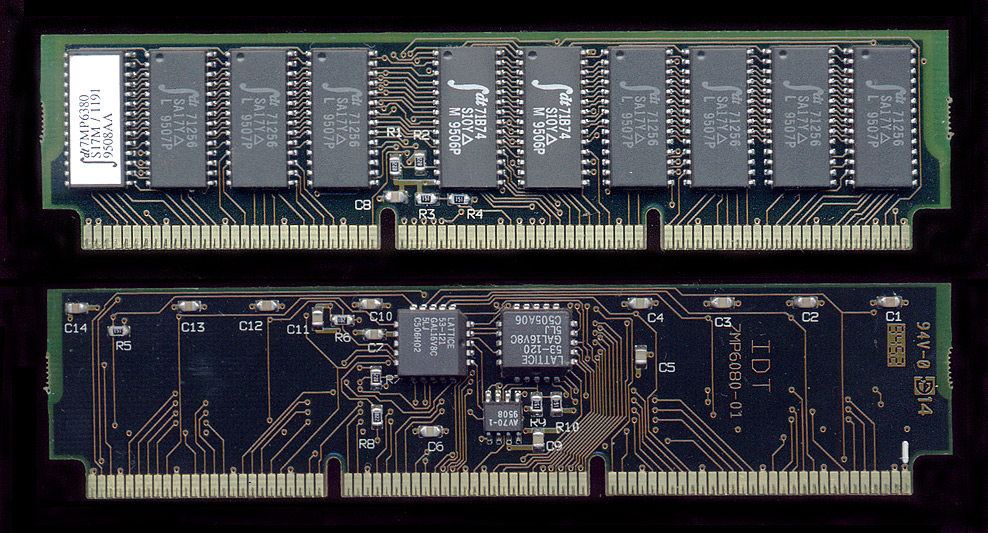

6100-66cachesimm

Submitted by Tom Owad on April 5, 2004 - 2:24pm. Apple | Circuit-Side | Nubus Mafia | Other | Other
» login or register to post comments | 640x480 | 800x600 | original image | Circuit-Side image gallery | previous image | next image

Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.
DrBunsen's picture

I realise this is three years

Submitted by DrBunsen on October 16, 2007 - 7:01am.

I realise this is three years old, but do you recall if this was a 1MB cache?

» Damn the Torx screws, full speed ahead!
Apple and Wireless FAQ

login or register to post comments
eeun's picture

Cache for the 6100 series wer

Submitted by eeun on October 16, 2007 - 2:45pm.

Cache for the 6100 series was 256K.

» It's all pants.
3 stories posted
login or register to post comments
DrBunsen's picture

Not all of it. There were 51

Submitted by DrBunsen on October 16, 2007 - 3:39pm.

Not all of it. There were 512k and 1MB caches available.

» Damn the Torx screws, full speed ahead!
Apple and Wireless FAQ

login or register to post comments
DrBunsen's picture

See [url=http://www.welovemac

Submitted by DrBunsen on October 16, 2007 - 3:50pm.

See here for example

» Damn the Torx screws, full speed ahead!
Apple and Wireless FAQ

login or register to post comments
eeun's picture

Ah...so yours was a rhetorica

Submitted by eeun on October 16, 2007 - 6:22pm.

Ah...so yours was a rhetorical question.

» It's all pants.
3 stories posted
login or register to post comments
DrBunsen's picture

No, I wanted to check if the

Submitted by DrBunsen on October 18, 2007 - 7:11pm.

No, I wanted to check if the specific one photographed here was 1MB or not.

» Damn the Torx screws, full speed ahead!
Apple and Wireless FAQ

login or register to post comments
tmtomh's picture

256

Submitted by tmtomh on October 18, 2007 - 7:31pm.

It appears to be a 256k module. According to Chipmunk, the "256" numbers at the end of the code on each of the individual chips means each one is 32kbits x 8, which means each chip is 32kBytes. Since there are eight chips, that makes a 256k module. See for example:

http://www.chipmunk.nl/DRAM/idt.htm

and

http://www.chipmunk.nl/DRAM/SizeCache32Mx8.htm

Best,
Matt
