WTB: Xceed SE/30 Harness

Submitted by rimmer on October 15, 2007 - 9:11pm. 680x0 Macs and Lisa

Hi all.

I have an SE/30, micron Xceed Color 30 and the original CRT board. But where did the internal wire-harness go? I have NO idea! So, if anybody knows of someone who makes them or have a spare (fat chance), I'm in the market!

TIA,
Anders

PS. The reason the harness is gone, is due to the fact the Xceed and the CRT option has been bought separately - some 5 years apart, actually. Bought the CRT board 5 years ago, and the Xceed only a fortnight ago.

» login or register to post comments | previous forum topic | next forum topic

Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.
pmjett's picture

good luck by itself

Submitted by pmjett on October 15, 2007 - 9:51pm.

Anders,

I have an Xceed setup that I've toyed with the idea of parting with, but I wouldn't separate the harness from the card or CRT board.

I can, however, give you information about the harness. I helped another 'Fritterer (in a minor way) make a grayscale adapter, and he had to clone the harness. The connectors are still made and the wiring isn't THAT terrible. I doubt if anyone has a spare harness, but fabbing up one isn't an impossible task.

mike

» 128K now working!, 512K, Mac Plus, Classic, SE/30, ANS 700/200, Indigo iMac, B&W, Sawtooth, iBook G4. Numerous SGI and Sun boxen.

login or register to post comments

Many thanks

Submitted by rimmer on October 16, 2007 - 5:56am.

Hi Mike.

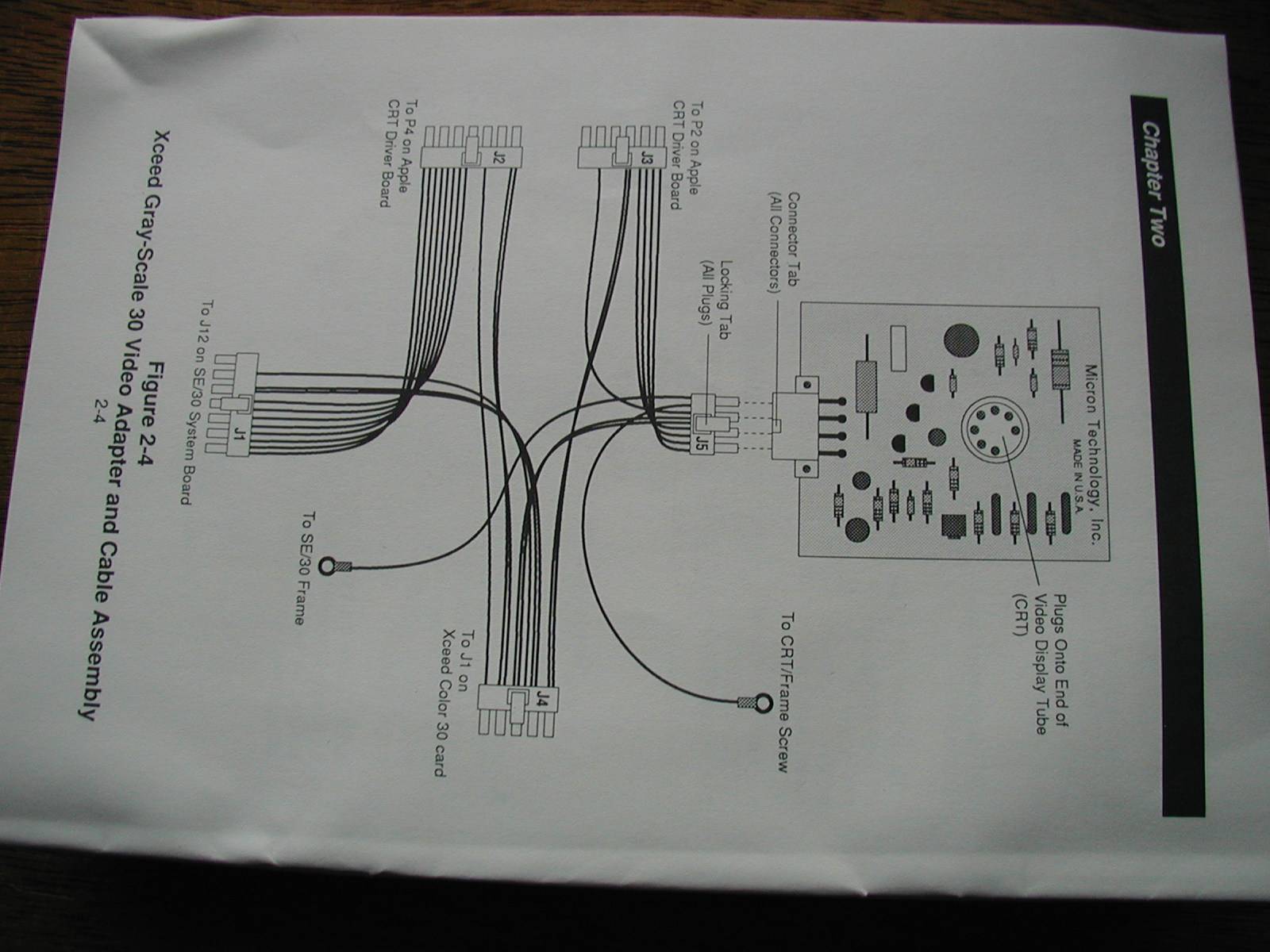

It would be super, if you could help me out with the wiring diagram for the harness - I have a picture of one, but it's hard to see, where each wire goes (top or bottom of connector).
