64 Pin Simms

2 replies [Last post]
June 27, 2010 - 2:35pm
lostcluster
Offline
Last seen: 1 year 3 weeks ago
Joined: Mar 17 2009
Posts: 22

Hello,

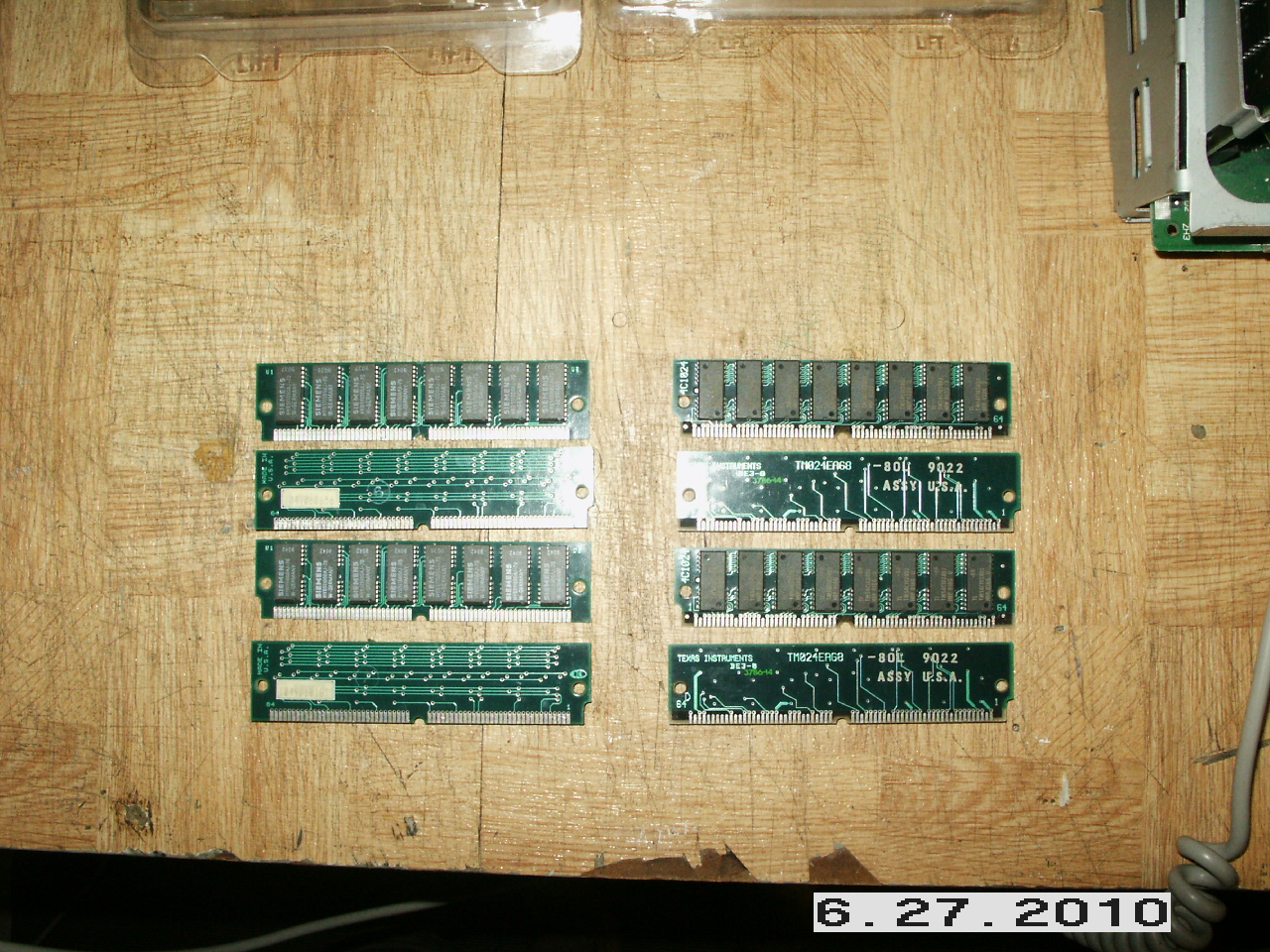

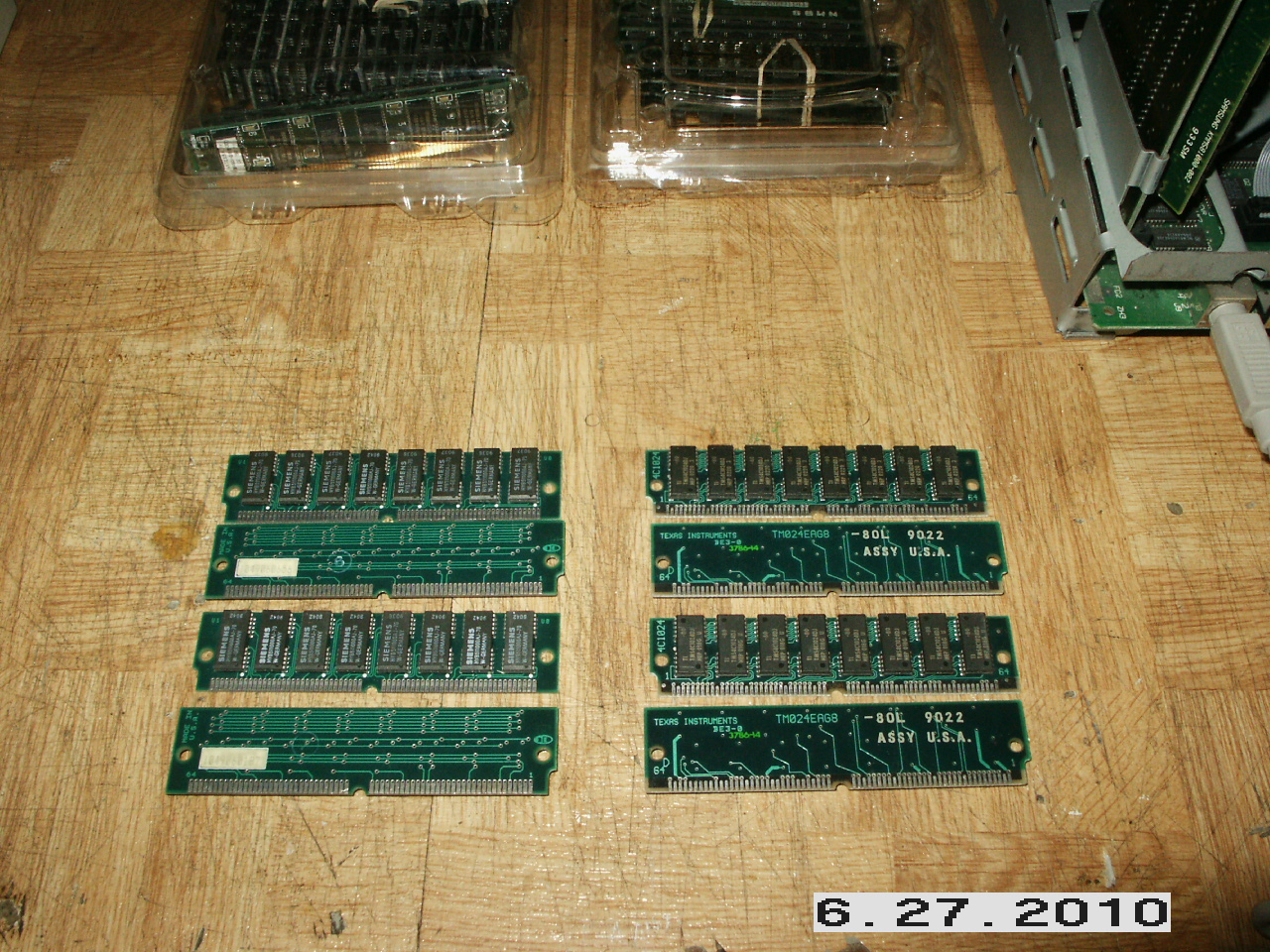

I was going through my old simms and found 4 Texas Instruments TM024EAG8 64 pin simms and 4 (I believe TWI) 64 pin simms with Siemens chips. Is there any way to tell if these are for the IIfx or an old Amiga?

AttachmentSize
64 pin Simms.JPG844.81 KB
Simms 64 Pin.JPG818.39 KB
Top

Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.
January 14, 2011 - 1:52am
#1
grannysmith's picture
grannysmith
Offline
Last seen: 4 weeks 3 days ago
Joined: Old Guard
Posts: 177
Re: 64 Pin Simms

64-pin SIMMs were also used in one-or-other Apple LaserWriter, but the cards were too slow for the IIfx, which needs 80ns chips or faster.

http://www.everymac.com/systems/apple/mac_ii/stats/mac_iifx.html

You can get the chip speed usually from the type-number's suffix, often of the form '-80' or the like. Help in interpreting the type-number may be acessible at:

http://www.chipmunk.nl/DRAM/ChipManufacturers.htm

__________________

IIe; 21x68K; 17xPPC; 6xG3; 5xG4. System 6.0.8 to OS 10.5.8

Top
January 14, 2011 - 10:15am
#2
DrBunsen's picture
DrBunsen
Offline
Last seen: 1 day 22 hours ago
Joined: Old Guard
Posts: 940
Re: 64 Pin Simms

grannysmith wrote:

but the cards were too slow for the IIfx, which needs 80ns

I suppose if one was desperate, one could downclock the IIfx?

__________________

Damn the Torx screws, full speed ahead!
