A rat's nest of wire
Submitted by eeun on May 11, 2004 - 4:39pm.
Apple | Embedded

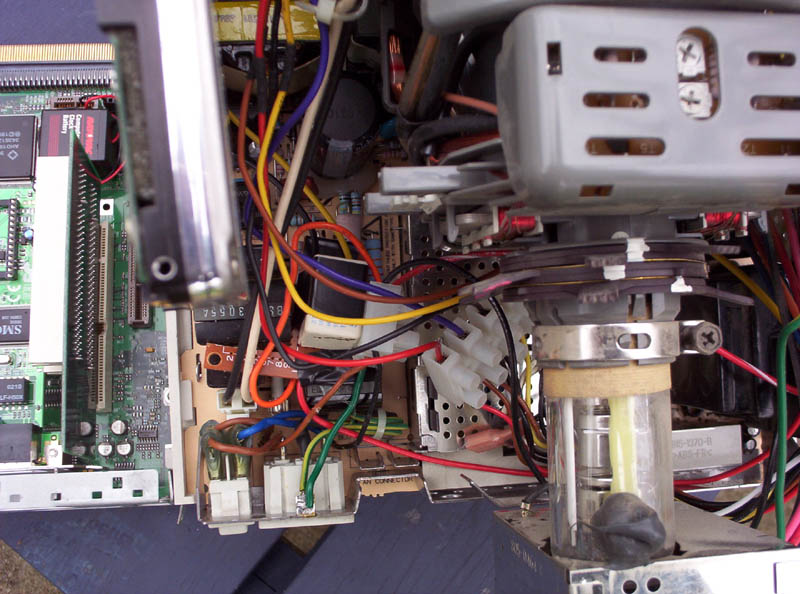

Here's the messy wiring that make all these extra bits get along.
Just to the left of the yoke is the 12V relay that turns on the second power supply.
