Applied Engineering QuadraLink -- backside
Submitted by davintosh on November 10, 2004 - 3:26am.
Other | Solder-Side | Nubus | Nubus Mafia

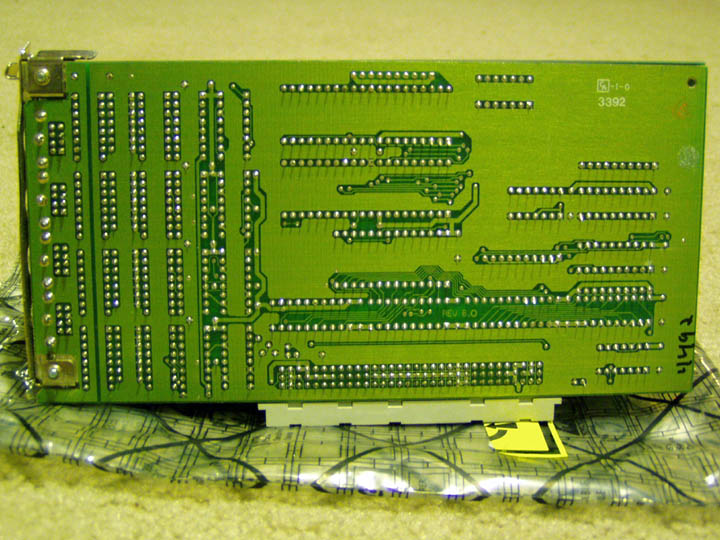

Here's the solder side of the QuadraLink. Not much to see.
[i]Note: the diagonal lines under the solder points are shadows. I couldn't figure out what that was, cuz it wasn't there when I looked at the card; this shot was taken with a ceiling light almost directly above. Doh![/i]
