Here you will get a closer view to the different Apple-Computers that i use
   and I uncover several details of the neat little configuration-Goodies of those computers.....

   Page No.:002-2





     I am limited with my space, and I therefor "compacted" very tough the area where I work with a part of my Apple-Computers.....
    so lets first take a "overview of the "Apple-Corner" and see how many computers are linked together in that small corner....

   In the following tables the introduced Apple Computer Systems
  are explained in more closer detail by schematic of each single system.

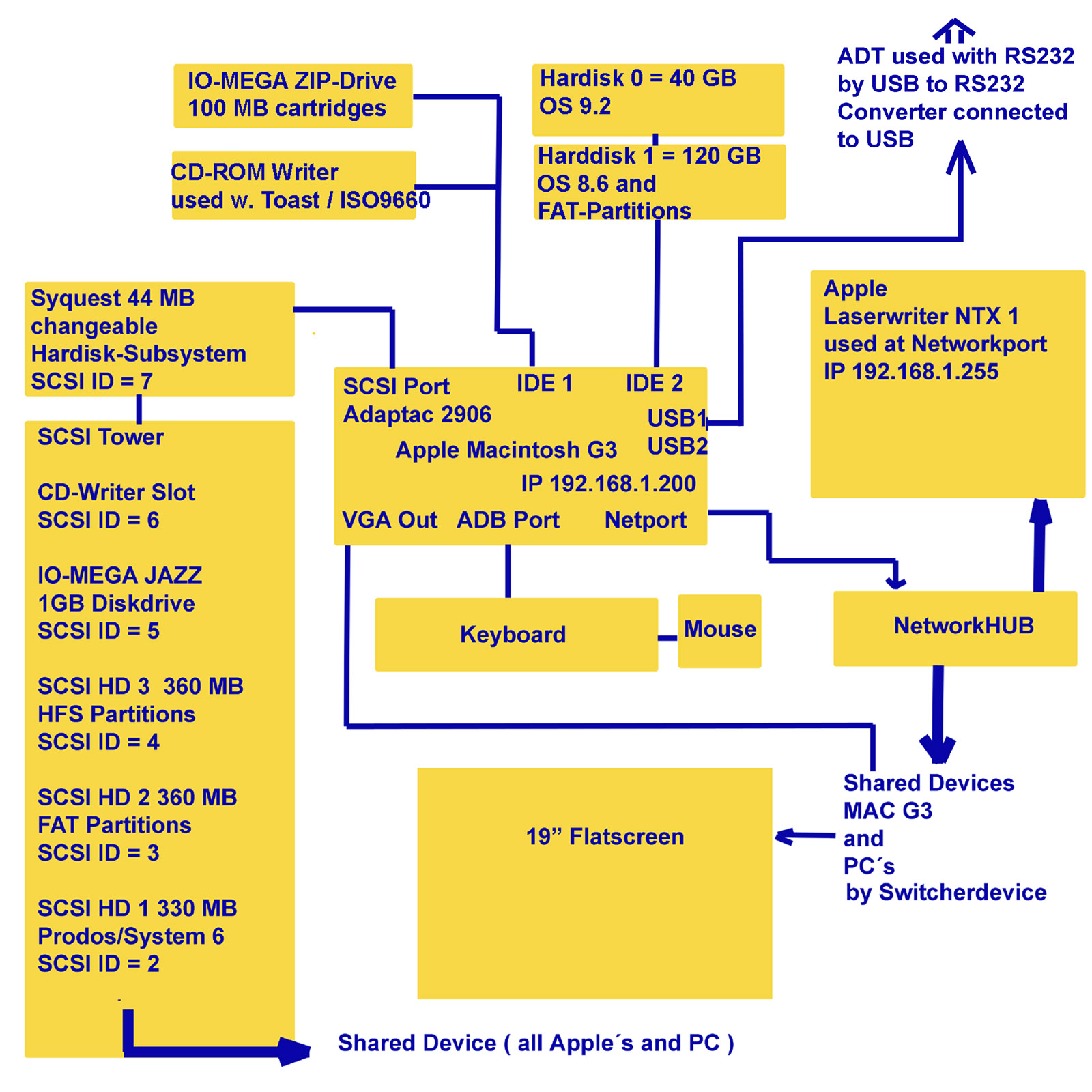

  Macintosh
  G3 system

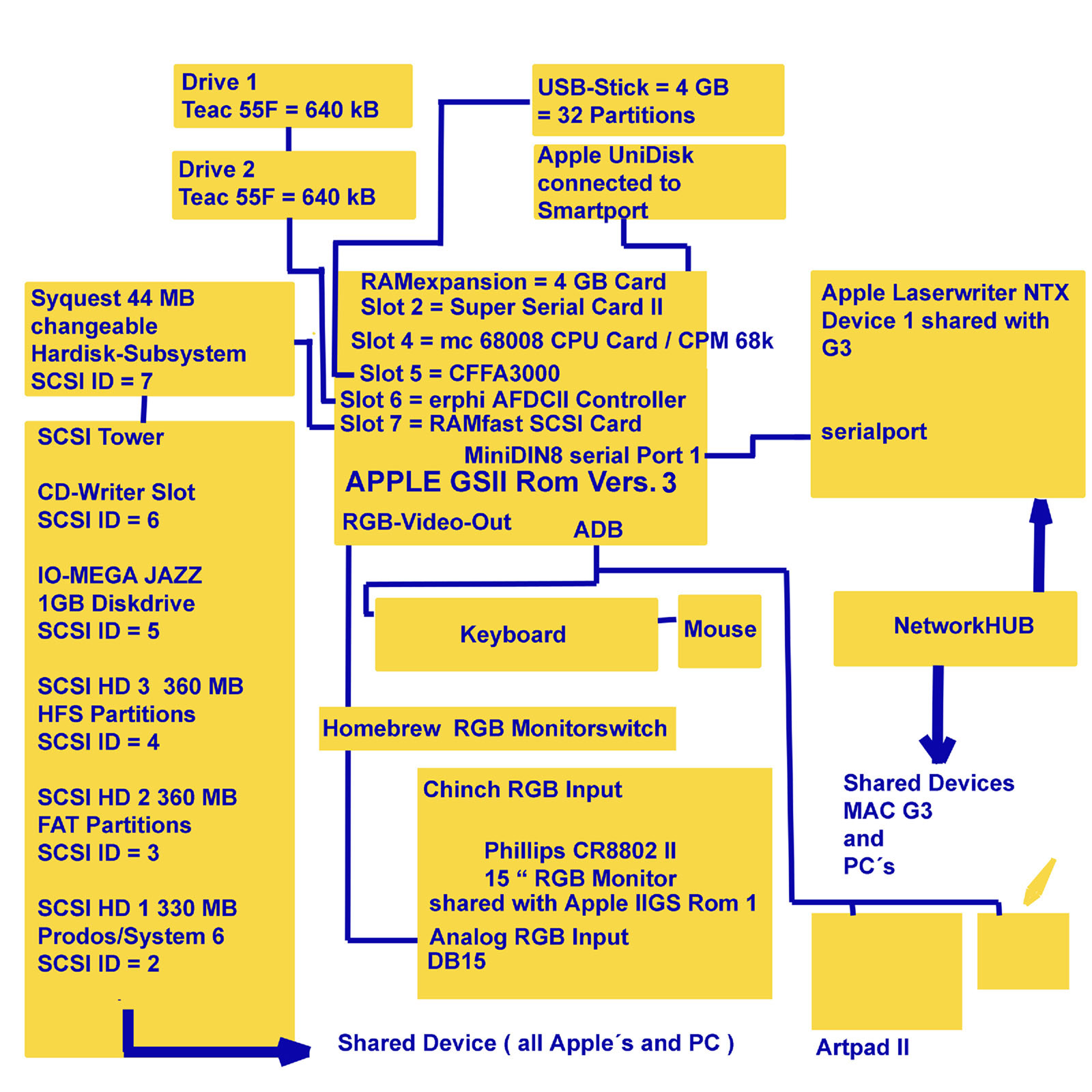

- 1 Apple IIGS
   with ROM 3

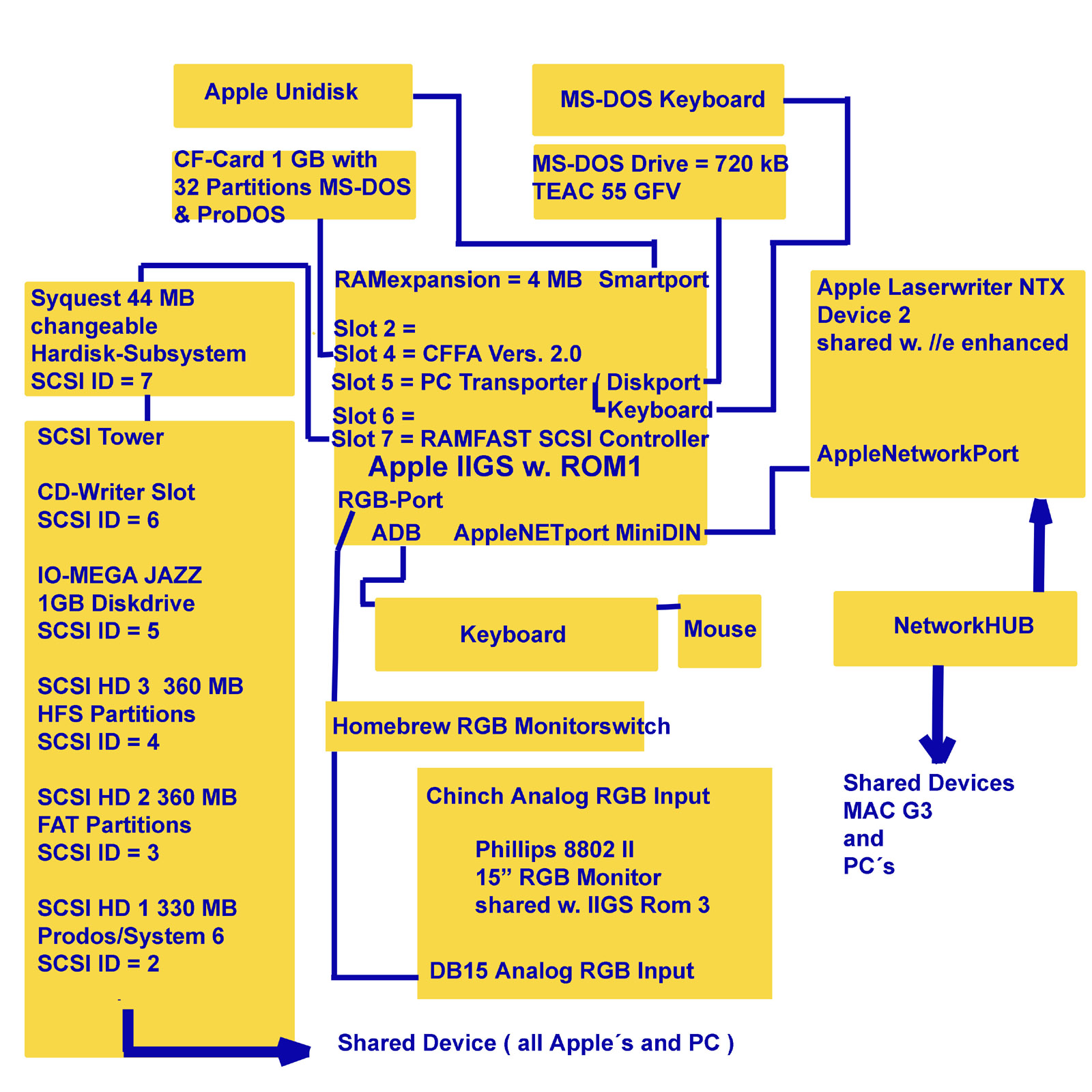

- 1 Apple IIGS
  with ROM 1

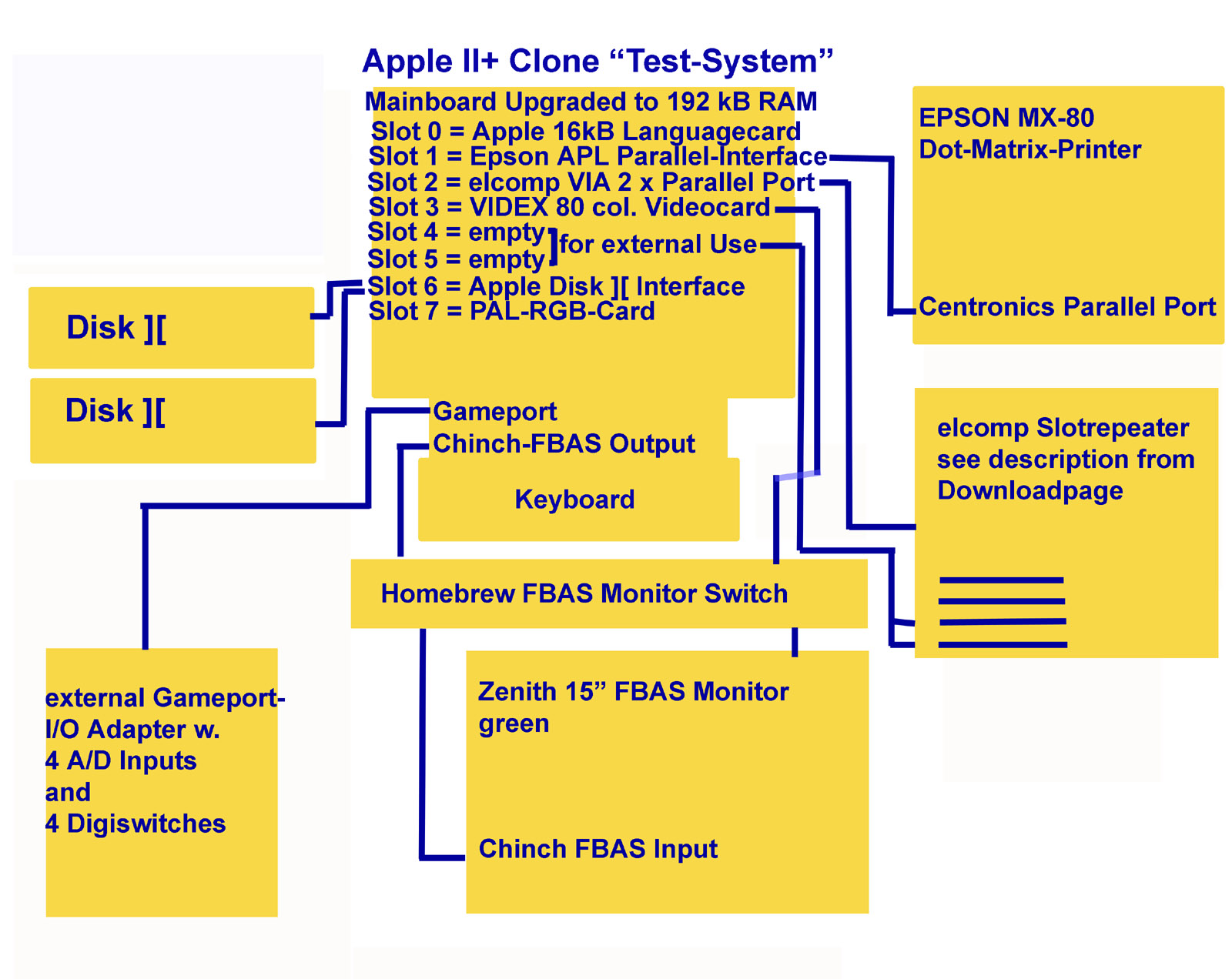

1 Apple II clone
used for testing Interfacecards

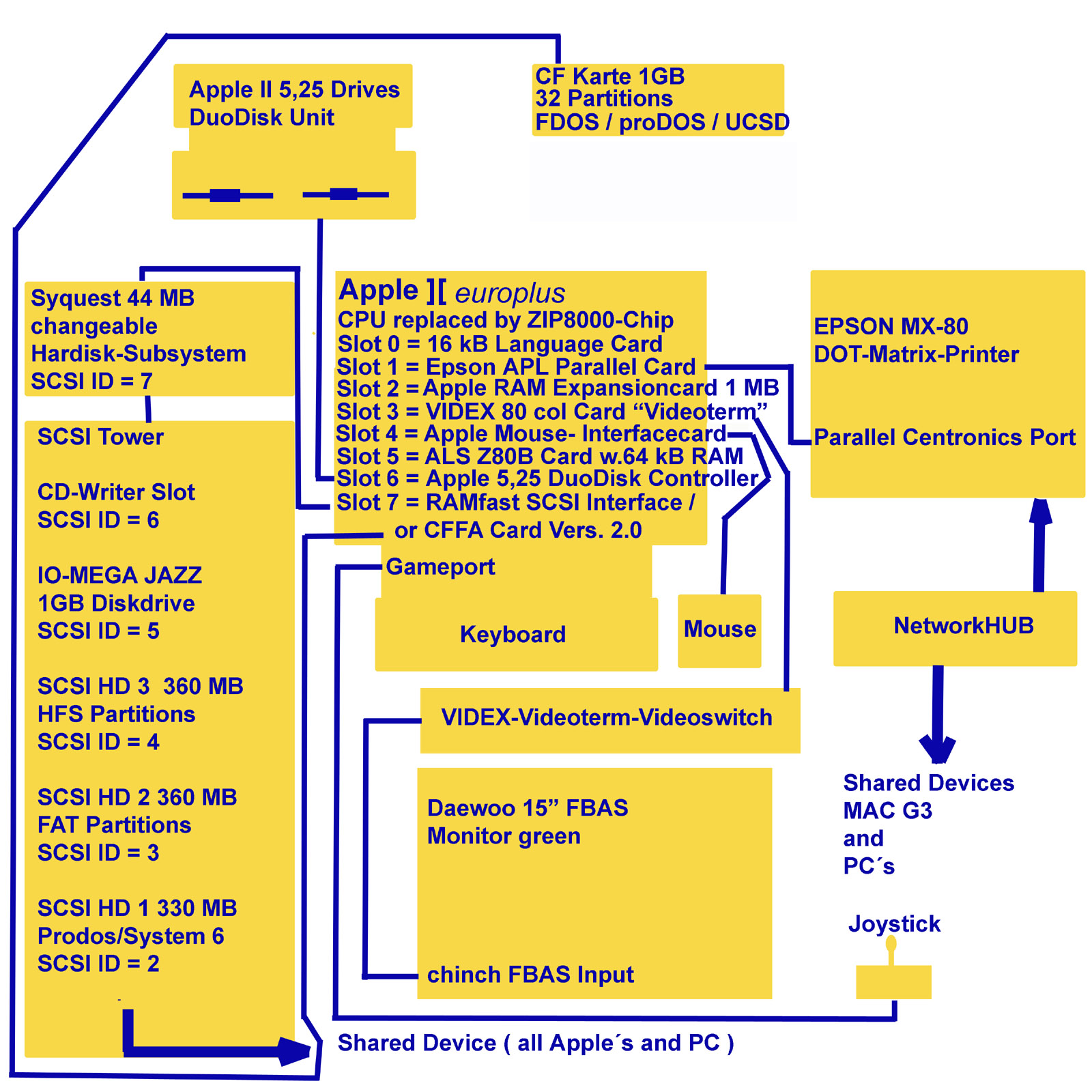

1 Apple II
           europlus

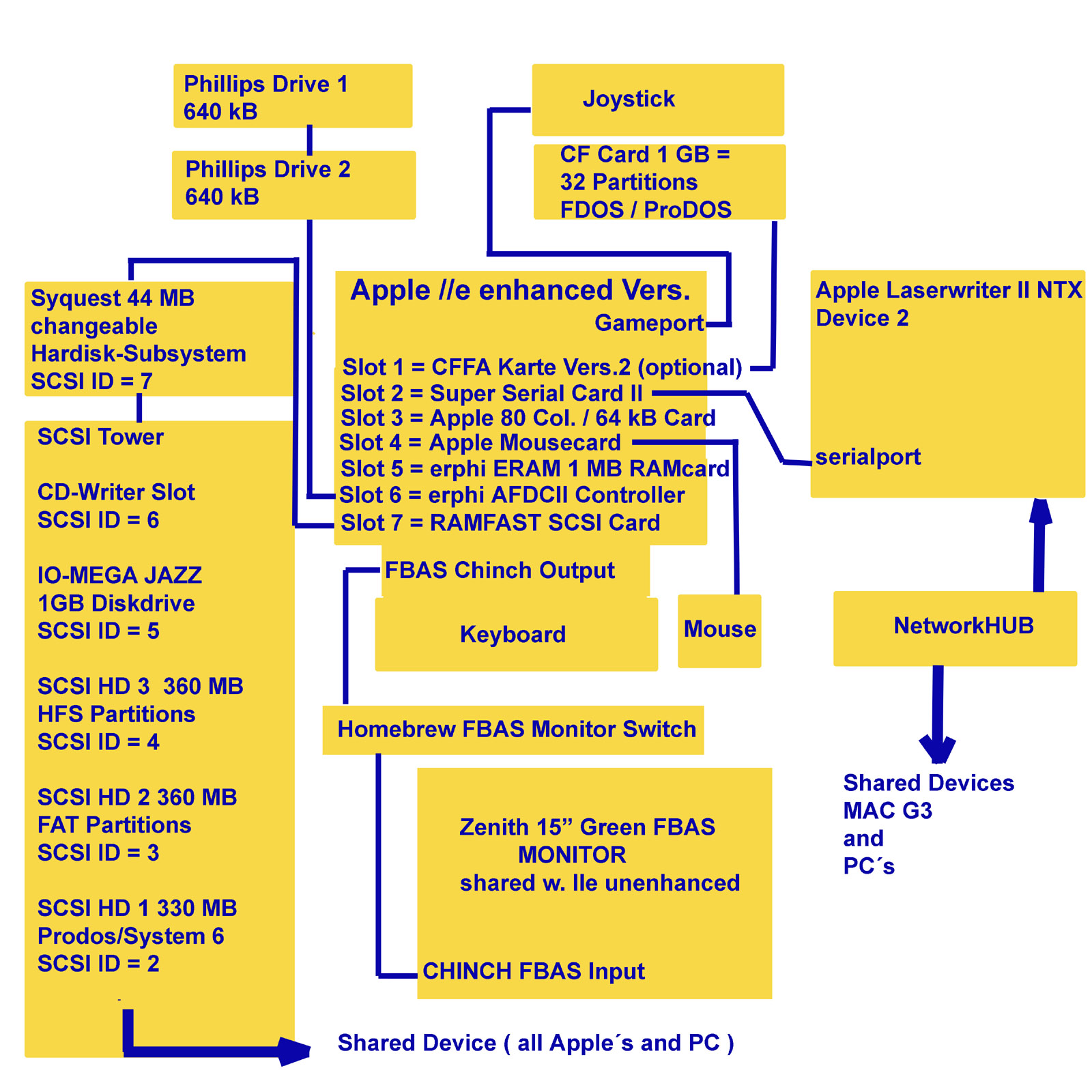

1 Apple //e
     enhanced
     Version

   LaserWriter NTX #1
   for Apple IIGS Rom 3
   and G3 MAC


   LaserWriter NTX #1
   for Apple IIGS Rom 1




   Syquest  44 MB Harddisk-Media´s
   for Syquest in SCSI Tower below


  SCSI Tower
 for Use with
   RAMFAST SCSI-Controller

Syquest Mediadrive
and
and insertable
 SCSI CD-ROM
and
IOMEGA
Jazz-drive for
   1 GB Media´s

and
with 3 Harddisks
 ( each 360 MB )

   the entire chain is use in that
   computer with which the current
   worksession is executed by
   insertig the SCSI-Card in
   a free slot,


except if used with the G3
- in that case the Chain is
   connected to the Adaptec 2906
   at the backpanel of the G3.




  All Systems equiped
   with modified
   High-grade-Power
   Supplies
    for further details view the description here with this Link

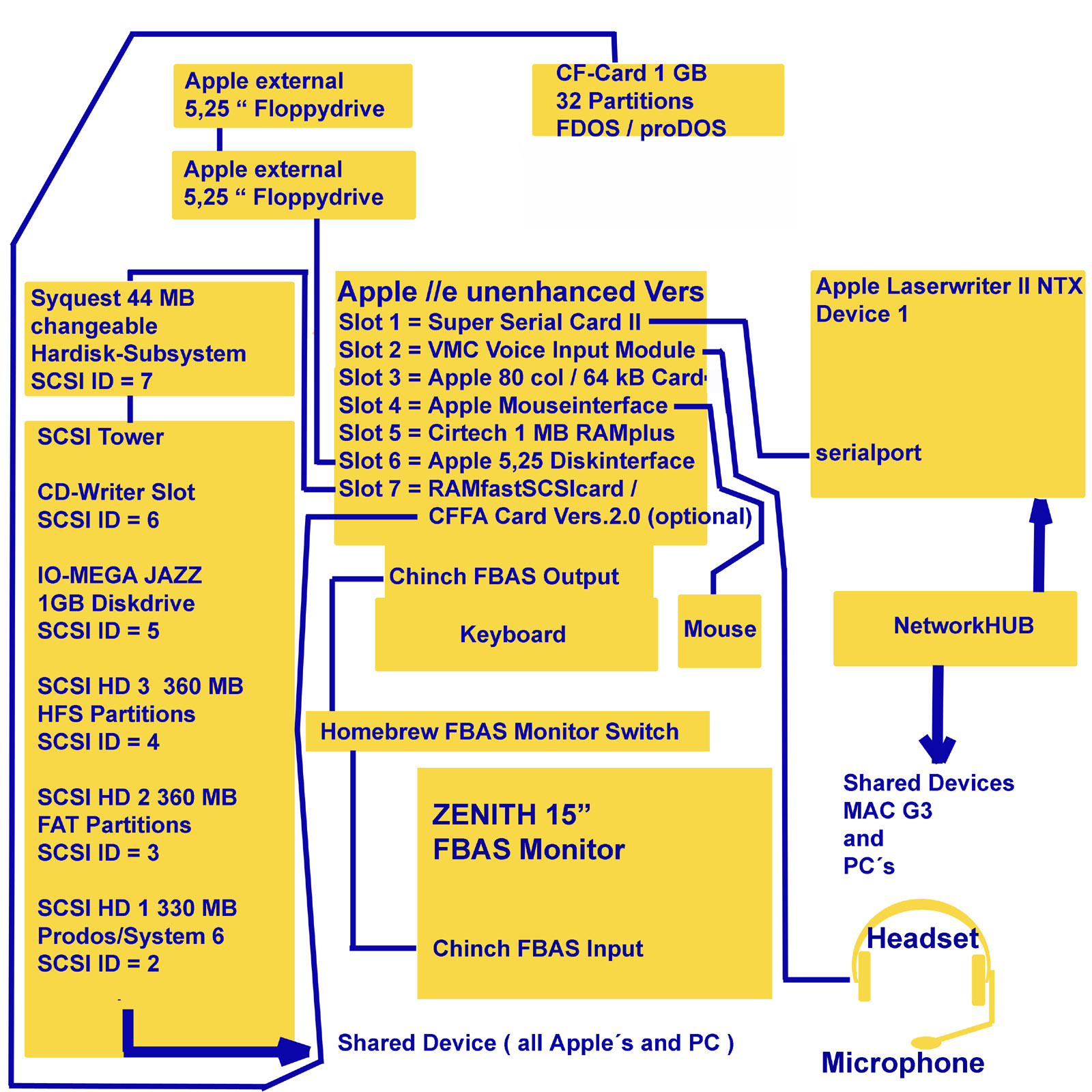

1 Apple //e
    unenhanced
    Version
