Apple 2e Z80 Soft card
AttachmentSize
Image icon 6a.JPG1.97 MB
Image icon SDC10002.JPG2 MB
Image icon SDC10036.JPG1.96 MB
Image icon SDC10015.JPG2.02 MB

hello

I have a Z80 Soft card .If I plug in the card in the Apple 2e.
Can not turn on the Apple.
The significance of the dip-switch does not know me too.
I put the card in slot 3 of the Soft Apple.
Do I something wrong.

regards

MarkO's picture
Offline
Last seen: 1 week 3 days ago
Joined: Dec 10 2011 - 16:26
Posts: 688
Re: Apple 2e Z80 Soft card

hello

I have a Z80 Soft card .If I plug in the card in the Apple 2e.
Can not turn on the Apple.
The significance of the dip-switch does not know me too.
I put the card in slot 3 of the Soft Apple.
Do I something wrong.

regards

I am assuming that the Apple ][e works fine when the Z80 is not installed???

Slot #3 is used for an 80 Column Card. If you have a card in the Aux Slot, very few cards work in Slot #3.

I ran my Applied Engineering ( AE ) Z80 card in Slot #5, this is where AE recommended it..

A manual might be located for your Card, and would explain the DIP Switches... Are there any Identifying Marks besides, the Z80??? It might be a Micro-Soft Clone. I don't remember changing any DIP Switches on my AE Z80 Card.

MarkO

Offline
Last seen: 3 years 6 months ago
Joined: Jan 24 2005 - 16:20
Posts: 356
Re: Apple 2e Z80 Soft card

The optimal slot for the Softcard and most of it's clones is slot 4.

ewu
Offline
Last seen: 5 years 1 month ago
Joined: Sep 27 2014 - 05:20
Posts: 10
Re: Apple 2e Z80 Soft card

hello

I tried slot 4 and slot 5.
It does not.

regards
uwe

BillO's picture
Offline
Last seen: 3 years 9 months ago
Joined: Jun 20 2014 - 18:03
Posts: 258
Re: Apple 2e Z80 Soft card

I've got my Z80 card in slot 4 of my IIe. I have always used slot 4, even back in the day when my II+ was new.

Offline
Last seen: 8 years 2 months ago
Joined: Jun 15 2014 - 12:48
Posts: 305
Re: Apple 2e Z80 Soft card

What CP/M programs are you using?

ewu
Offline
Last seen: 5 years 1 month ago
Joined: Sep 27 2014 - 05:20
Posts: 10
Re: Apple 2e Z80 Soft card

hello

The Power lamp does not go with card inserted to .Order I can also test no CPM system.

regards
uwe

Offline
Last seen: 3 years 1 day ago
Joined: Feb 17 2013 - 16:18
Posts: 149
Re: Apple 2e Z80 Soft card

In that case, something is horribly wrong with the card and you should stop trying to get it to work before you damage your machine.

amauget's picture
Offline
Last seen: 1 day 19 hours ago
Joined: Jan 3 2011 - 11:34
Posts: 339
Re: Apple 2e Z80 Soft card

Hello,

The switches are always OFF on all card I've seen.
According to the schematic, they are use to control DMA, NMI, IRQ and address decoding.

The Power lamp does not go with card inserted to.

Do you hear a clicking sound coming from the PSU ?

ewu
Offline
Last seen: 5 years 1 month ago
Joined: Sep 27 2014 - 05:20
Posts: 10
Re: Apple 2e Z80 Soft card

hello

When the card is inserted, the lamp flickers dark on the motherboard.
The PSU is quiet.

regards
uwe

amauget's picture
Offline
Last seen: 1 day 19 hours ago
Joined: Jan 3 2011 - 11:34
Posts: 339
Re: Apple 2e Z80 Soft card

Hello,

I don't know exactly what you mean by "flickers dark" but I'am assuming it's not a short circuit on the card.

Just to be sure we'ra talking about the same card, is your card like this one ?

Offline
Last seen: 8 years 4 months ago
Joined: Apr 10 2006 - 20:01
Posts: 1013
Re: Apple 2e Z80 Soft card

It sounds to me like the power supply is marginal, and the card puts it over the limit of what it can provide. What happens if every other card except the Z80 is removed? (Yes, it would never be practical to run that way because you wouldn't have any storage devices, but we're trying to diagnose the PS with this test)

ewu
Offline
Last seen: 5 years 1 month ago
Joined: Sep 27 2014 - 05:20
Posts: 10
Re: Apple 2e Z80 Soft card

hello

When all the cards are removed the same thing happens, the lamp flickers dark on the board.
I've also changed the jumper settings, no change.

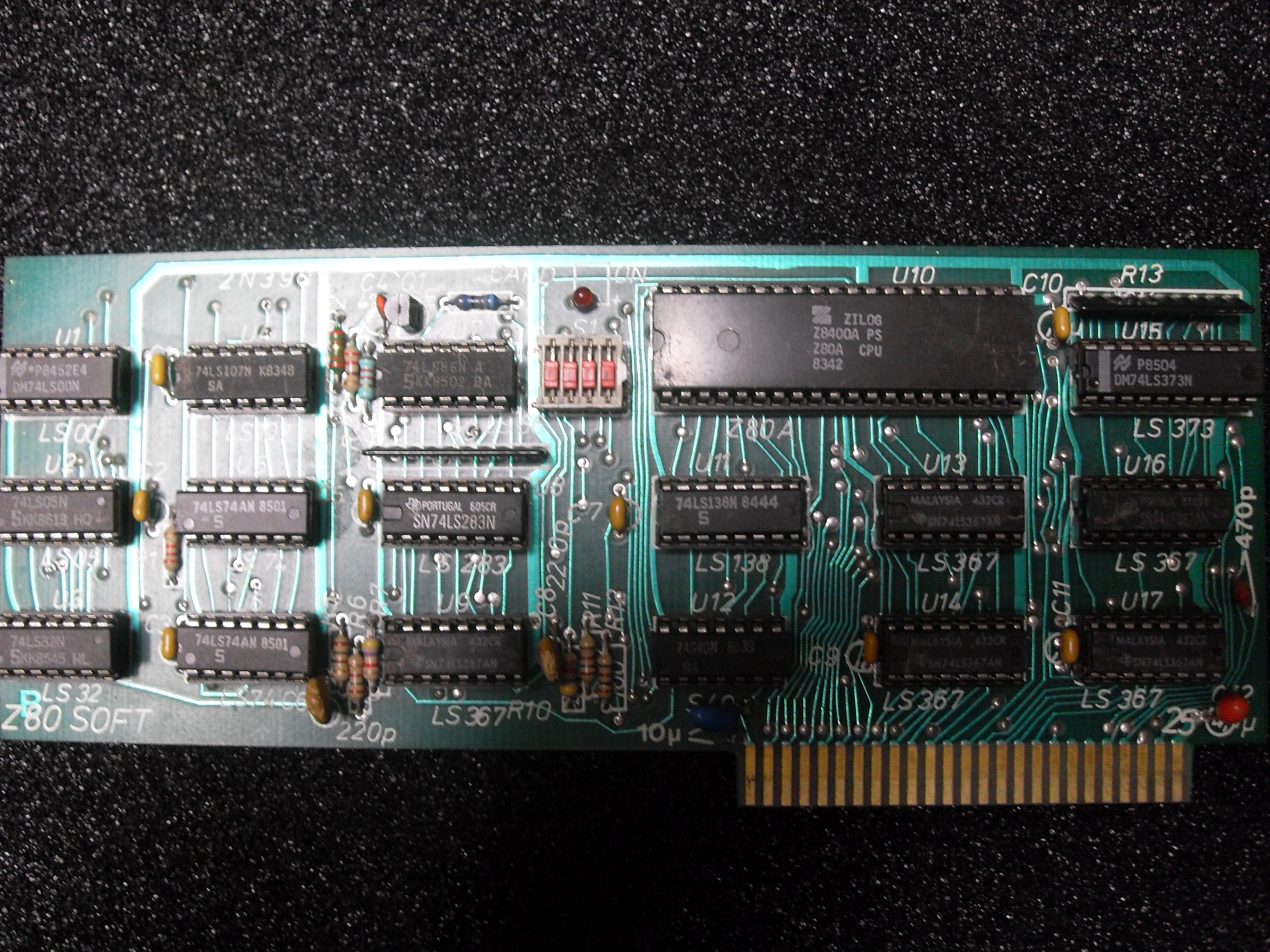

My card is similar, and imaged on the top post.
In operation, an RGB card, printer card and disk interface card.

regards
uwe

Offline
Last seen: 8 years 2 months ago
Joined: Jun 15 2014 - 12:48
Posts: 305
Re: Apple 2e Z80 Soft card

Your Z80 card is obviously damaged. Either capacitor has shorted due to the age or some IC burned. You could test the ICs by removing them one by one if they are socketed...With a removed damaged IC the power supply to your apple would be normal. You could diagnose the faulty chip with dozen of removals and power ONs...Whatever you do just keep IC orientation and don't bend pins while pushing the ICs back into their sockets.

ewu
Offline
Last seen: 5 years 1 month ago
Joined: Sep 27 2014 - 05:20
Posts: 10
Re: Apple 2e Z80 Soft card

hello

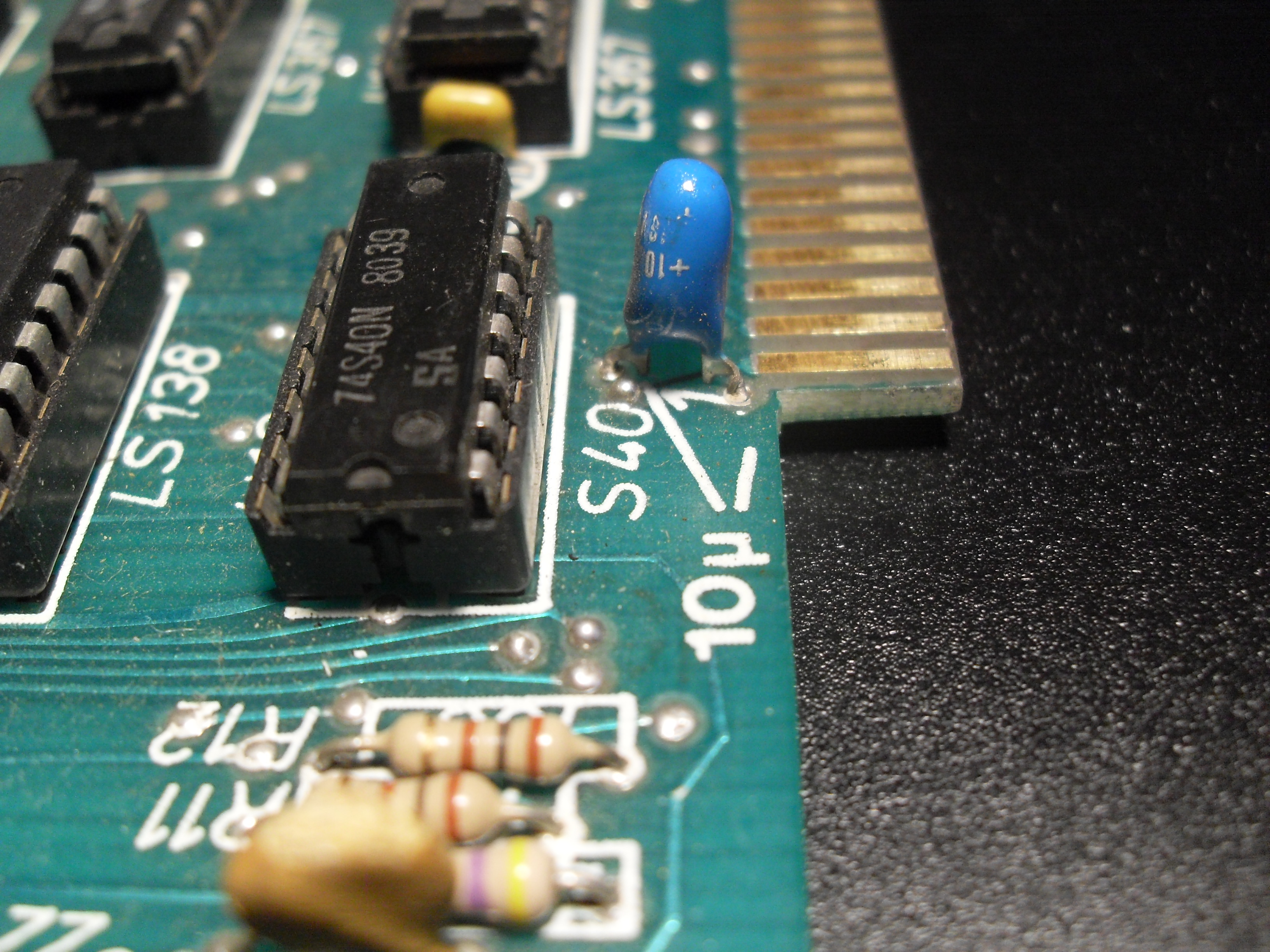

The capacitor was defective.
After I changed the capacitor, happened

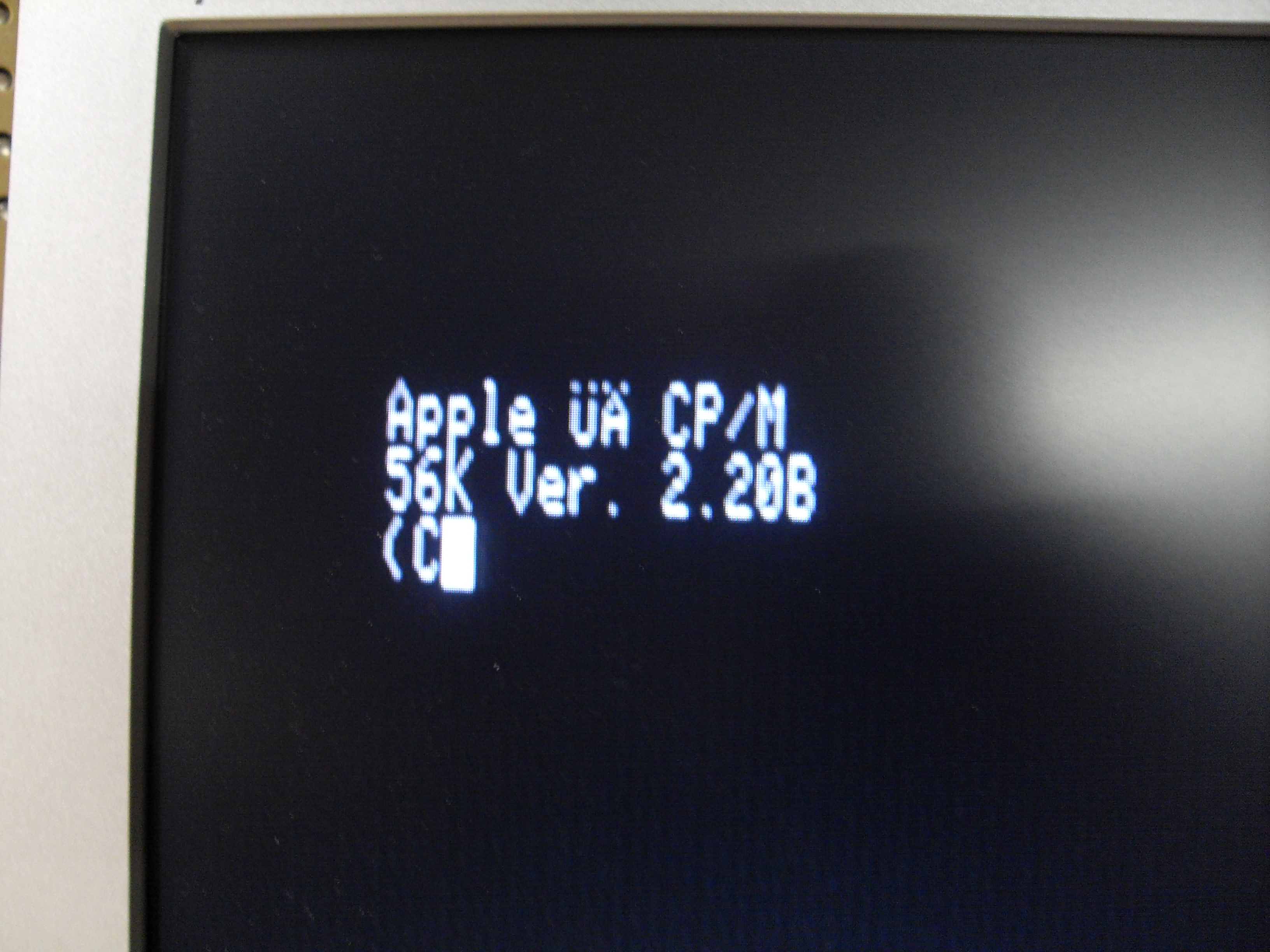

Next .I can start the CPM program, but it depends.

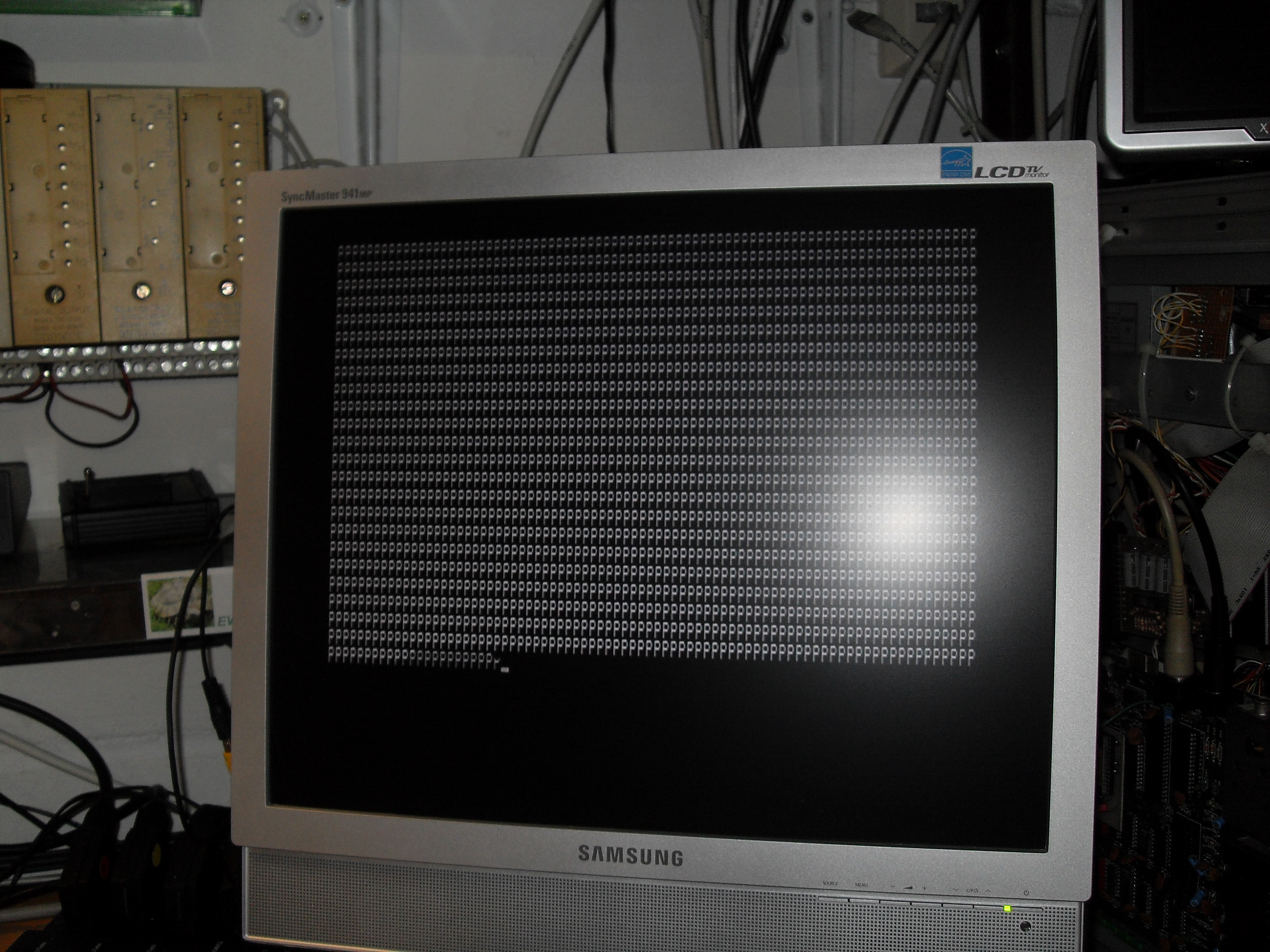

See pictures above in the first post.

regards
uwe

speedyG's picture
Offline
Last seen: 4 years 9 months ago
Joined: Nov 16 2011 - 07:45
Posts: 2493
Re: Apple 2e Z80 Soft card

Hello Uwe,
i´m in Germany too.... your Z80 Card is a clone and i have a document related to the trouble with that clone cards:
1 document related to troubleshooting of the card.
I decided to add the related page to my site at:
http://www.appleii-box.de/C02_DebuggingTheZ80Card.htm
The troubleshooting guide is written in German language... so it´s easy for you to understand it....
sincerely speedyG

Offline
Last seen: 2 years 1 month ago
Joined: Feb 14 2021 - 10:11
Posts: 6
Debugging Softcard

Hi,



I'm having the same problem with my Z80 card so I was wondering if you cans send a new link to the document you had sent in 2014? That link is broken since it passed so many years



thanks



amauget's picture
Offline
Last seen: 1 day 19 hours ago
Joined: Jan 3 2011 - 11:34
Posts: 339
Hi,Here is the link to the

Hi,

Here is the link to the picture.

Offline
Last seen: 1 year 10 months ago
Joined: Mar 31 2020 - 19:55
Posts: 848
AlgAppl84 wrote:Hi, I'm
AlgAppl84 wrote:

Hi,



I'm having the same problem with my Z80 card so I was wondering if you cans send a new link to the document you had sent in 2014? That link is broken since it passed so many years



thanks

https://www.applefritter.com/appleii-box/C02_DebuggingTheZ80Card.htm
