Apple //e diagnostic ROM card information
AttachmentSize
Image icon dianostic.01.jpg218.83 KB

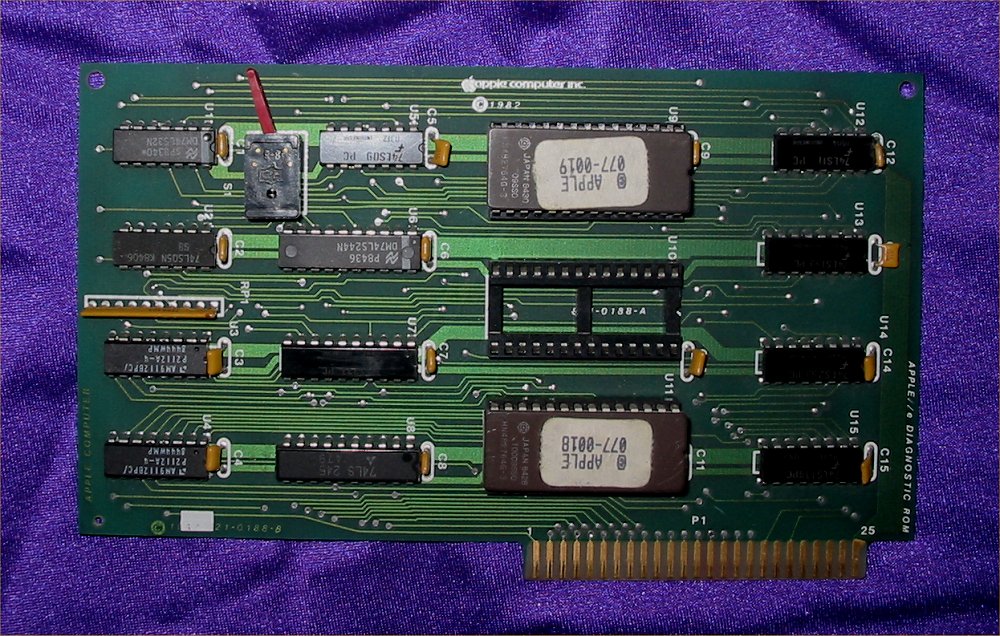

Does anyone know what this card is for and how it works? It has apple //e diagnostic ROM printed on it. I was told it is a rare card and would like to get more information on it.
Thanks for any information.
Walt

MarkO's picture
Offline
Last seen: 1 week 15 hours ago
Joined: Dec 10 2011 - 16:26
Posts: 688
Re: Apple //e diagnostic ROM card information

It appears to be used for advanced Diagnostics for the Apple ][e. Not a lot of Application Information.

Some Info at The Apple II Documentation Project .

Some more info at ProgramD.com.

MarkO

Offline
Last seen: 1 year 7 months ago
Joined: Jan 22 2015 - 08:15
Posts: 9
Re: Apple //e diagnostic ROM card information

Thanks Mark. I got enough information from your post to test this thing out and then matbe Ebay it.
Walt

MarkO's picture
Offline
Last seen: 1 week 15 hours ago
Joined: Dec 10 2011 - 16:26
Posts: 688
Re: Apple //e diagnostic ROM card information

Thanks Mark. I got enough information from your post to test this thing out and then matbe Ebay it.
Walt

Not a Problem...

Also, Welcome to Apple Fritter!!

MarkO

amauget's picture
Online
Last seen: 1 hour 58 min ago
Joined: Jan 3 2011 - 11:34
Posts: 339
Re: Apple //e diagnostic ROM card information

Hello and welcome knight61,

I own a card like that.
It contains a program that can test hardware (CPU / RAM / ROM), lores & hires display.
Just insert the card in any slot and if the red swith is in correct position, it will take over the machine at boot time.
In the other position, the Apple //e will boot as usual.

ROMs have been translated into several languages. I have the German, French and English versions so far.
I've made a couple of pictures but I don't have them with me right now.
I can upload them if you're interested.

[edit] Here are the pictures.

tokabln's picture
Offline
Last seen: 4 months 3 days ago
Joined: Dec 30 2015 - 10:48
Posts: 253
Wow, an old thread started in

Wow, an old thread started in 2015 is reanimated ;-)



So something really new can be found here:

https://www.applefritter.com/content/apple-iie-diagnostics-card-2018-version

Offline
Last seen: 16 hours 10 min ago
Joined: Apr 26 2016 - 08:36
Posts: 666
I built one of these boards.

I built one of these boards.

It's a neat curiosity and could come in handy if the machine has trouble booting.



However it's of very limited utility unless someone improves or expands upon the diagnostic firmware.
