Apple 1 Replica

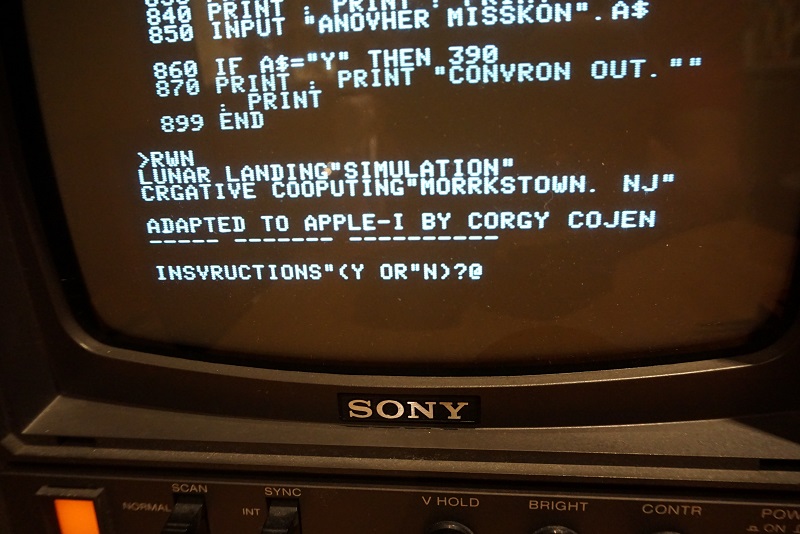

Just finishing off an Apple-1 replica and thought I'd test it by playing a game of Lunar Lander. Chose the version written in BASIC to give the full memory a test....Hmm, something not quite right....And who is this Corgy Cojen chap?? :bigsmile:

AttachmentSize
Image icon DSC00761.jpg176.58 KB
fingerz's picture
Offline
Last seen: 5 days 4 hours ago
Joined: Aug 10 2017 - 13:40
Posts: 96
Re: Apple 1 Replica

Are you using the correct character generator? What component are you using?

Moonferret's picture
Offline
Last seen: 3 months 2 weeks ago
Joined: Dec 30 2015 - 07:16
Posts: 9
Re: Apple 1 Replica

Turned out to be a flaky shift register. The fault only showed up after it had been on for a while.

speedyG's picture
Offline
Last seen: 3 months 3 weeks ago
Joined: Nov 16 2011 - 07:45
Posts: 2495
Re: Apple 1 Replica

Moonferret wrote:
And who is this Corgy Cojen chap?? :bigsmile: ]

Might be misspelled member from here Corey986 > Corey Cohen...
sincerely
SpeedyG

Online
Last seen: 1 hour 47 min ago
Joined: Oct 9 2011 - 12:54
Posts: 1207
Re: Apple 1 Replica

Yep that would be me and I would think a shift register was the problem as they are the most likely problematic component to mess with the display in that way.

cbmeeks's picture
Offline
Last seen: 1 month 1 day ago
Joined: Jan 17 2005 - 14:47
Posts: 56
Re: Apple 1 Replica

I'm curious, what are you using a shift register for?

I haven't looked over your schematics but I was under the impression that your design was similar somewhat to the Briel version.

I guess I need to study your schematics more. Smile
