Apple 5.25 Disk controller card

5 posts / 0 new
Last post
Offline
Last seen: 1 week 3 days ago
Joined: Oct 26 2019 - 17:06
Posts: 6
Apple 5.25 Disk controller card
AttachmentSize

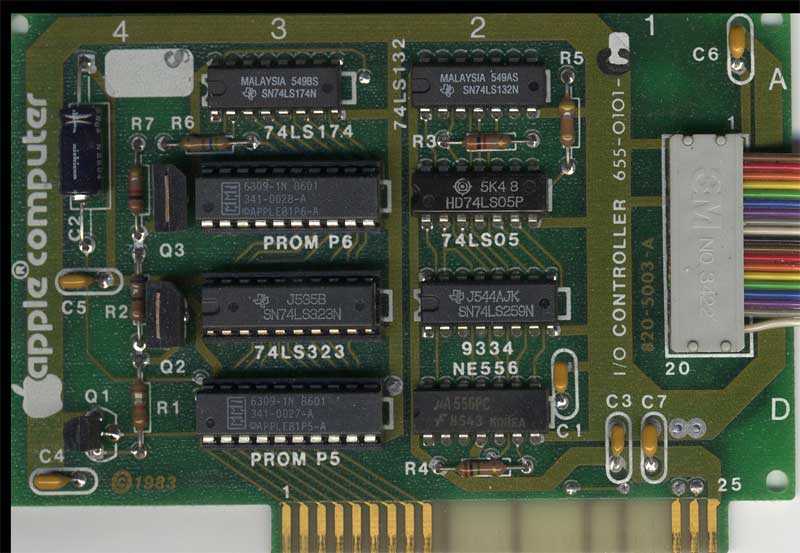

Image icon a2_IO-controller-card.jpg62.26 KB

Hi, I have two of these cards that don't work well. When I place one of them in the Apple IIe I get only vertical blocks at the screen and the keyboard doesn' t respond. With the other the Apple IIe starts up but the duo drive does nothing.  The duo drive is ok because with another Apple IIe it is working well. My question: where can I find the documentation (schematics etc) of this controller card (655-0101) or can someone help me with a servicemanual or schematic?



DDE
Online
Last seen: 1 hour 43 min ago
Joined: Aug 4 2020 - 21:06
Posts: 11
Apple Disk ][ Interface Card

Hi, the closest I can find is the Apple Disk ][ Interface Card.



http://www.applelogic.org/files/APPLEDIISCH.pdf



-DDE

Offline
Last seen: 1 day 1 hour ago
Joined: Mar 31 2020 - 19:55
Posts: 735
DDE wrote:Hi, the closest I
DDE wrote:

Hi, the closest I can find is the Apple Disk ][ Interface Card.



http://www.applelogic.org/files/APPLEDIISCH.pdf



-DDE



The only difference is that the DuoDisk card wires both of the drive headers into one DB-25 connector.



I would suspect the PROMs on the board that gives you strange text. If you have a working board, and your DuoDisk controllers have socketed ICs (some do, while others are non-socketed), then you can freely swap components from a working card (including Disk ][ controller cards) to the DuoDisk cards, and see what is bad.



Always clean the card edges, and clean any socketed components and sockets, ere you go out of your way to diagnose things.

Offline
Last seen: 2 hours 34 min ago
Joined: Aug 18 2017 - 16:53
Posts: 130
The first controller board:

The first controller board: what's the state of /RESET? There's probably an issue with the NE556 on this board, if /RESET stays low.



Offline
Last seen: 1 week 3 days ago
Joined: Oct 26 2019 - 17:06
Posts: 6
I have one spare card and

I have one spare card and they have both sockets for the IC' s so I can swap them and I found out that P5 or P6 failed. So the system is working again, but I like to repair the spare card, is it possible to program a new P5 and P6 Prom like I do with an Eprom  and which type can I use?
