CC logic board covered with battery goop. Help needed

5 posts / 0 new
Last post
Offline
Last seen: 4 years 3 months ago
Joined: May 8 2015 - 21:31
Posts: 62
CC logic board covered with battery goop. Help needed

Hi folks....

I went to the color classic FAQ and found this:

http://www.colourclassicfaq.com/tech/ccspecs.html

and I also found this:

http://www.colourclassicfaq.com/tech/ccparts.html

My CC logic board had a battery left in it, and when I opened it up, the battery had leaked all over the logic board. Using contact cleaner, I was able to get a lot of the goop off, but a small component, which looks like a capacitor broke off, and two chips, marked U3 and U4 still have slime on them. The component that looks like a cap I believe came from Y1. The can says "FIJAPAN" on it.

Because U3 and U4 are in such bad shape, I may not be able to rebuild the board. I wish U3 and U4 were in a socket, but they are not.

Can someone me what Y1 is?

I will try to figure out how to post photos to this forum so you can see what I am taking about.

Thanks

jack

Offline
Last seen: 6 years 9 months ago
Joined: Jul 15 2014 - 10:52
Posts: 43
Re: CC logic board covered with battery goop. Help needed

Y1 indicates a crystal oscillator. It is a rectangular can near the connector. I think it is the clock source for the processor (I can't say for sure, because I don't own a Colour Classic).

Offline
Last seen: 4 years 3 months ago
Joined: May 8 2015 - 21:31
Posts: 62
Re: CC logic board covered with battery goop. Help needed

Thanks. I will try to post some photos today.

jack

Dr. Webster's picture
Offline
Last seen: 18 hours 47 min ago
Joined: Dec 19 2003 - 17:34
Posts: 1760
Re: CC logic board covered with battery goop. Help needed

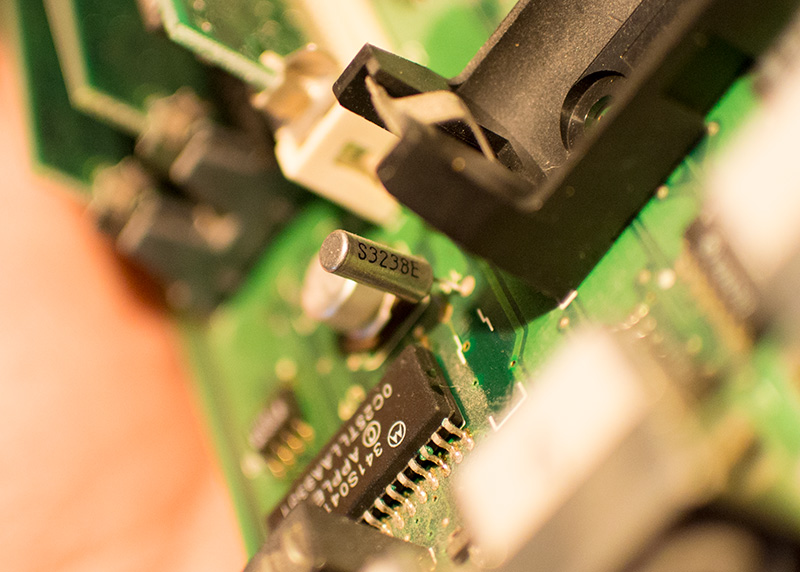

That does look like a small crystal. The one on my CC's motherboard has the marking S3238E on it:

Looks like the SE/30's motherboard uses the same part:

https://68kmla.org/forums/index.php?/topic/24193-repairing-se30-battery-acid-damage-whats-on-d1-and-d2-and-crystal-speed/page-2

FYI, the main crystal is located at G1, between the edge connector and VLSI graphics chip.

Offline
Last seen: 4 years 3 months ago
Joined: May 8 2015 - 21:31
Posts: 62
Re: CC logic board covered with battery goop. Help needed

I believe my CC board is too far gone to repair. I believe I am going to do a logic board swap. I will try to post photos. I hope the photos make it.

Humm. I am not smart enought to figure out how the the photo attachmnet (under the word "COMMENT") works. I also tried to drag and drop from my desktop to this, but that did not work.

Can someopne give me a top on how to file attach photos to posts like this?

Thanks.

jack the new kid
