My Apple 1 replica PCB
AttachmentSize

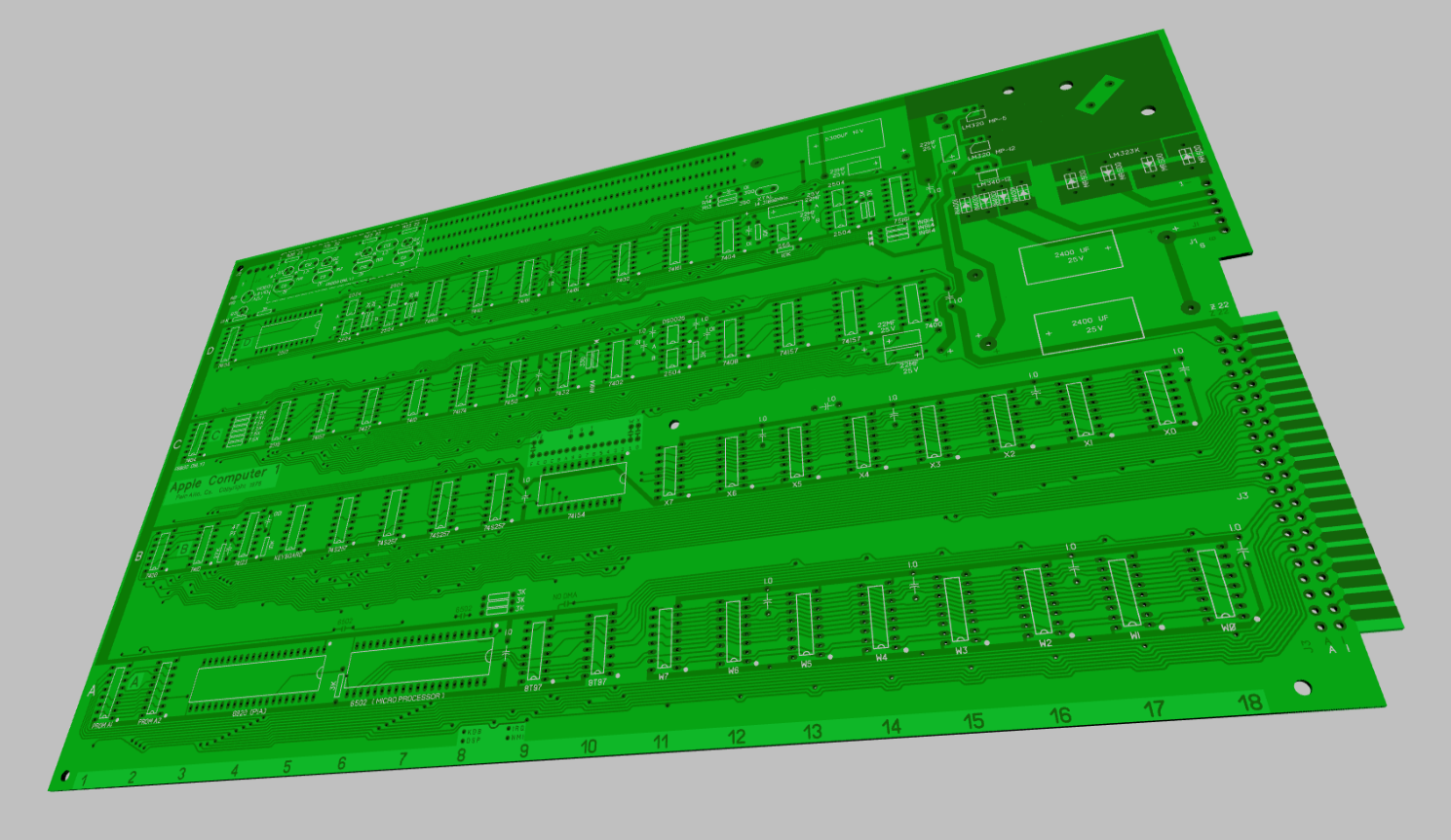

Image icon board.png708.86 KB

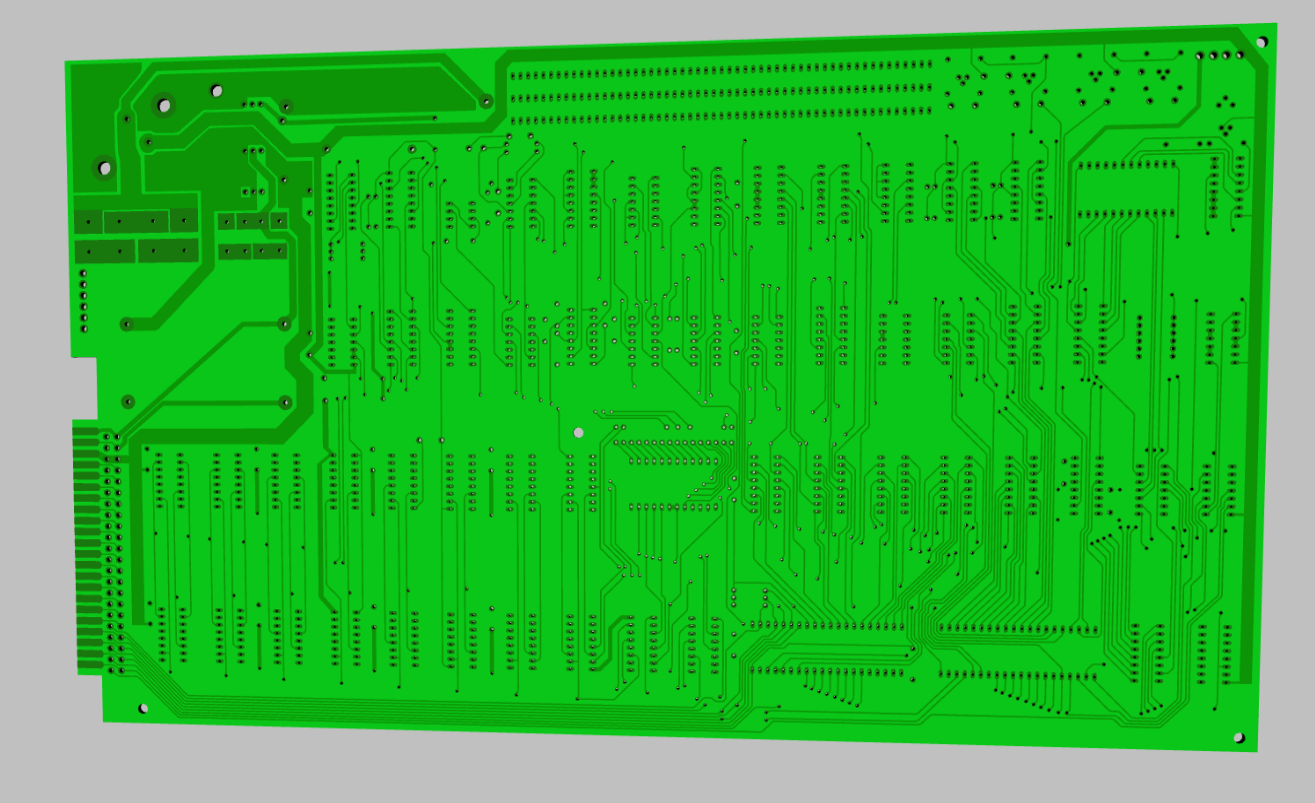

Image icon back.png402.96 KB
Image icon detail.png422.49 KB

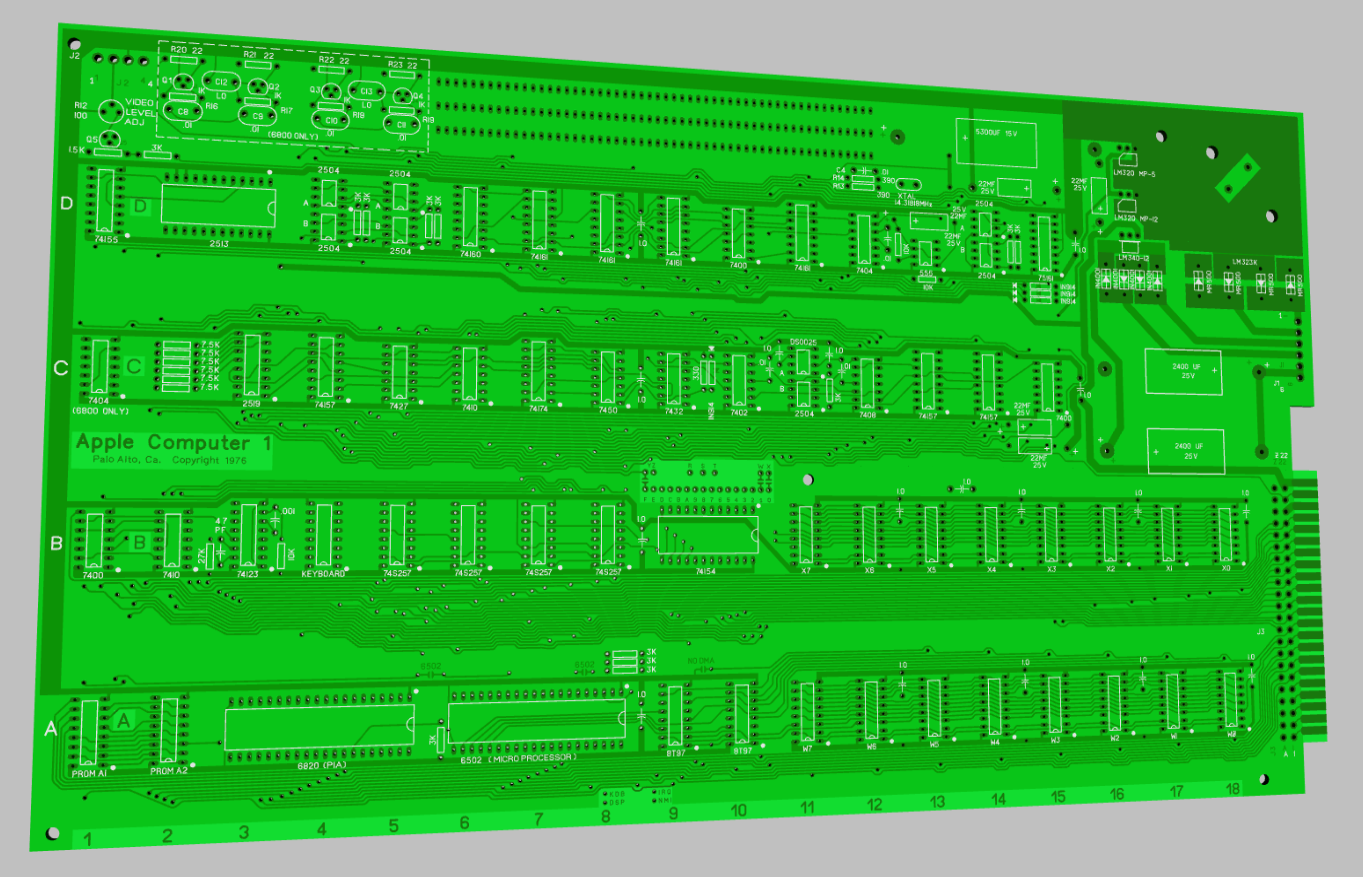

Image icon front.png665.27 KB

Finally after lots of months i finished the PCB design of my Apple 1 replica.

Special thanks to Paul Laughton for the nice tour at CHM last September

















Offline
Last seen: 3 days 5 min ago
Joined: Aug 29 2010 - 18:51
Posts: 18
That is very nice!  So many

That is very nice!  So many questions: Did you have an Apple I to work from?  What method did you use to position the traces?  I'm curious to know how close this is to the original, and how it compares with the Mimeo 1.

Also, will this be available on GitHub?

clockchip's picture
Offline
Last seen: 5 days 11 hours ago
Joined: May 23 2018 - 16:33
Posts: 15
dfnr2 wrote:

dfnr2 wrote:

That is very nice!  So many questions: Did you have an Apple I to work from?  What method did you use to position the traces?  I'm curious to know how close this is to the original, and how it compares with the Mimeo 1.

Also, will this be available on GitHub?



The basis of my work are available pictures from the internet and hires pictures taken by myself at the CHM in Mountainview and Heinz Nixdorf Museum in Germany.

This work is my second shot, the first design was not so accurate (no curved edges, no teardops at the holes...)

Currently i am not sharing the files to the public

clockchip's picture
Offline
Last seen: 5 days 11 hours ago
Joined: May 23 2018 - 16:33
Posts: 15
I traced the PCB using

I traced the PCB using SprintLayout in combination with accurate pictures of the PCB .
