Asynchronous Serial Interface Card

1 post / 0 new
Offline
Last seen: 4 years 5 months ago
Joined: Jun 22 2005 - 21:06
Asynchronous Serial Interface Card

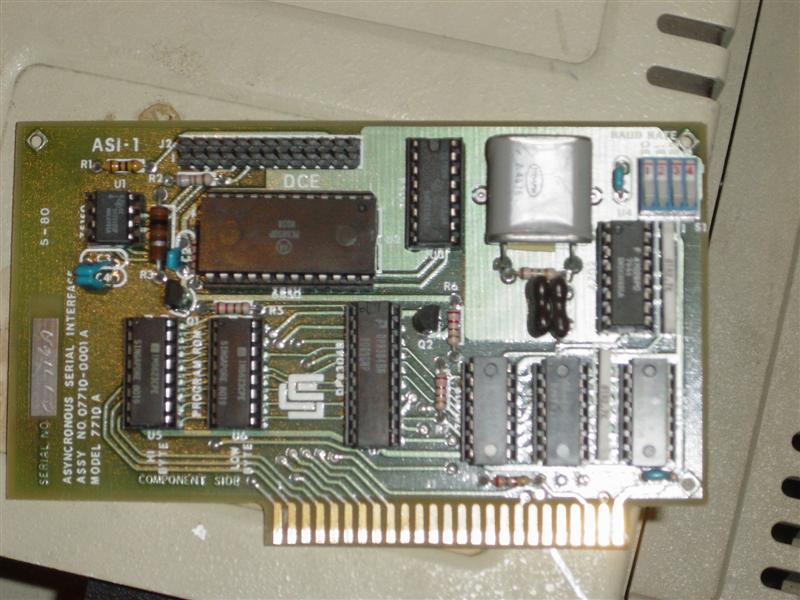

I have attached a picture of the Asynchronous Serial Interface card I am trying to get working with my Apple II Europlus: NOT FOUND: 1 I have no cable to connect to the 26 pin header labelled J2, but I am hoping it will work as an RS-232 port by just connecting a 25 core ribbon cable to a standard D-25 connector. There are 4 switches labelled "BAUD RATE" at the top right as well - If I can't get any specific information on this card, I suppose I'll just have to toggle them into various configurations and see if I can get a connection.

Thanks,
Ken
