Going nuts to identify an expansion card I picked up,

I've had this card a few days now and I can't figure out what the heck it is. The blue connector seems to be a standard floppy interface and fits into a floppy drive. I haven't tried it with a powered on II, though. I remember reading a FD controller can be burned out with the wrong drive attached, so yeah, a bit nervous about it.

All googling brings up useless links. Since I know very little about Apple II hardware (or how to work it) I thought it might be best to ask around here. Electrocution isn't on my agenda. : )

Some of the markings on card - Chatsworth data corporation (card itself), 1APA2.42 (on the large chip), sn7400n (a smaller chip nearby).

AttachmentSize

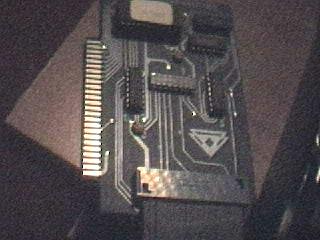

Image icon card shot 1.JPG15.25 KB

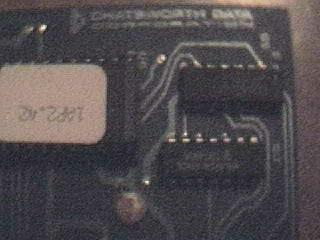

Image icon card shot 2.JPG13.48 KB
Offline
Last seen: 3 years 9 months ago
Joined: Apr 10 2006 - 20:01
Posts: 1013
Googling for: chatsworth data

Googling for: chatsworth data apple
gives me the following:

http://www.raceberryjam.com/roadsoft.html:
...Use a Chatsworth data card reader to handle huge numbers of race day entrants.

http://www.rdrop.com/~jimw/jcgm-io.shtml
...A very compact (about 5 inched square) mark-sense card reader originally released (I believe) for use with the Apple ][ computer.
As with so many things, I have the unit but no docs or interface card. If you have one laying about that you don't need...

Sounds to me like it's an interface card to a card reader of some sort. The jimw fellow sounds like he needs a card... maybe you two could strike a deal. Smile
