Apple 1 Cassette Prototype

Submitted by logjam on March 19, 2005 - 4:18pm

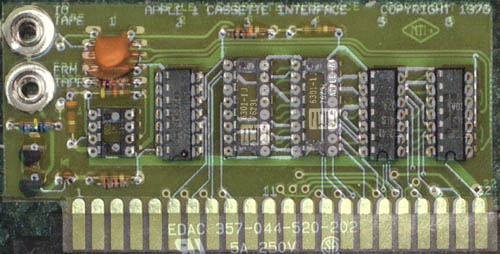

031905-Apple1CassettesMorph.jpg - A quick and dirty "Morph"...not really, I just pasted 031905-Apple1Cassette.jpg on top of 031905-Apple1RealCassette.jpg and set the Opacity on 031905-Apple1Cassette.jpg to 50%. Wink

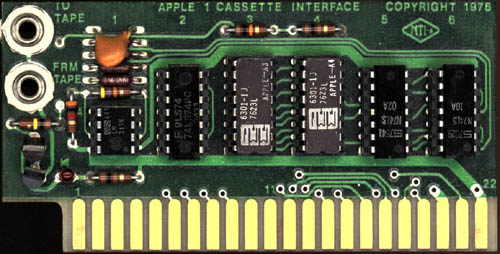

031905-Apple1RealCassette.jpg - The real Apple Cassette Interface

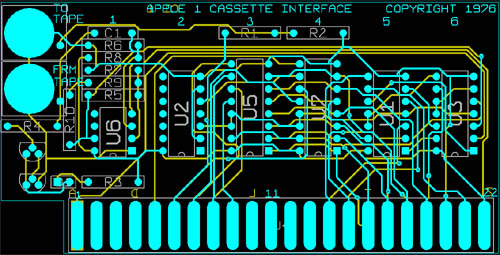

031905-Apple1CassetteBoardLayout.jpg - Screen Capture of the PCB layout...not tested yet, but it electrically tests against the schematics and Woz's notes.

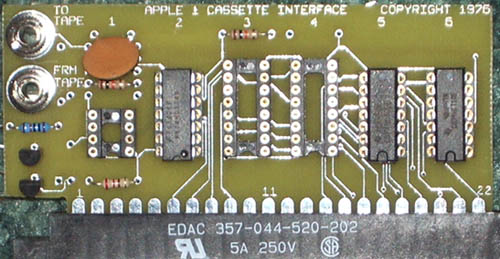

031905-Apple1Cassette.jpg - The board I had made this week, not all the components are placed yet. I also had no 10k 1% tollerance resistors.

AttachmentSize
Image icon 031905-Apple1Cassette.jpg78.76 KB
Image icon 031905-Apple1CassetteBoardLayout.jpg68.53 KB
Image icon 031905-Apple1RealCassette.jpg44.31 KB
Image icon 031905-Apple1CassettesMorph.jpg40.57 KB
Image icon 031905-Apple1Cassette.jpg78.76 KB
File Type:
Schematics, subroutines, etc.
Platform:
Apple I
Year:
2005
