Alternating characters on Apple-1
AttachmentSize
Image icon alternating characters301.19 KB

Hello everyone, I am new here and am getting desperate. I have a fully assembled Apple-1 with no additional capacitors or optimizations.

I haven't finished the "original" keyboard yet. I use the PS2 adapter or via VT100 with the Arduino/PIO adapter. With both adapters I get alternating characters on some keys. For example, with the key 2 (20202020...) or with the key . (.,.,.,.,.) I can't explain where this comes from. Basically, I have already changed everything. A friend of mine also has an Apple-1 with a similar configuration to mine and it works. Everything is also " default " at first.

Does anyone have any ideas?



-MoR33z





Offline
Last seen: 5 hours 16 min ago
Joined: Oct 9 2011 - 12:54
Posts: 1330
How long is your keyboard

How long is your keyboard cable?  I have seen weird stuff like this on longer keyboard cables with the Apple-1

Offline
Last seen: 2 days 11 hours ago
Joined: Aug 30 2021 - 05:33
Posts: 4
As i said, i use the PS2

As i said, i use the PS2 Adapter (Normal PS2 Keyboard) or the Arduino/PIA Adapter (USB->PC->Tera Term VT100). The Same problem !

Offline
Last seen: 5 hours 16 min ago
Joined: Oct 9 2011 - 12:54
Posts: 1330
I'm referencing the cable

I'm referencing the cable from the adapter to the Apple-1.  How long is that cable?

Offline
Last seen: 2 days 11 hours ago
Joined: Aug 30 2021 - 05:33
Posts: 4
OK i will check this later

OK i will check this later afternoon.

But why i have the same problmen with the Arduino/PIA adapter (USB-VT100) ?



-MoR33z

Offline
Last seen: 5 hours 16 min ago
Joined: Oct 9 2011 - 12:54
Posts: 1330
Maybe I don't understand what

Maybe I don't understand what you are saying.



Can you post a picture of each setup?



Offline
Last seen: 2 days 11 hours ago
Joined: Aug 30 2021 - 05:33
Posts: 4
Keyboard Mismatch

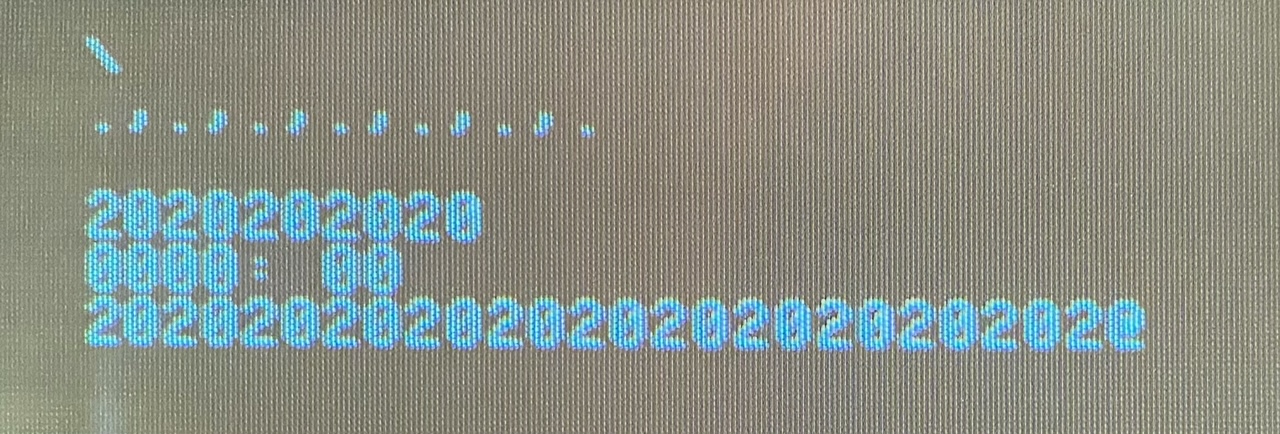

Look at my Pictures. On both options, PS2 or the USB Adapter i got the same results on the screen. 202020202 if i press the Key "2".









Offline
Last seen: 5 hours 16 min ago
Joined: Oct 9 2011 - 12:54
Posts: 1330
OK, I see what you mean about

OK, I see what you mean about the short cable, we can rule that out.  Before we dig deeper, have you tried a different 6821/6820?  Have you tried a simple plastic one?
