Apple 2 unidisk adaptor to 20 Pin IDC Disk ][ and pass through

1 post / 0 new
Offline
Last seen: 5 months 3 weeks ago
Joined: Jan 15 2023 - 22:04
Posts: 2
Apple 2 unidisk adaptor to 20 Pin IDC Disk ][ and pass through
AttachmentSize
Image icon picture of board330.38 KB

G'day,

If your like me and your apple units all have Unidisk DB19 Plugs, it is annoying trying to work with 3 party devices or drives with 20 pin IDC connectors.

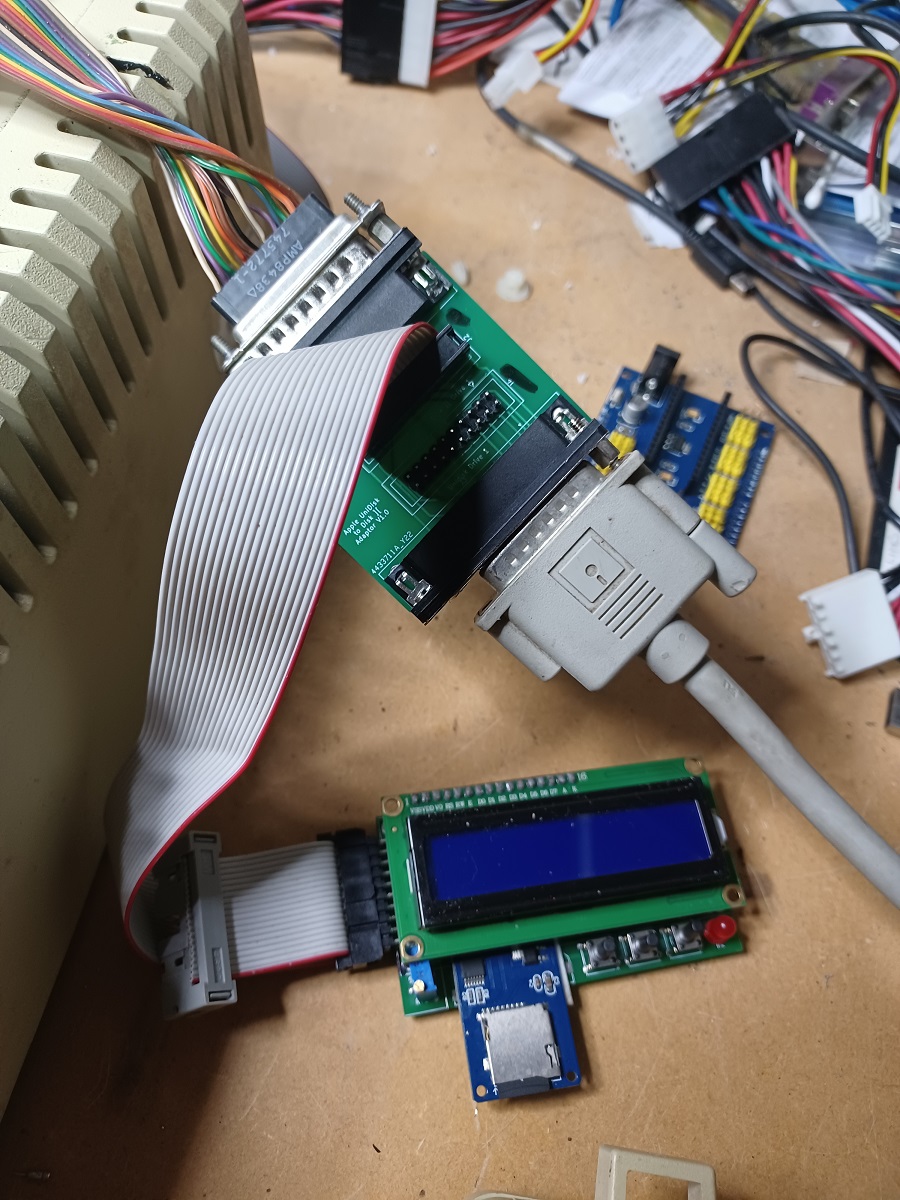

I have some SDCard readers that I want to boot off, but also some unidisk and Disc ][ devices, so I have designed this and placed it on github if you want to make one.  It allows you to connect 2 x 20 pin devices or 1 20 pin as drive 0 (SD Boot) and then have your DB19 unidisk as a second drive.



please feel free to use at your own risk.  I would like someone to test with floppy emu as I don't have one.



Regard Paul in Australia.



https://github.com/pocoaust/Apple-ii-unidisk-adaptor
