Hi,

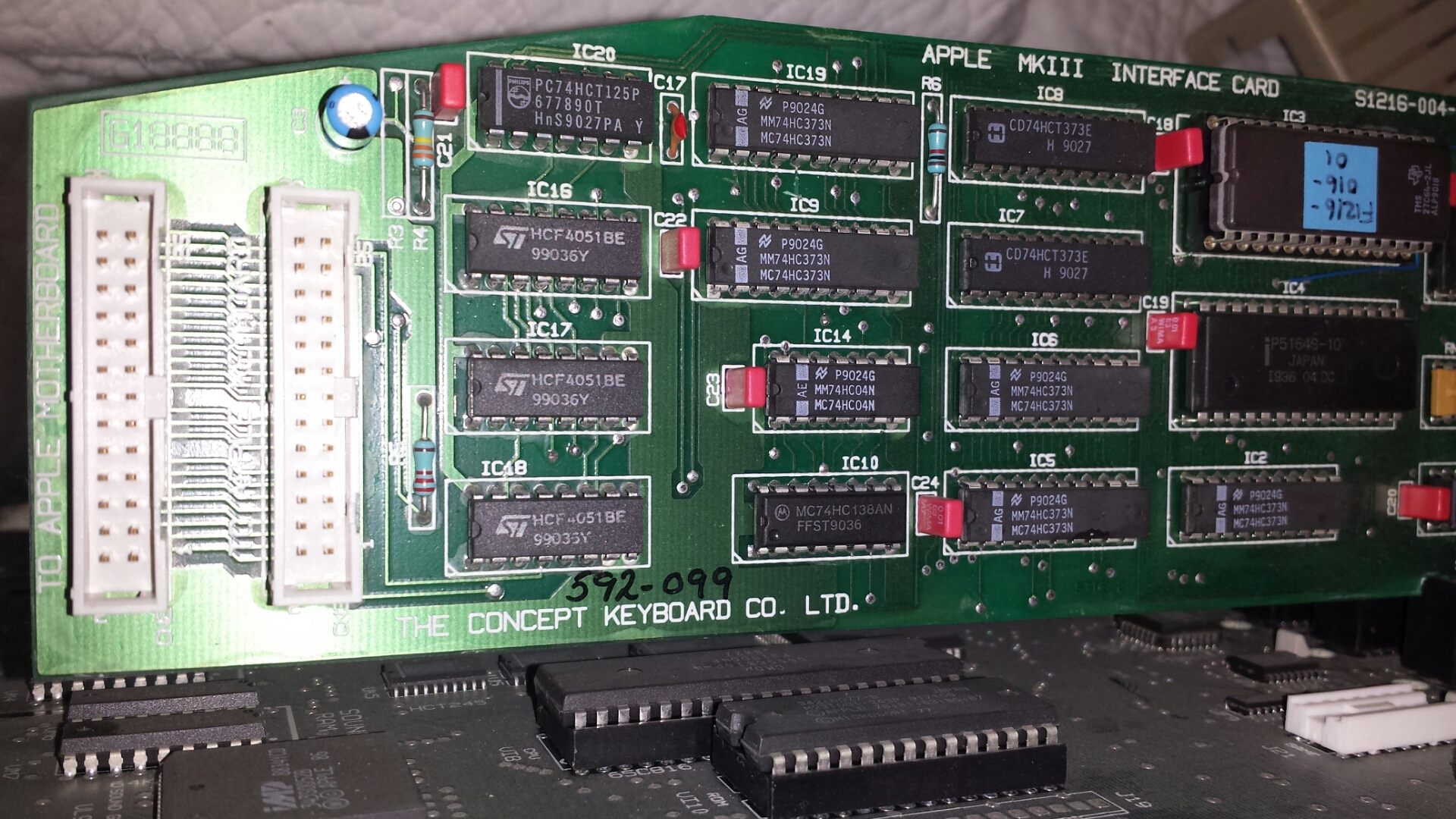

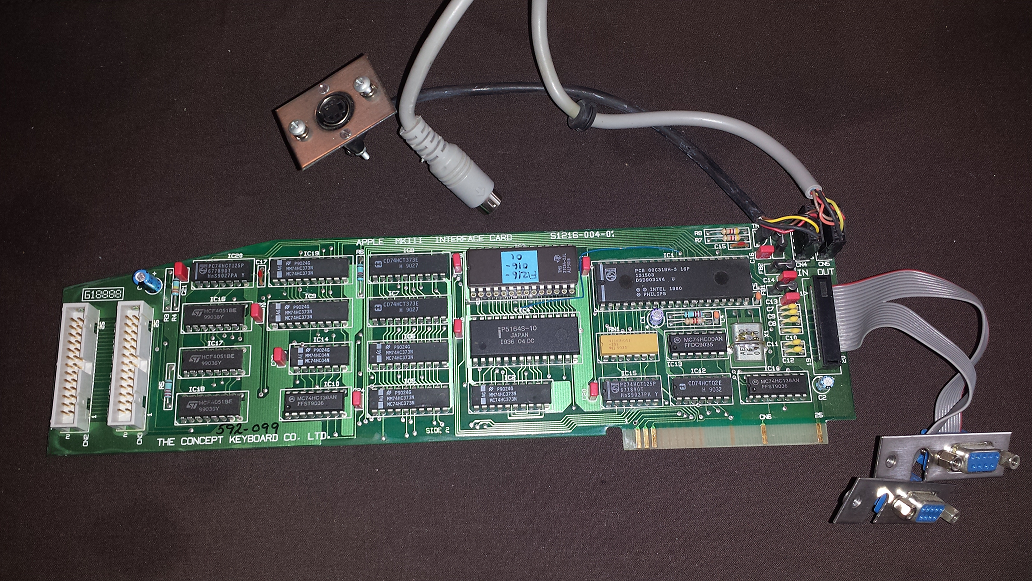

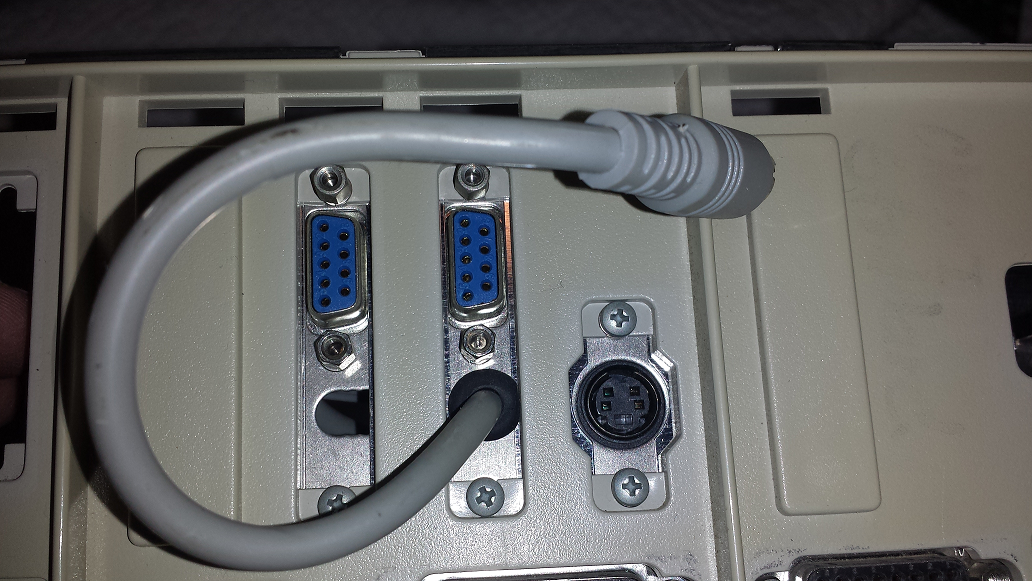

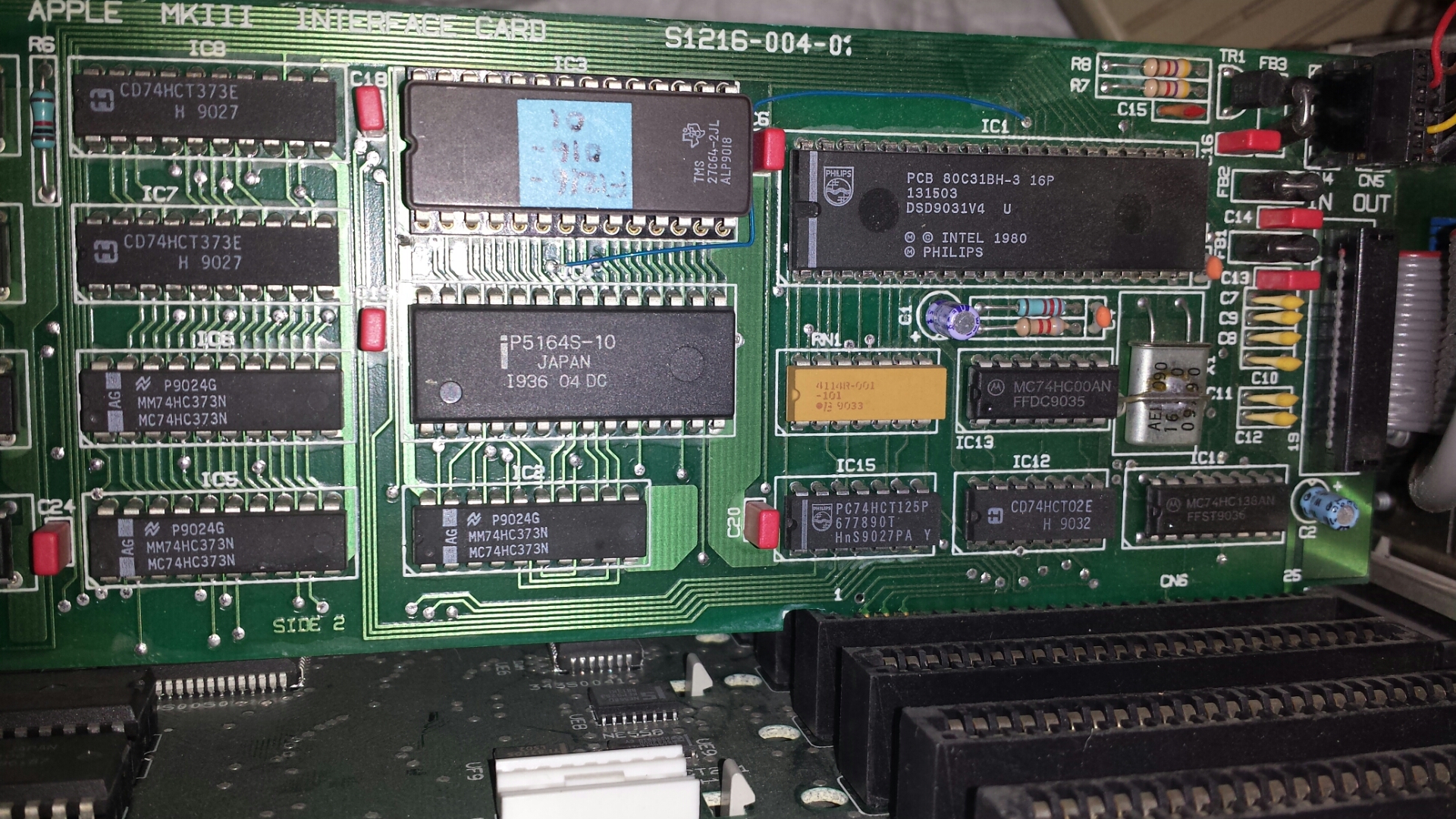

I have this Apple MKIII Interface Card by The Concept Keyboard Co. Ltd that came in an Apple IIgs that I bought sometime ago. I've tried to google it, but couldn't find any information about this card. Does anyone know what it is for and what are the different connectors that it has. I'm attaching a few pictures of it.
Thanks,
Ricardo
I found the following description that seems to fit what that card looks like. I don't know if I'm on the right track or not, but from what I know a "concept keyboard" (overlay keyboard) matches this description pretty well.
DISCONTINUED. (Verified 06/2008) RETAINED IN DATABASE FOR REFERENCE. Concept Keyboards are expanded membrane keyboards. Keyboard features include: one to 256 user-definable key areas, ability to assign up to 128 characters to each key, ability to use another standard or alternative keyboard while the Concept is active, and positive light-touch cells over the entire matrix. Overlays for the unit are included. The Concept Keyboard comes with a user manual, overlay manager software, interface card (Apple version only), connecting cables, and five custom overlays for $495.00 (Apple versions) or $595.00 (IBM version). A package that includes two keyboards and 10 overlays is available for $ 865.00 (Apple) or $1,145.00 (IBM). COMPATIBILITY: For use on Apple IIe, Apple IIc, Apple IIGS, and IBM PC computers. DIMENSIONS: Keyboard measures 11.75 x 9.25 x 1.25 inches; overlays are 8.5 x 11 inches. WEIGHT: 2 pounds. WARRANTY: 12 month warranty.
Here is the link where I found the above information:
http://www.abledata.com/product/concept-keyboard
I understand the difficulty finding information about the less common cards in old Apples I have a Clear Light Superstar Card that came in my IIe that I have been able to find essentially no information about. All I know is roughly what it was used for.
Good luck with your search.
