Crazy Demonic ][+ with a mind of it's own

This problem has gotten progressively worse. It happens with and without the keyboard attached. I've tried reseating chips but nothing seems to have made a difference.

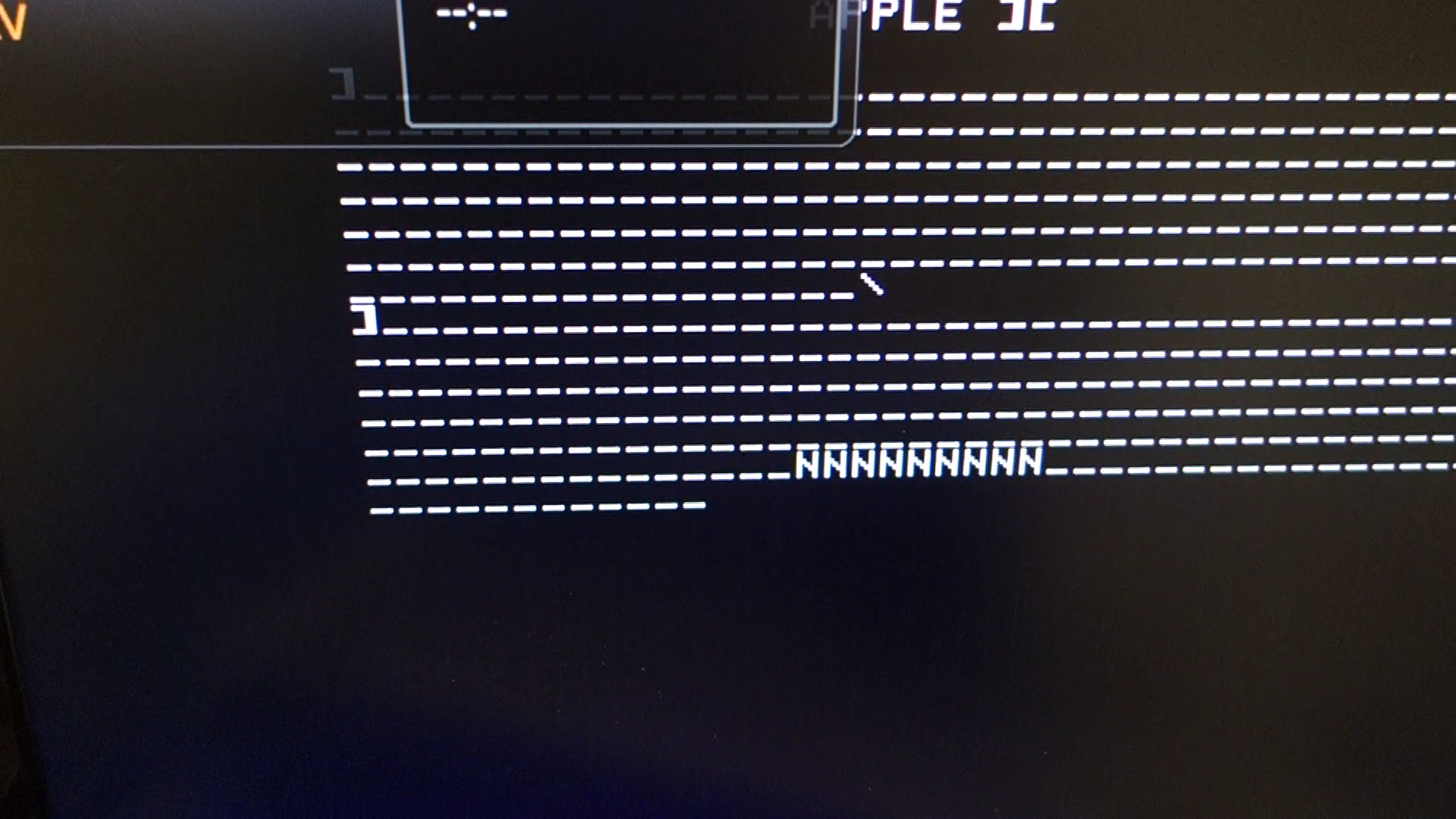

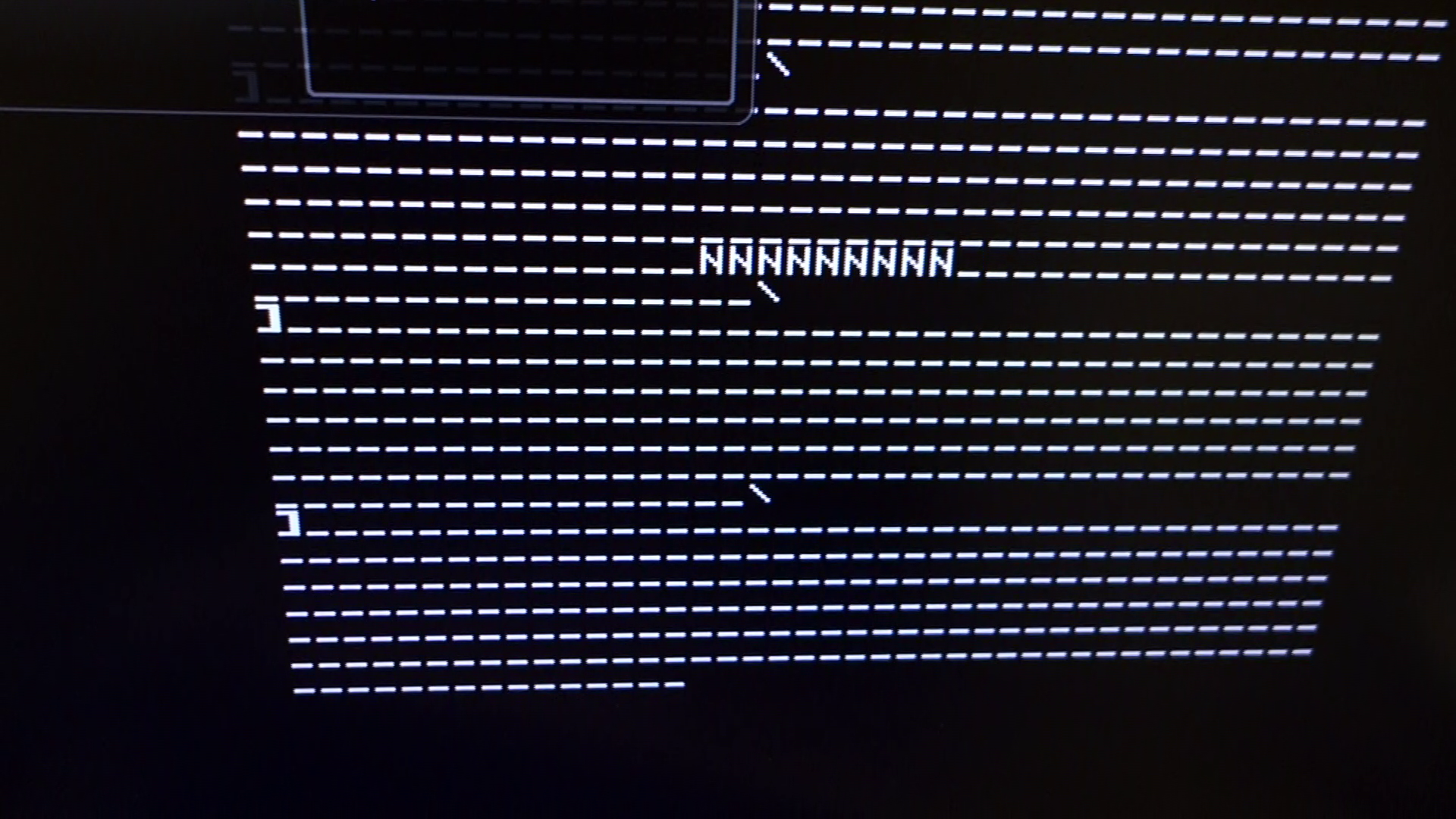

Basically it types a paragraph of random (but uniform) letters then seems to hit return all by itself.

All the time it's doing this, it's beeping an awful lot, like an Apple possessed!

I can interrupt the mayhem intermittently with keypresses, but it continues to repeat the letter e.g. QQQQQQQQQQQQQQWWWWWWWWWWWWWWWWWWWEEEEEEEEEERRRRRRRRRRRR... etc

Are there any ICs I should pay special attention to?

I've searched but couldn't find an example where someone has had this exact problem.

AttachmentSize
Image icon screenshot 12.23 MB
Image icon screenshot 21.97 MB
Offline
Last seen: 2 months 2 weeks ago
Joined: May 27 2013 - 13:01
Re: Crazy Demonic ][+ with a mind of it's own

I don't know about the ii+ but if it were any other Apple ii then I would say that one of the contacts on the keys were making contact intermittently. The keyboard needs repair IMHO.

Offline
Last seen: 4 years 1 month ago
Joined: Mar 4 2014 - 18:22
Re: Crazy Demonic ][+ with a mind of it's own

I thought that initially, but this happens even with the keyboard disconnected Sad

speedyG's picture
Offline
Last seen: 1 hour 14 min ago
Joined: Nov 16 2011 - 07:45
Re: Crazy Demonic ][+ with a mind of it's own

Such behaviour is normally related to the strobe and the AKS ( Acknowledge Keystroke )
the related chips are located at the row B and at position B2 ( NE555 ) B3 ( 74LS00 ) and B4 ( 74LS00 )
on mainboard.
all 3 chips together would cost less than 2 Dollars in local electronic shop or electronic shop at ebay
... replace all 3 and the trouble should vanish...

sincerely speedyG

Offline
Last seen: 4 years 1 month ago
Joined: Mar 4 2014 - 18:22
Re: Crazy Demonic ][+ with a mind of it's own

Thank you! I'll purchase those or see if I have some in another working machine and test it out Smile

Offline
Last seen: 4 months 1 week ago
Joined: Oct 9 2013 - 19:33
Re: Crazy Demonic ][+ with a mind of it's own

By the way, the "hitting return by itself" is simply reaching the 256 character limit and starting with a new prompt. Besides that I had no clue till Speedy gave you the lowdown! Biggrin
Zan

Offline
Last seen: 2 months 2 weeks ago
Joined: May 27 2013 - 13:01
Re: Crazy Demonic ][+ with a mind of it's own

Looks like Speedy has given instructions on how to banish a demon.

whscullin's picture
Offline
Last seen: 2 years 8 months ago
Joined: May 27 2013 - 14:44
Re: Crazy Demonic ][+ with a mind of it's own

Related, the beeping is probably Applesoft telling you you are approaching the 255 character limit.

Offline
Last seen: 4 years 1 month ago
Joined: Mar 4 2014 - 18:22
Re: Crazy Demonic ][+ with a mind of it's own

Thanks for all the help and suggestions guys, I got hold of the correct ICs as recommended by SpeedyG and sure enough, the madness has ceased!
