Imac G4 Green Tint on the Screen

Hi all,

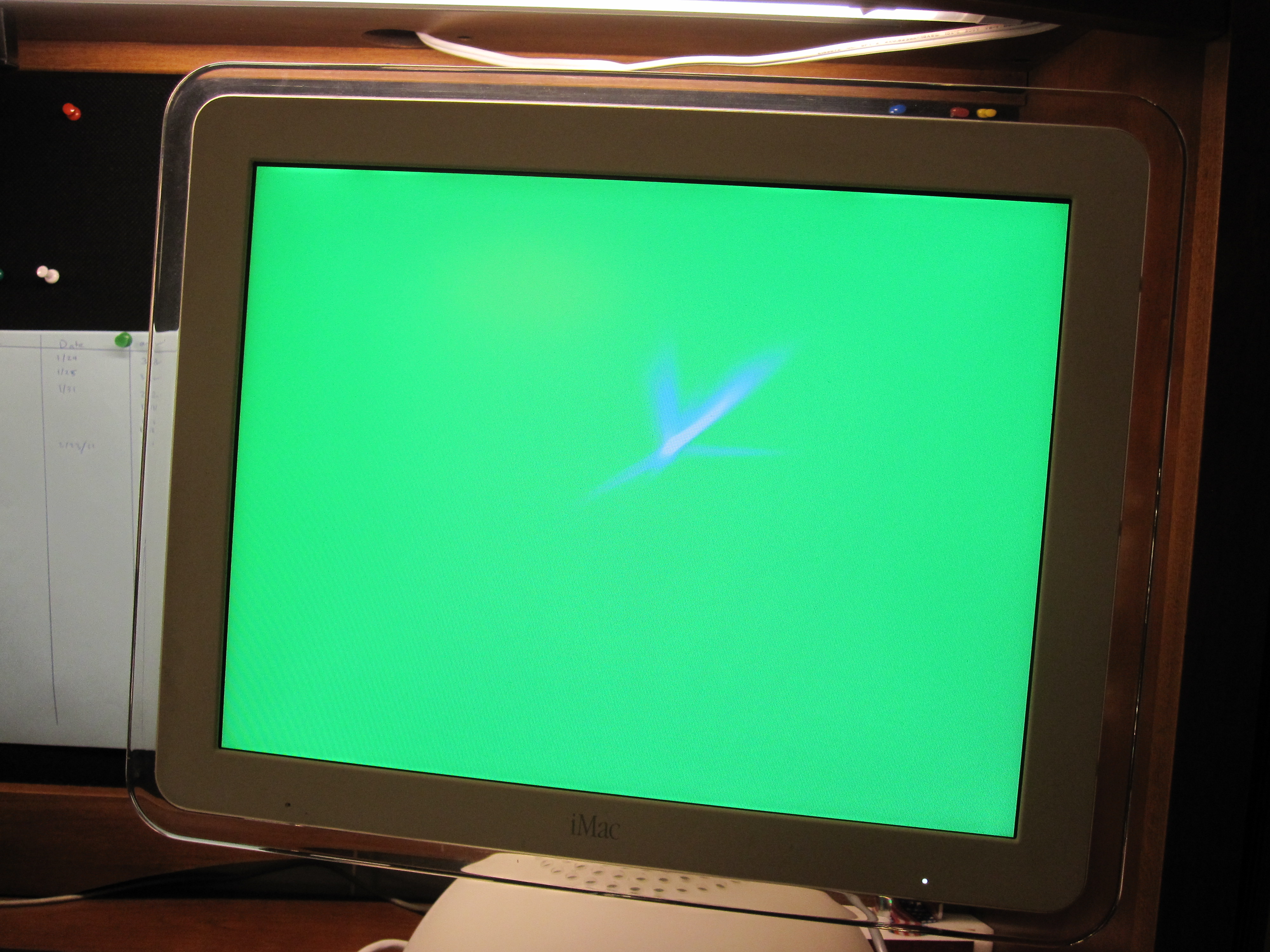

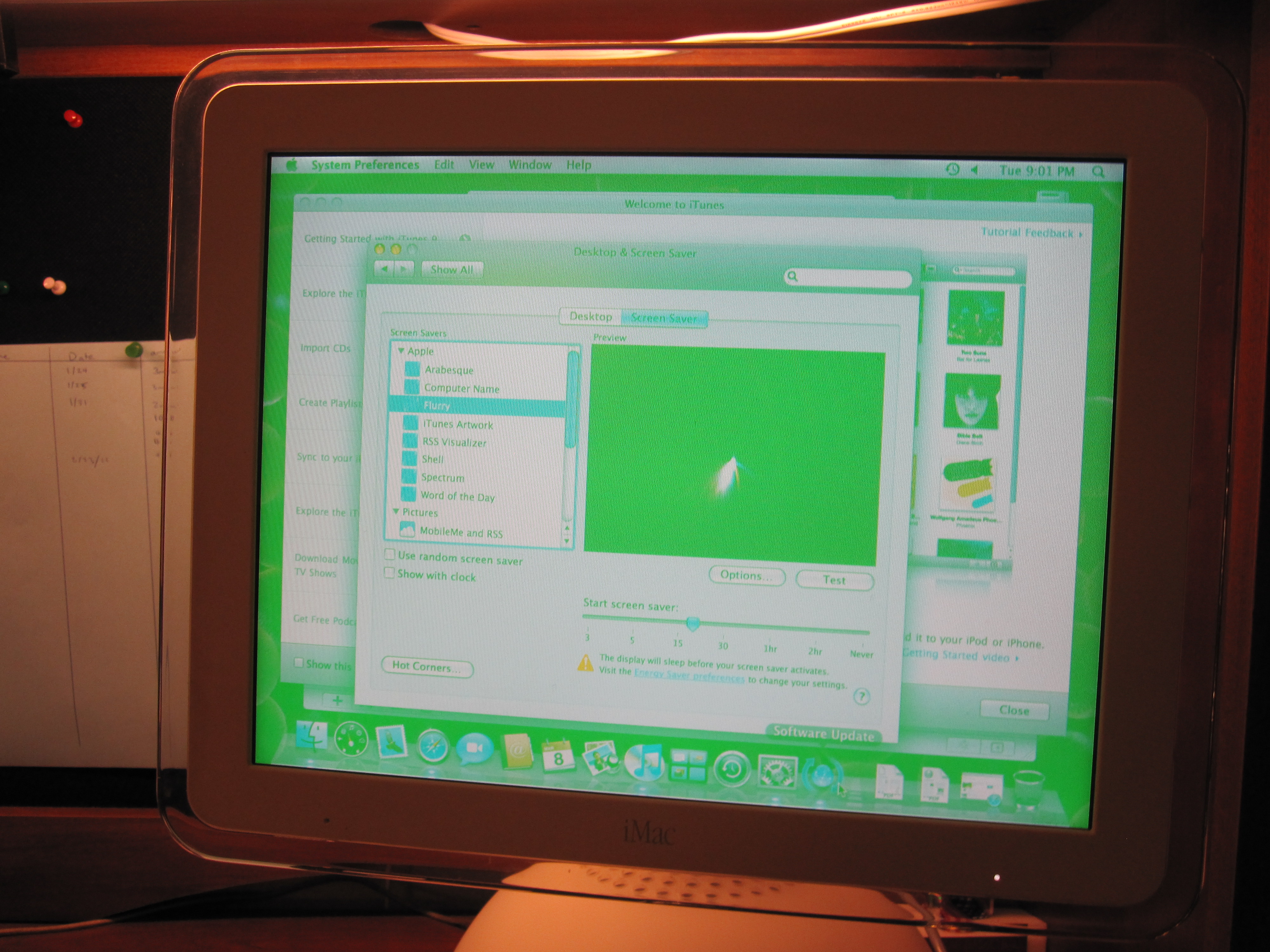

I just got a imac g4 flat screen that has a green tint on the screen. I have tried dissembling it and reseated the monitor connections. There was no difference, I hooked up an external monitor which has normal color.

So I believe the video card is good, but I don't know what the problem is with the monitor and what kind of fix might be needed.

http://www.applefritter.com/files/IMG_5116_0.jpg
http://www.applefritter.com/files/IMG_5117.jpg

:mac:

AttachmentSize
Image icon IMG_5116.jpg2.81 MB
Image icon IMG_5116.jpg2.81 MB
Image icon IMG_5117.jpg2.92 MB
misterk85's picture
Offline
Last seen: 5 years 7 months ago
Joined: Apr 29 2010 - 14:38
Posts: 52
Re: Imac G4 Green Tint on the Screen

I've had issues with laptops and LCD panels doing something similar. Usually it's a tiny ribbon cable from the main interface circuit to the LCD display panel itself. If a regular monitor works fine but it's not on the LCD panel, then the video card should be fine. Maybe it's bad wires running to the panel itself?

eeun's picture
Offline
Last seen: 1 month 3 weeks ago
Joined: Dec 19 2003 - 17:34
Posts: 1891
Re: Imac G4 Green Tint on the Screen

The internal video connector on the G4 iMac is very fragile. It's surface mount, and doesn't take much to damage it.

I'd start there, and work your way up the neck, since external video is working for you.

robbo007's picture
Offline
Last seen: 1 week 5 days ago
Joined: Dec 14 2011 - 06:39
Posts: 92
I'd definity say its the

I'd definity say its the cable. When I dismanteld mine to upgrade the ram on the mainboard when I put it back together I acidently pinched the video cable. Has the same green tint now. I could of kicked myself :(



Any ideas if I can respice the cable or something?I gather the cable is composed of the folliwing, lots of little cables then with a metal mesh around them, then plastic covering? Does the metal mesh do anything? Or is it shielding.

Tom Owad's picture
Online
Last seen: 30 min 51 sec ago
Joined: Dec 16 2003 - 15:14
Posts: 2903
You're correct that the mesh

You're correct that the mesh is shielding, but I wouldn't call that 'not doing anything'. It's also grounded, so if your pinch shorted a cable to the mesh, that could be your problem. Can you see the damage to your cable? Can you protect or reinforce the damaged area?

robbo007's picture
Offline
Last seen: 1 week 5 days ago
Joined: Dec 14 2011 - 06:39
Posts: 92
Yes, I can see the damage to

Yes, I can see the damage to the cable. I pinched some of the little cabes clumped inside. Should I strip the plastic back to try and protect them again?  I'll try and take a photo to show you what I mean before stipping ant plastic.

robbo007's picture
Offline
Last seen: 1 week 5 days ago
Joined: Dec 14 2011 - 06:39
Posts: 92
Here the photo:

Here the photo:

Tom Owad's picture
Online
Last seen: 30 min 51 sec ago
Joined: Dec 16 2003 - 15:14
Posts: 2903
I would strip back and try to

I would strip back and try to repair the damaged individual cables. I don' think you have any other option, aside from buying a whole new cable.
