What is this
AttachmentSize

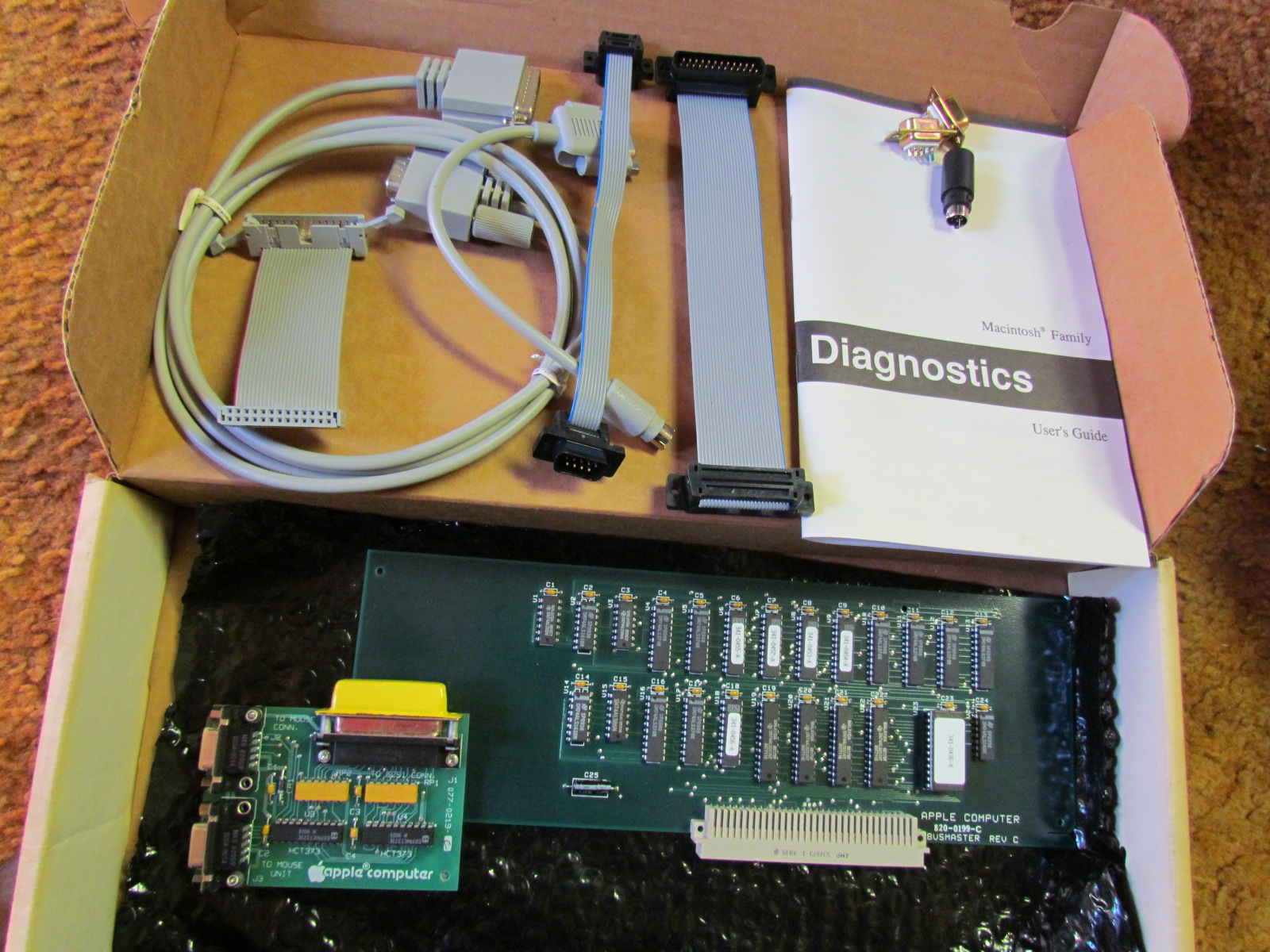

Image icon What is this.JPG588.88 KB

Used
Macintosh Family
Diagnostics
Dated Mac 1986 on small board.

stynx's picture
Offline
Last seen: 2 days 11 hours ago
Joined: Apr 19 2012 - 09:41
Posts: 213
Re: What is this

As the manual/handbook describes, the cards were used to test the Macintosh for correct function.

There was a Software that would be run on a Mac (II) that would run different tests with the various cables/boards attached.
The test software would then give some codes or even info on what part of the hardware was defective.

These are of little to no use nowadays. I have some complete Diagnostic kits that were officially given to mac repair centers by Apple.
The later Kits would have a standalone 'handheld' device that ran the tests without a second machine.

-Jonas

Offline
Last seen: 9 months 4 weeks ago
Joined: Jul 1 2015 - 10:30
Posts: 25
Re: What is this

Giday Jonas
Thanks
David
