Aamber Pegasus - Unknown phono jacks

Submitted by ex-parrot on February 6, 2004 - 9:20pm

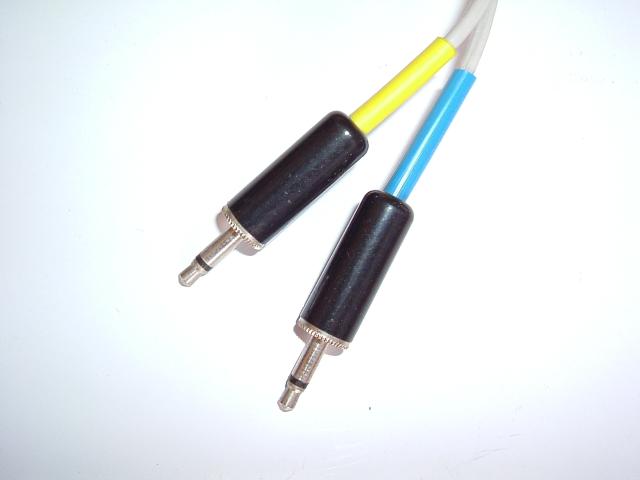

These are some phono jacks which plug in to a header on the board. I assume they're for connecting to a tape drive.

Image:
