Apple //c startup problems

8 posts / 0 new
Last post
Offline
Last seen: 8 years 8 months ago
Joined: Apr 16 2010 - 17:49
Posts: 9
Apple //c startup problems
AttachmentSize
Image icon DSCN2189.JPG118.07 KB

hi all im new here

i recently dug out my apple //c and wanted to feel that nostalgic rush. the //c is not working however. here is what happens.

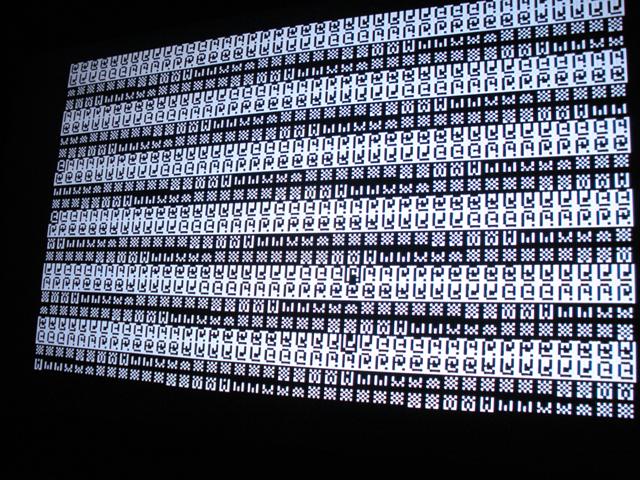

when i flip the power switch there is garbage on the screen. i try pressing the white apple key,control, and reset keys and it seems to make the image change in very minor ways. turning the power off then on again sometimes changes the screen where all the characters are jittering. see it in the attachment

when i flip the power switch there is no beeping. i know there supposed to be one beep at least. also the power light stays on, but the disk access light does not light up at all like its supposed to; just as well, the internal disk drive does not spin on startup and there is no disk in the drive.

there are no peripherals connected to the computer: only the PSU and the composite video cable (not 15 pin connector) are plugged in. also i the video cable plugs into my HDTV

i have tried opening the computer and reseating the 4 chips that can be removed but the exact same problem exists. please help!

Offline
Last seen: 2 months 3 weeks ago
Joined: Dec 19 2003 - 18:53
Posts: 838
Pin Corrosion? Loose Keyboard Cable?

Before starting this or any other endeavor with electronics, discharge any static from your body (and use a anti-static wrist strap) to protect the fragile IC's, and discharge any capacitors in the circuit for your safety.

These things are old enough now that besides the remedy of reseating the IC's as you did (to correct any thermal chip creep), there can be micro oxidation on the surfaces of the pins and sockets. To remedy that you should take them apart and clean both the chips and the sockets with some anhydrous alcohol (from an electronics or chemical supply house) and a clean toothbrush. There were other bits of hardware that also use connectors such as the cable for the keyboard. These should also be cleaned and reseated.

Good luck,
Mutant_Pie

littlejohn's picture
Offline
Last seen: 1 year 8 months ago
Joined: May 18 2005 - 13:11
Posts: 114
CPU gone bad

From your description and picture, I would say the CPU has gone bad.
If you have pulled and reseated the CPU a replacement is probably in order. I have seen the same problem before and a CPU (65c02) change out fixed it back to working condition.

Offline
Last seen: 8 years 8 months ago
Joined: Apr 16 2010 - 17:49
Posts: 9
will this processor work?

im going to try and save the computer by cleaning with anhydrous alcohol first. if that does not work will this IC work as a replacement?:
http://www.westerndesigncenter.com/wdc/w65c02s-chip.cfm

thanks guys for all your help

Offline
Last seen: 8 years 8 months ago
Joined: Apr 16 2010 - 17:49
Posts: 9
will this processor work?

repost

Offline
Last seen: 9 years 8 months ago
Joined: Apr 9 2010 - 20:19
Posts: 5
I think your problem involved

I think your problem involved memory errors. Replace the chip of memory. How to you get this chips? No have idea.

Offline
Last seen: 8 years 8 months ago
Joined: Apr 16 2010 - 17:49
Posts: 9
will this processor work?

ok so memory is a possible failure. i hope not. but i still need to know if this IC will replace the processor if its bad
http://www.westerndesigncenter.com/wdc/w65c02s-chip.cfm

thanks guys

littlejohn's picture
Offline
Last seen: 1 year 8 months ago
Joined: May 18 2005 - 13:11
Posts: 114
w65c02s

Yes, direct replacement.
