JAE part#RX04-26P-SF1

Submitted by doug-doug the mighty on May 18, 2005 - 1:43pm

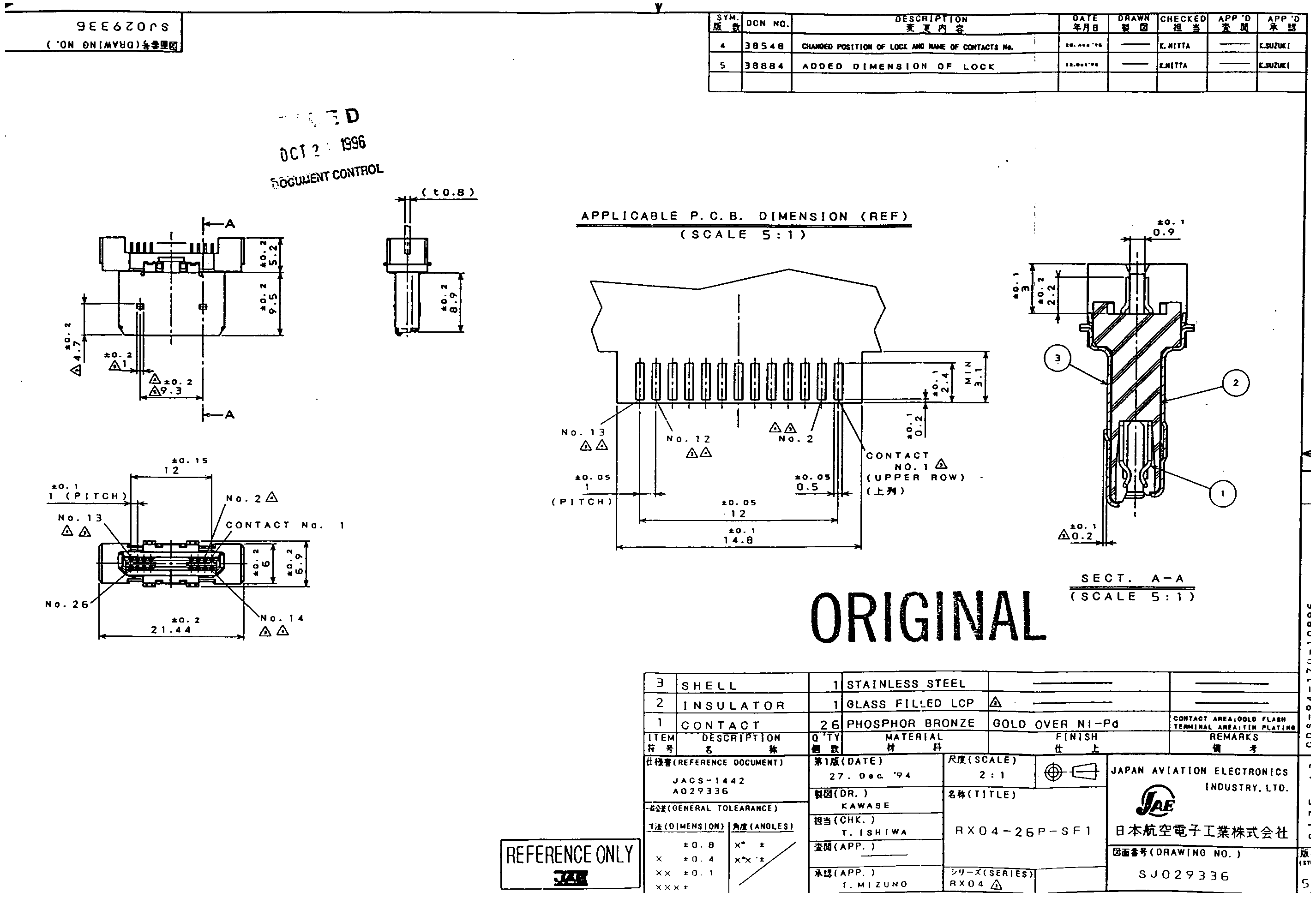

Schematic for a Newton Interconnect plug.

AttachmentSize
Image icon pluglock.gif88.75 KB
File Type:
Schematics, subroutines, etc.
Platform:
Other
Year:
1994
