Another Replica 1 (Apple 1 Replica) Custom Case

3 posts / 0 new
Last post
Offline
Last seen: 4 years 5 months ago
Joined: Jul 29 2012 - 10:04
Posts: 26
Another Replica 1 (Apple 1 Replica) Custom Case
AttachmentSize
Image icon Apple1Case603.34 KB
Image icon Apple1CaseOpen.png800.39 KB

A little under a year ago I bought a Replica 1 from Briel Computers and made a custom case similar to the originals. I included some awesome pictures below. I did however need to make some modifications, such as the opening hinged top, in order to accommodate the Replica 1's power and reset buttons, and to show off the board. The project took about a week to complete, I didn't work on it all the time however. I chose a Cherry PS2 MINI FOOTPRINT CHERRY ML4100 KEYBOARD (which you can find by clicking the title) since it was more practical than finding an affordable ASCII. I had the "Apple 1" plaque engraved at a Things Remembered store to add a little flare. I left some empty space in the case in order to allow future expansions. Feel free to ask any questions if you have them and please give me some feedback on the design, and you can see some pics of the case below.

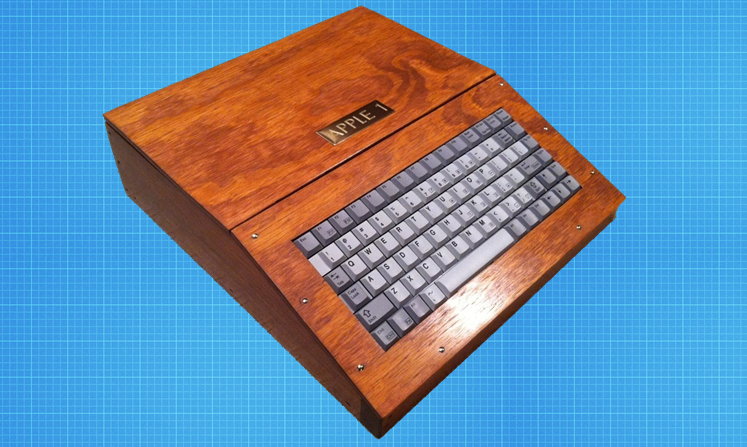

Case:
http://tylerdev.weebly.com/uploads/7/6/6/2/7662758/595570_orig.png

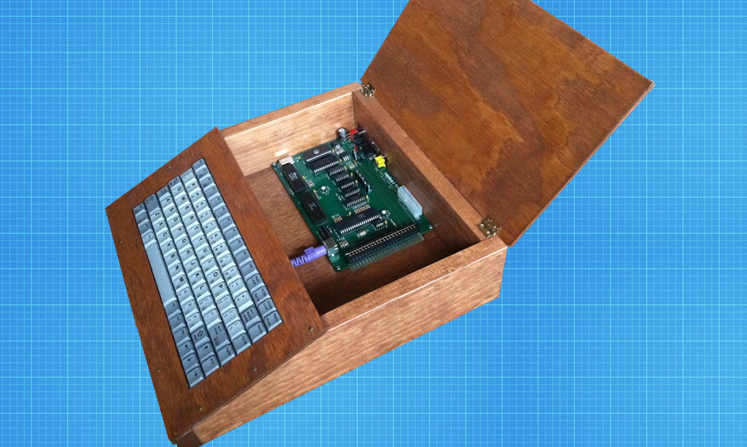

Case Open:
http://tylerdev.weebly.com/uploads/7/6/6/2/7662758/6933927_orig.png

Offline
Last seen: 1 year 1 month ago
Joined: May 27 2009 - 01:37
Posts: 1002
Re: Another Replica 1 (Apple 1 Replica) Custom Case

Shit..man.. it feels like the 70's all over again! With seemingly everyone building some form of Apple I these days. Whether it be period-correct or a modern-day remake. I bet they're loads of fun!

Offline
Last seen: 4 years 5 months ago
Joined: Jul 29 2012 - 10:04
Posts: 26
Re: Another Replica 1 (Apple 1 Replica) Custom Case

Yup they are. I'm afraid I didn't have the skillz to build the board, which is why I purchased a Replica 1, but at least I can make a cool case and write a few programs.
