Any ideas on what these are?

9 posts / 0 new
Last post
Offline
Last seen: 6 years 2 months ago
Joined: Feb 1 2011 - 12:06
Any ideas on what these are?

Ive just purchased a //e from ebay the seller mentioned 'some sort of serial card' and an unknown card, i was wondering if anyone can tell from the picture what they are, im not sure which is the 'serial card' but the description the seller gave me is it has two 25 pin connectors and what they think is a ZiLog dual serial controller chip and only have images provided by the seller, the black box card is the unknown one. any help would be great, ill upload clearer pictures when she arrives.
cheers, Charlie

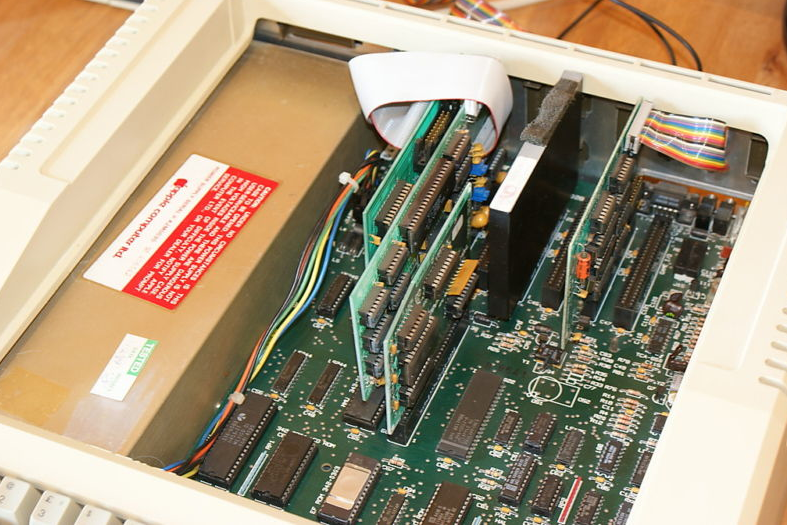

[img]http://www.applefritter.com/files/Screen shot 2011-03-27 at 22.01.33.png[/img]

UPDATE: Photos

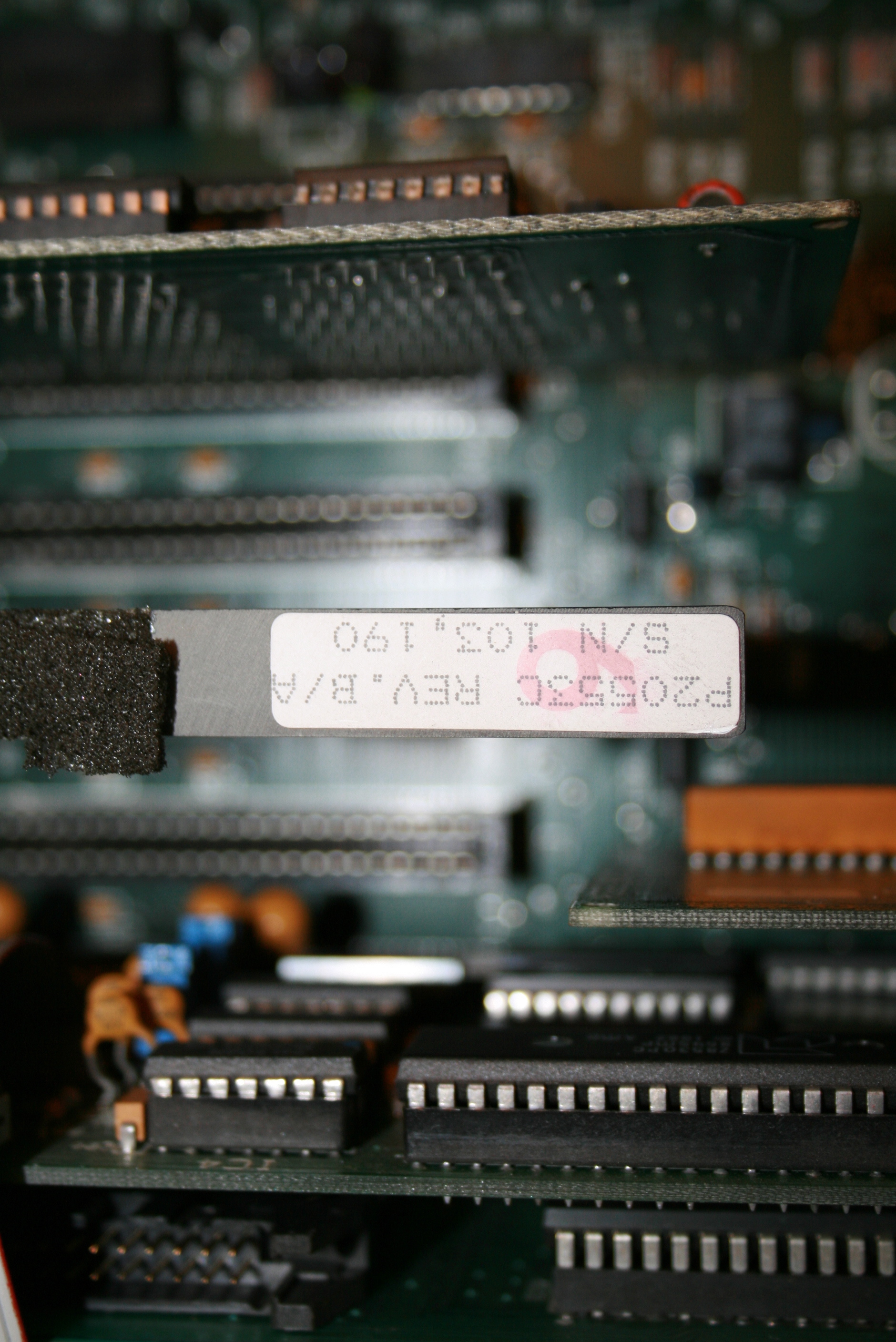

[img]http://www.applefritter.com/files/IMG_1442.jpg[\img]searched the numbers seen here, still no idea what it is.

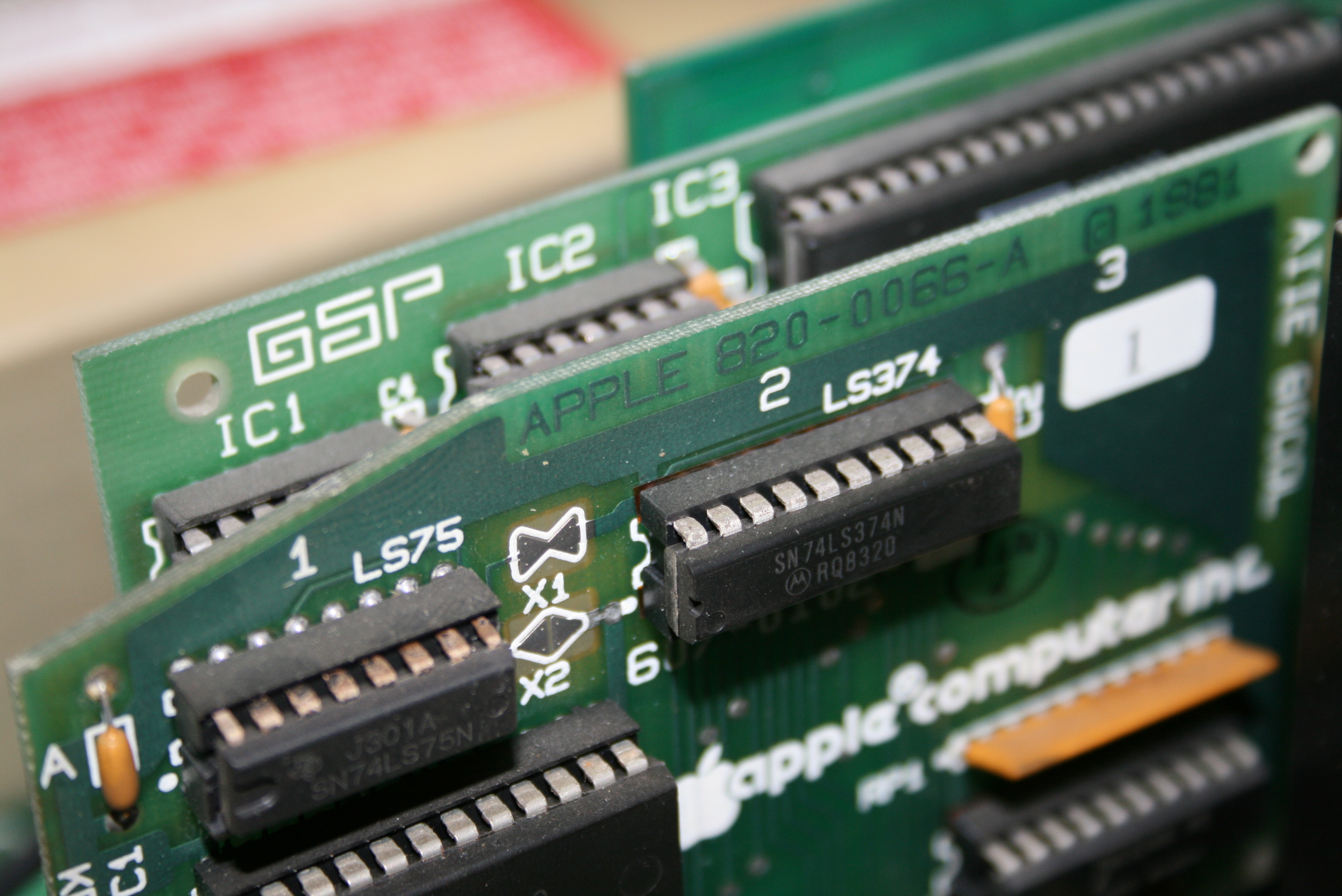

[img]http://www.applefritter.com/files/IMG_1433.JPG[\img]the 80 column card (i believe) and the 'GSP' I have been told is a Graphics Tablet Card?

AttachmentSize
Image icon Screen shot 2011-03-27 at 22.01.33.png666.68 KB
Image icon IMG_1442.jpg1.49 MB
Image icon IMG_1433.JPG1.81 MB
amauget's picture
Offline
Last seen: 2 days 11 min ago
Joined: Jan 3 2011 - 11:34
Re: Any ideas on what these are?

Hello redviper-x,

Based on both the slot numbers and the picture, here is the list of the cards :
Slot 1 : Probably a parallel card (it missed the cable)
Slot 2 : Serial card (with DB25 connector at the back I guess)
Slot 3 : 80 column card
Slot 4 : Unknow card
Slot 6 : Disk II card

When you get the machine, you can try to type PR#4 from the prompt and see what happened.
It will be very difficult to identify this card since there is no writing on it.

Offline
Last seen: 6 years 2 months ago
Joined: Feb 1 2011 - 12:06
Re: Any ideas on what these are?

thanks, when i get it ill find out more. but still it's a working //e with a disk drive, and DOS 3.3 and Pro Dos disks with it, just hoping the serial card with work with ADT Pro

Offline
Last seen: 2 years 7 months ago
Joined: Apr 10 2006 - 20:01
Re: Any ideas on what these are?

redviper-x wrote:
just hoping the serial card with work with ADT Pro

It will only work if it's hardware-compatible with Apple's SSC. It will be helpful to see a closeup of the card, but it doesn't look promising.

Offline
Last seen: 6 years 2 months ago
Joined: Feb 1 2011 - 12:06
Re: Any ideas on what these are?

if the serial card isn't compatible, i should still be able to utilise the null modem setup they describe on the ADT site?

Offline
Last seen: 2 years 7 months ago
Joined: Apr 10 2006 - 20:01
Re: Any ideas on what these are?

redviper-x wrote:
if the serial card isn't compatible, i should still be able to utilise the null modem setup they describe on the ADT site?

Well, not for ADT or ADTPro, no. They both bang on the SSC at the hardware level. Sure, you can hook a null modem to it and do some communications with it - once you learn how to talk to it (potentially through the firmware interface - i.e. PR#2/IN#2).

gsmcten's picture
Offline
Last seen: 3 weeks 4 days ago
Joined: Oct 4 2005 - 18:52
Re: Any ideas on what these are?

I could be wrong, but I remember seeing a card like the one in Slot 4 with a black box many moons ago, or reading about it. I believe that it may be a Modem. Like I said; I could be wrong. Smile

Offline
Last seen: 2 years 2 days ago
Joined: Apr 24 2011 - 14:41
Re: Any ideas on what these are?

could you post a side view of the chips it could be a pia; i/o of some kind

Offline
Last seen: 13 hours 59 min ago
Joined: May 27 2009 - 01:37
Re: Any ideas on what these are?

Give us complete pictures of the cards, front and back. Then it should be no problem.
I can also x-ray that card for you and get you a complete diagram and list of components used, including resistor and capacitor values. Complete list of TTL ?? Of course..

I built some clones of the Gibson LightPen this way.
