" Apple é° " showing-up on boot of an Italian version of un-enhanced Apple IIe

20 posts / 0 new
Last post
Offline
Last seen: 4 years 2 months ago
Joined: Aug 1 2020 - 16:09
Posts: 2
" Apple é° " showing-up on boot of an Italian version of un-enhanced Apple IIe

Hi everybody,

I recently got on the local Italian eBay a used Apple IIe (with an Apple Monitor III monitor and 2 floppy drives) because I want to enter for the first time in the magic world of this fascinating machine (the first computer my father gave me was a Commodore 64 in 1983: I was a boy, and I still remember I was looking with envy my richer friend's Apple II - it was too expensive for my family).

It's an Italian-keyboard PAL-video un-enhanched Apple IIe (plain 6502 CPU), with a Rev.A motherboard (820-0073-A) having a black "1983" printed in the left upper corner (which I don't know if it reads just as manufacturing date "year 1983" or "week 19 of year '83").

Since I have no DOS nor other software yet (I'm going to use ADTPro to that purpose) I just did very minimal test so far, limited to switch it on and running tiny, manually-entered BASIC programs. But that's ennough to get the first "strange" behaviours, which seem to be somehow linked to the Italian version of the keyboard and non-standard ASCII character set. In summary:

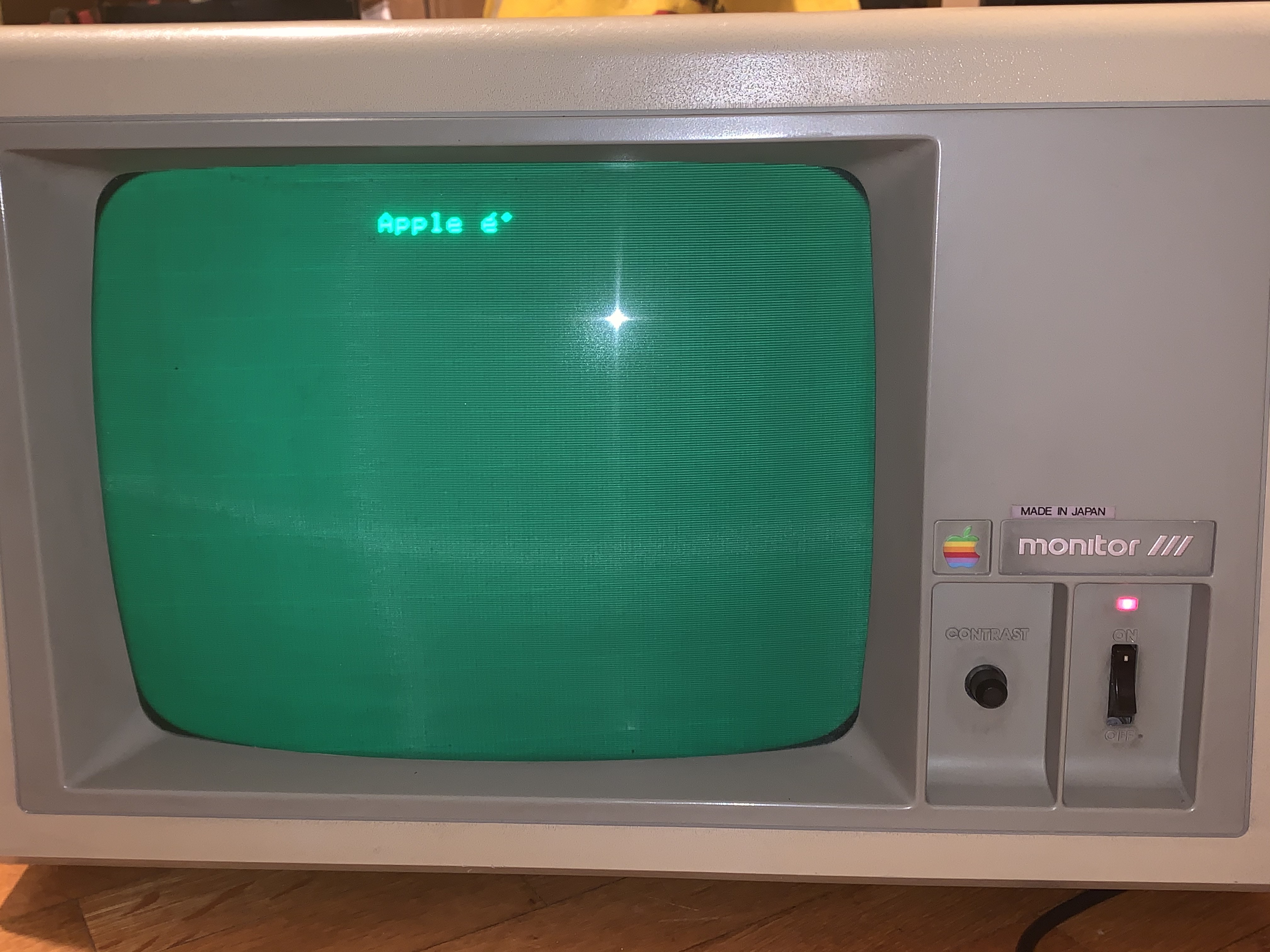

   1. on start-up, my Apple IIe shows "Apple é°" instead of "Apple ]["

  2. when I press CTRL-RESET to boot to BASIC, the prompt character shows as "é" instead of "]"

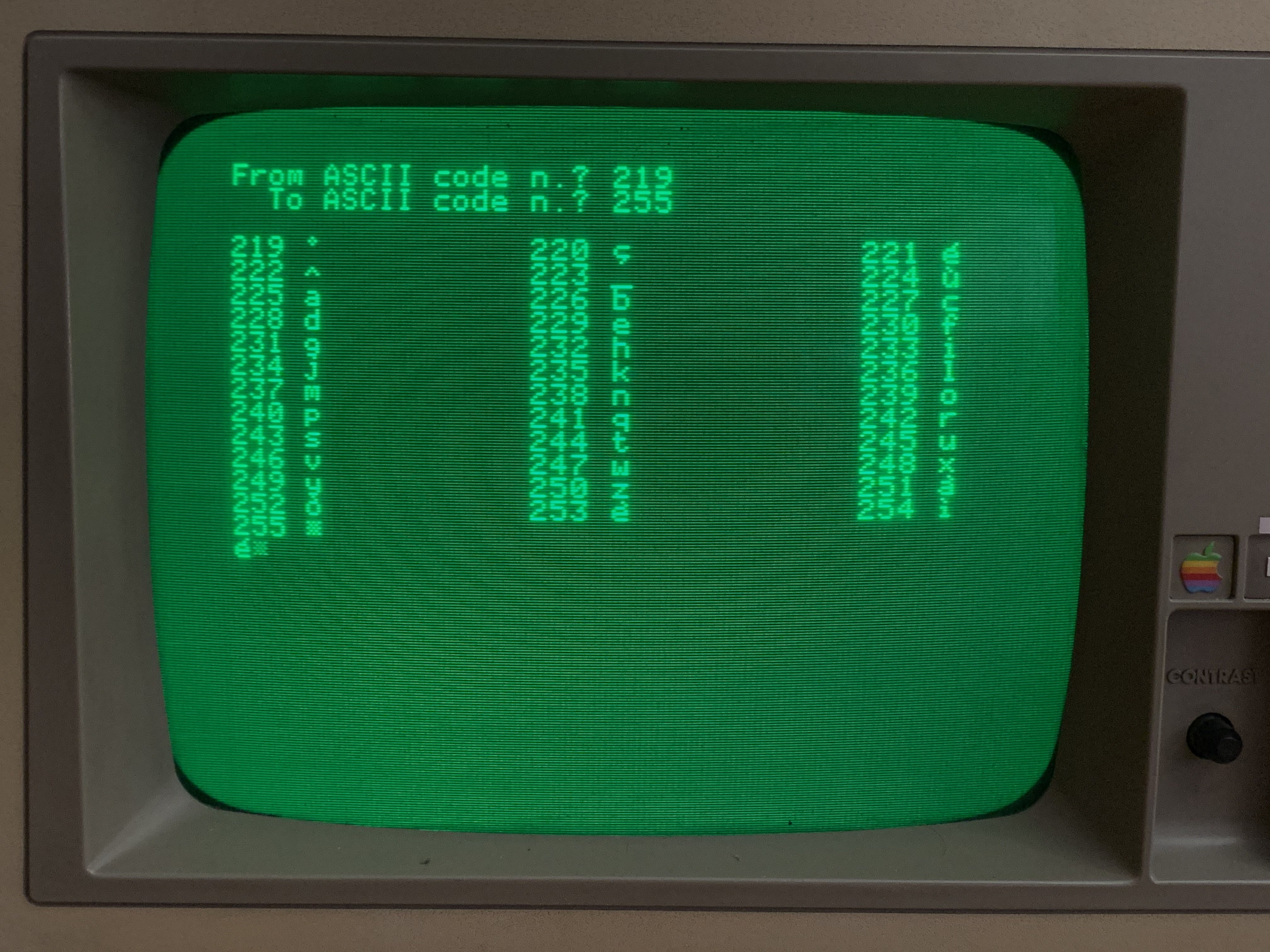

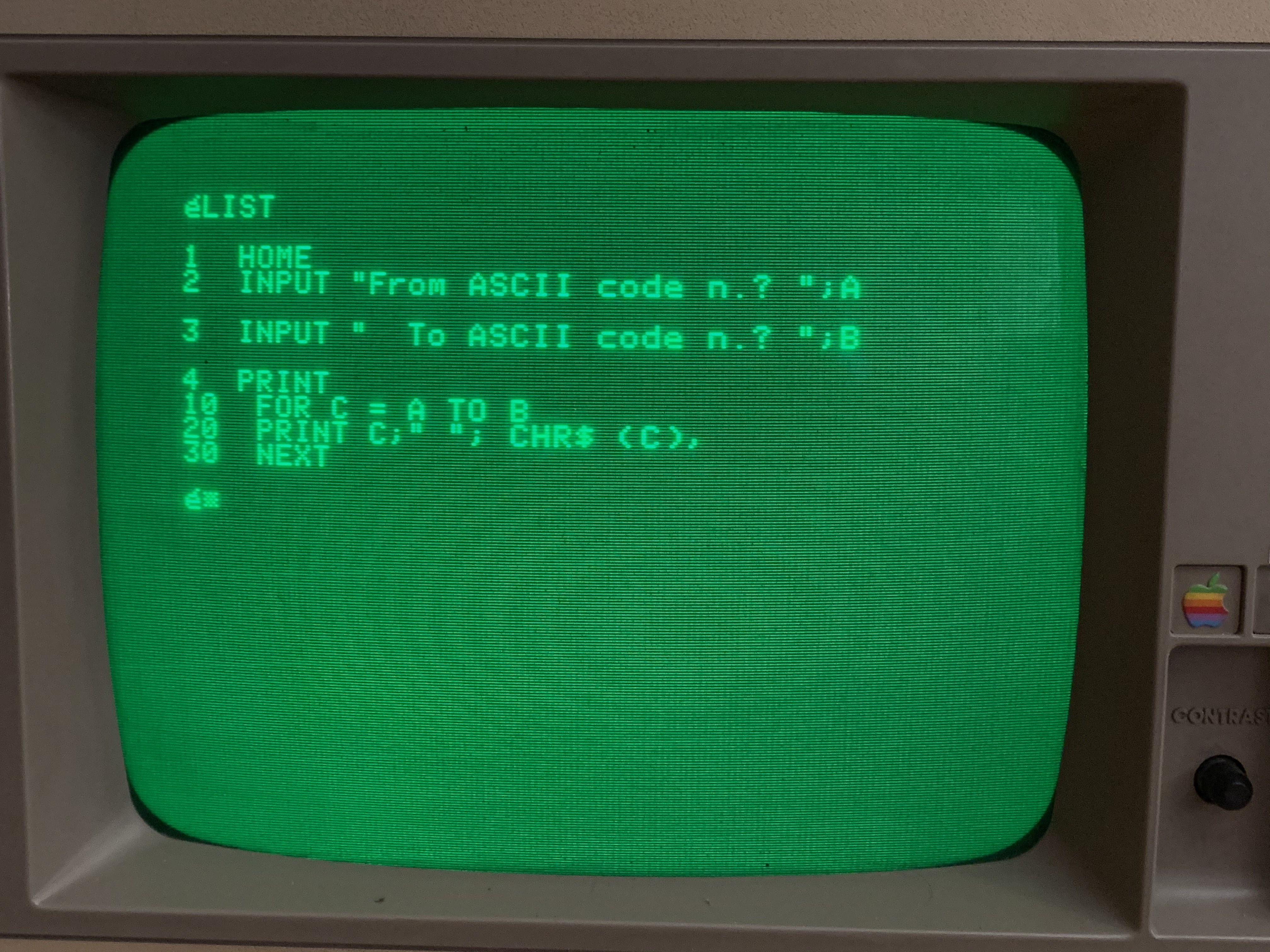

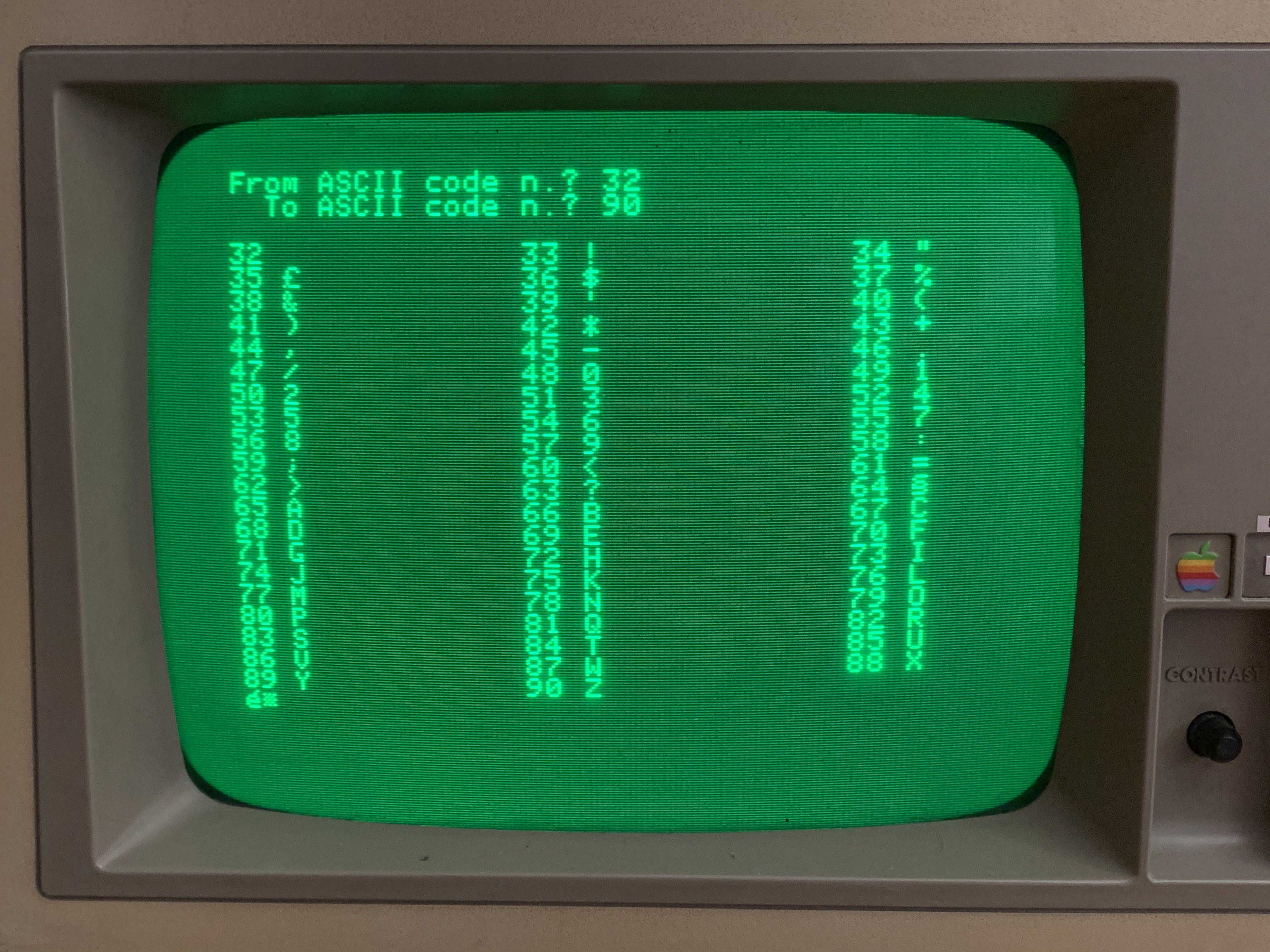

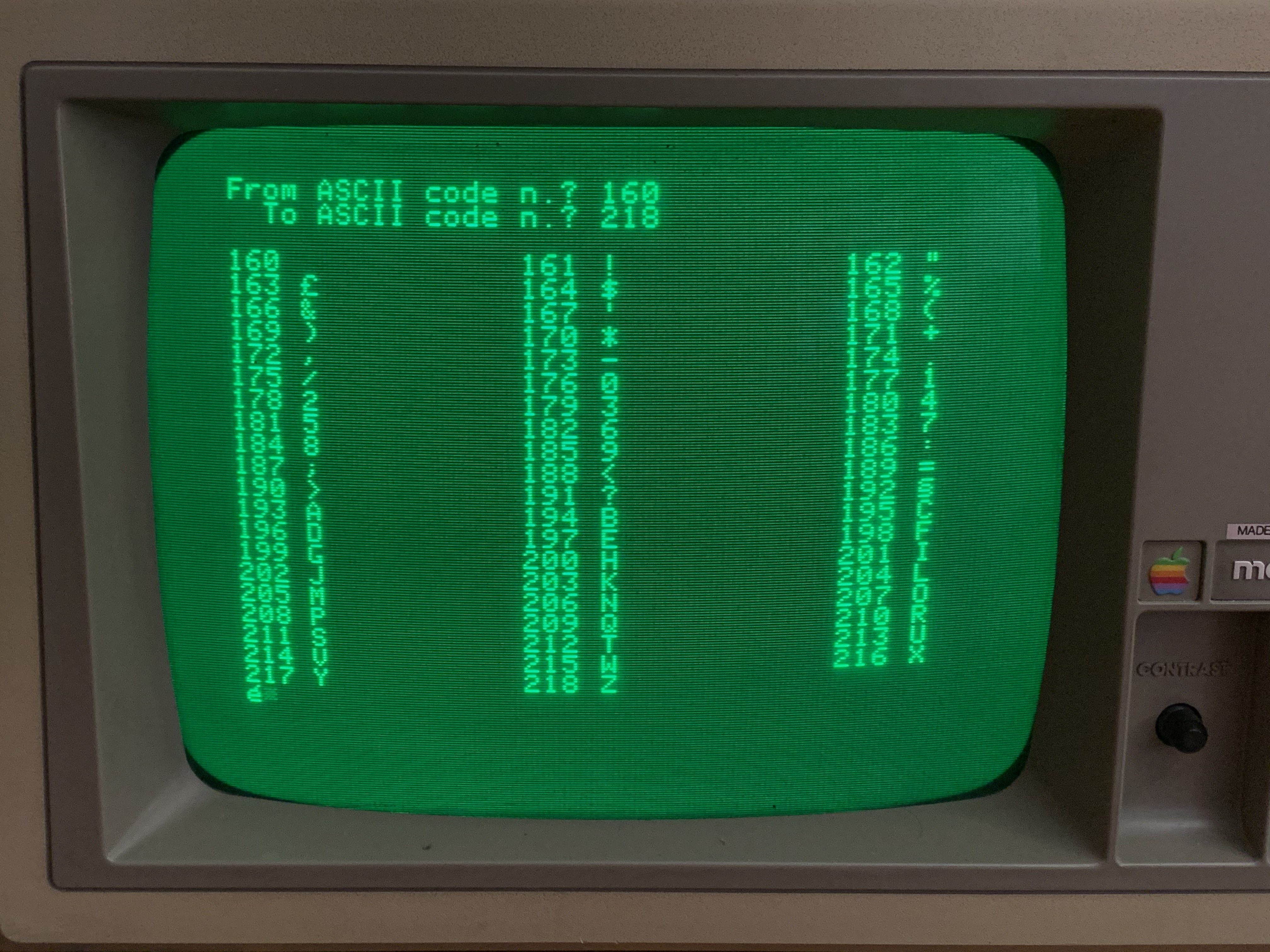

  3. using the BASIC CHR$() function to print the printable character set (codes 32-127 and 160-255) , it's evident that my Apple IIe does not have at all the [ ] characters in its default char set (not even in the upper range 128-255), and other standard US characters are missing as well, in particular:

     CHR$( 35) prints  £  instead of  #

     CHR$( 64) prints  §  instead of  @

     CHR$( 91) prints  °  instead of  [

     CHR$( 92) prints  ç  instead of  \

     CHR$( 93) prints  é  instead of  ]

     CHR$( 96) prints  ù  instead of  `

     CHR$(123) prints  à  instead of  {

     CHR$(124) prints  ò  instead of  |

     CHR$(125) prints  è  instead of  }

     CHR$(126) prints  ì  instead of  ~

     CHR$(127) prints <a checkboard-like char> instead of <DEL>

4. I didn't find any key combination (CTRL, SHIFT, APPLE keys) to output those missing characters on the screen from the BASIC prompt !Note that, apart from that, the BASIC interpreter seems to work without any particular issue.

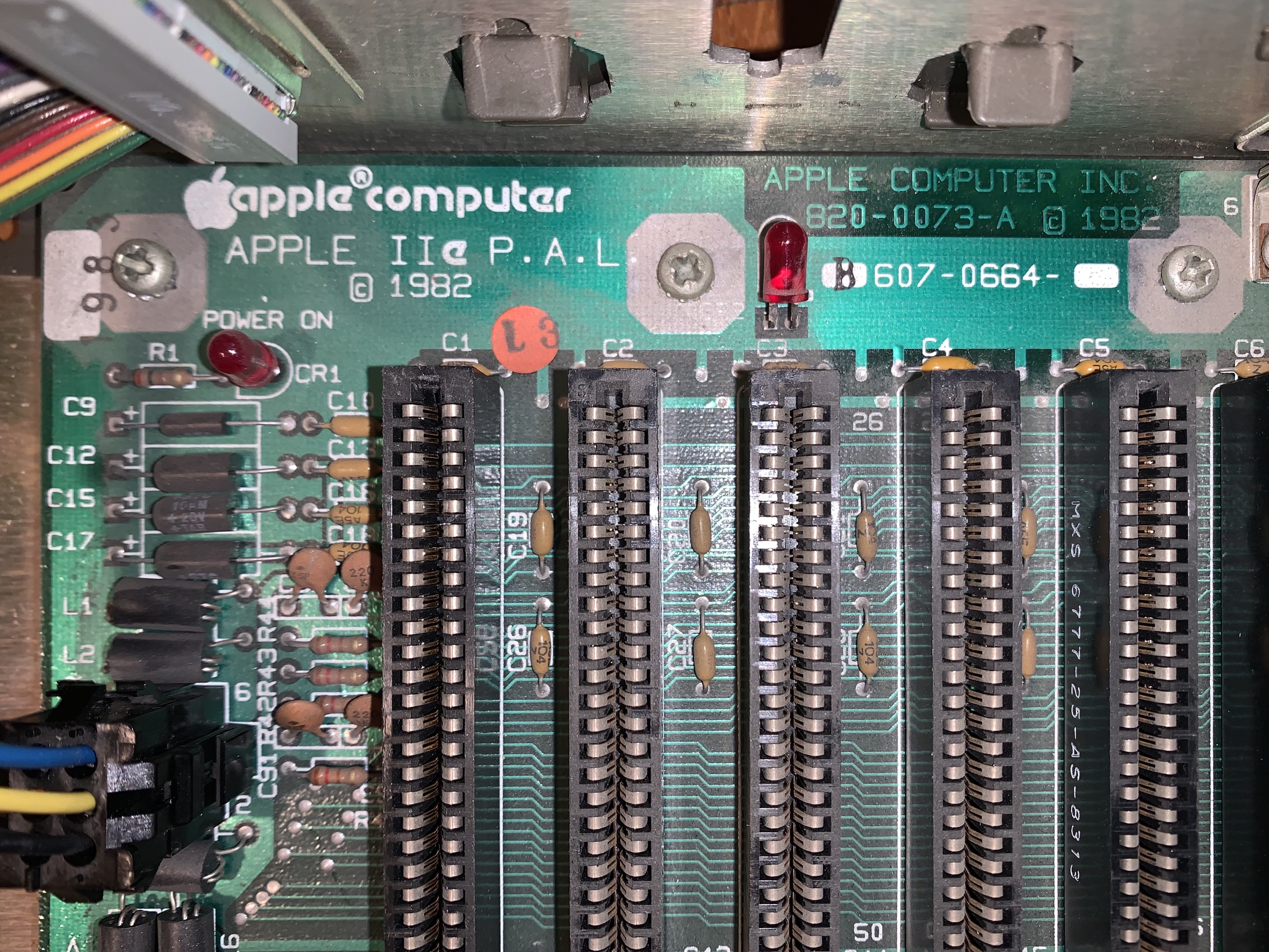

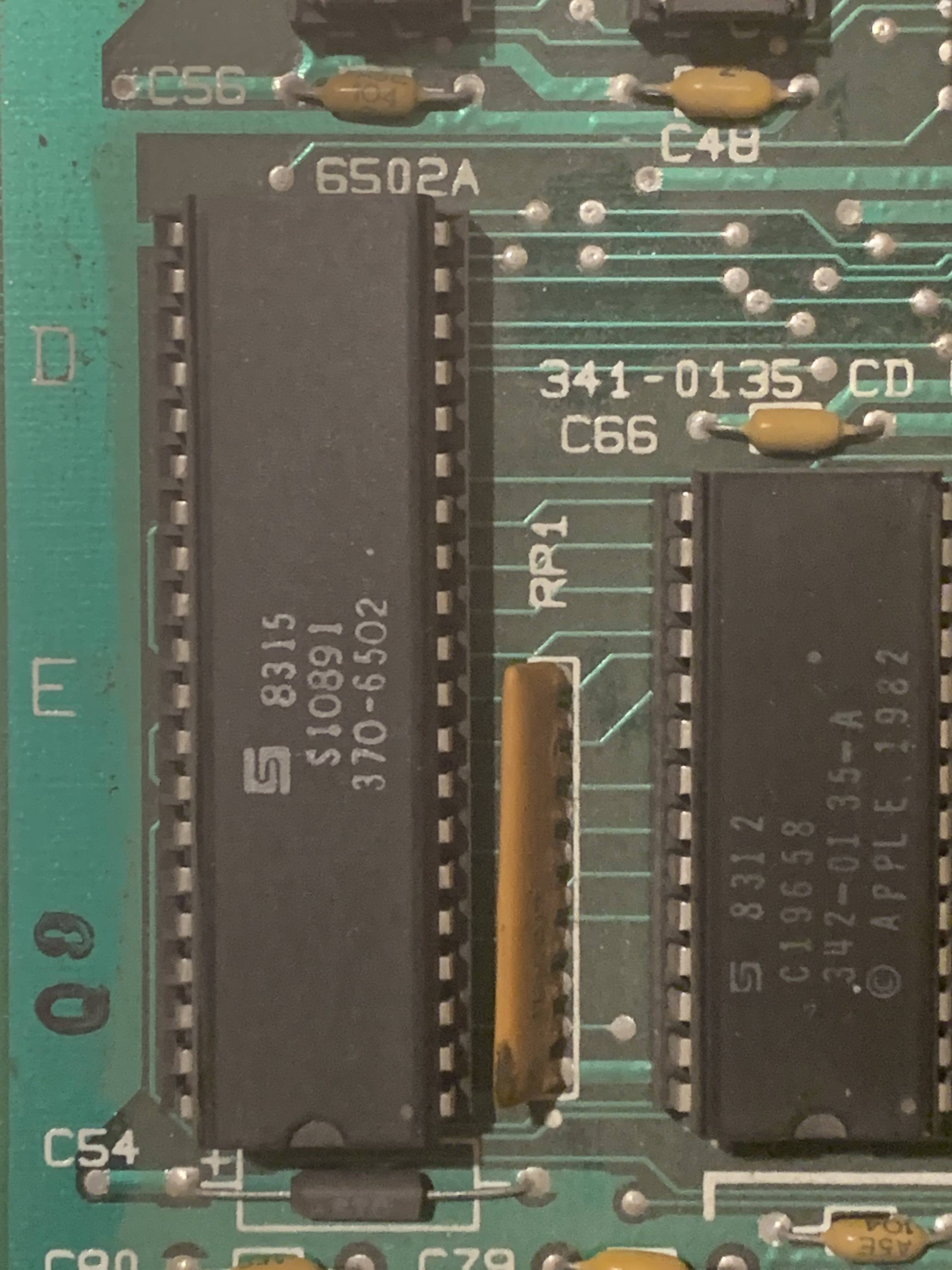

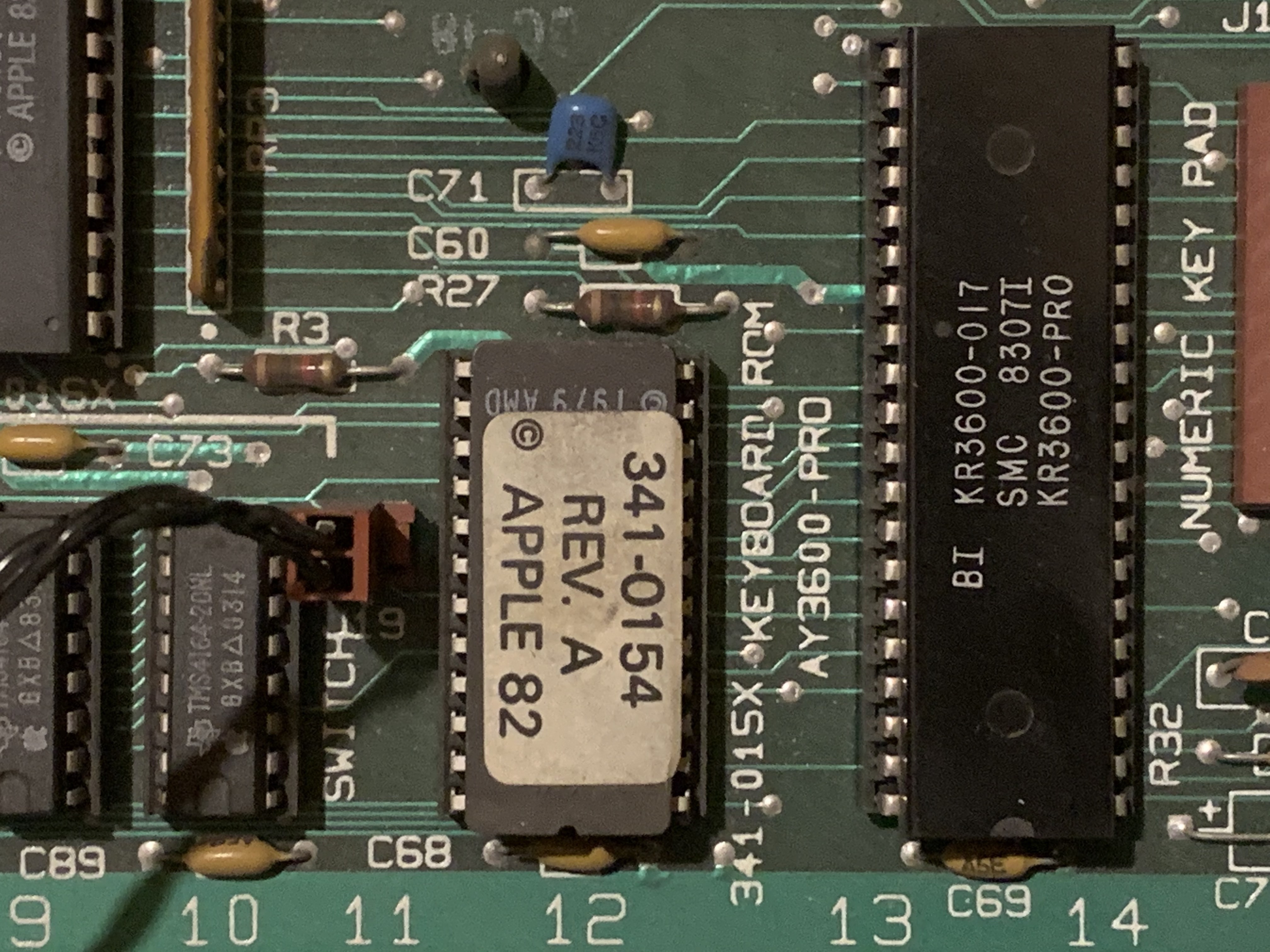

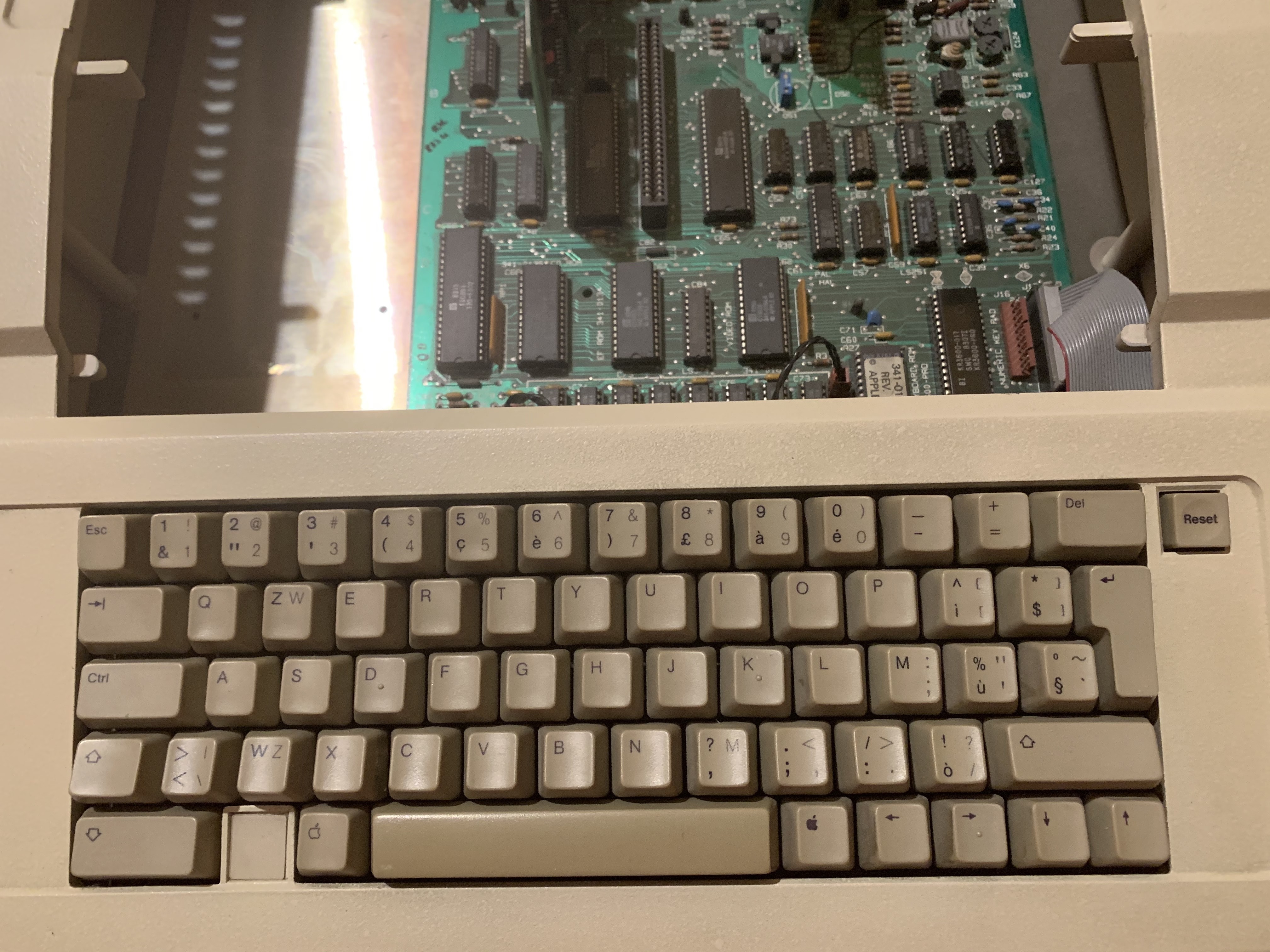

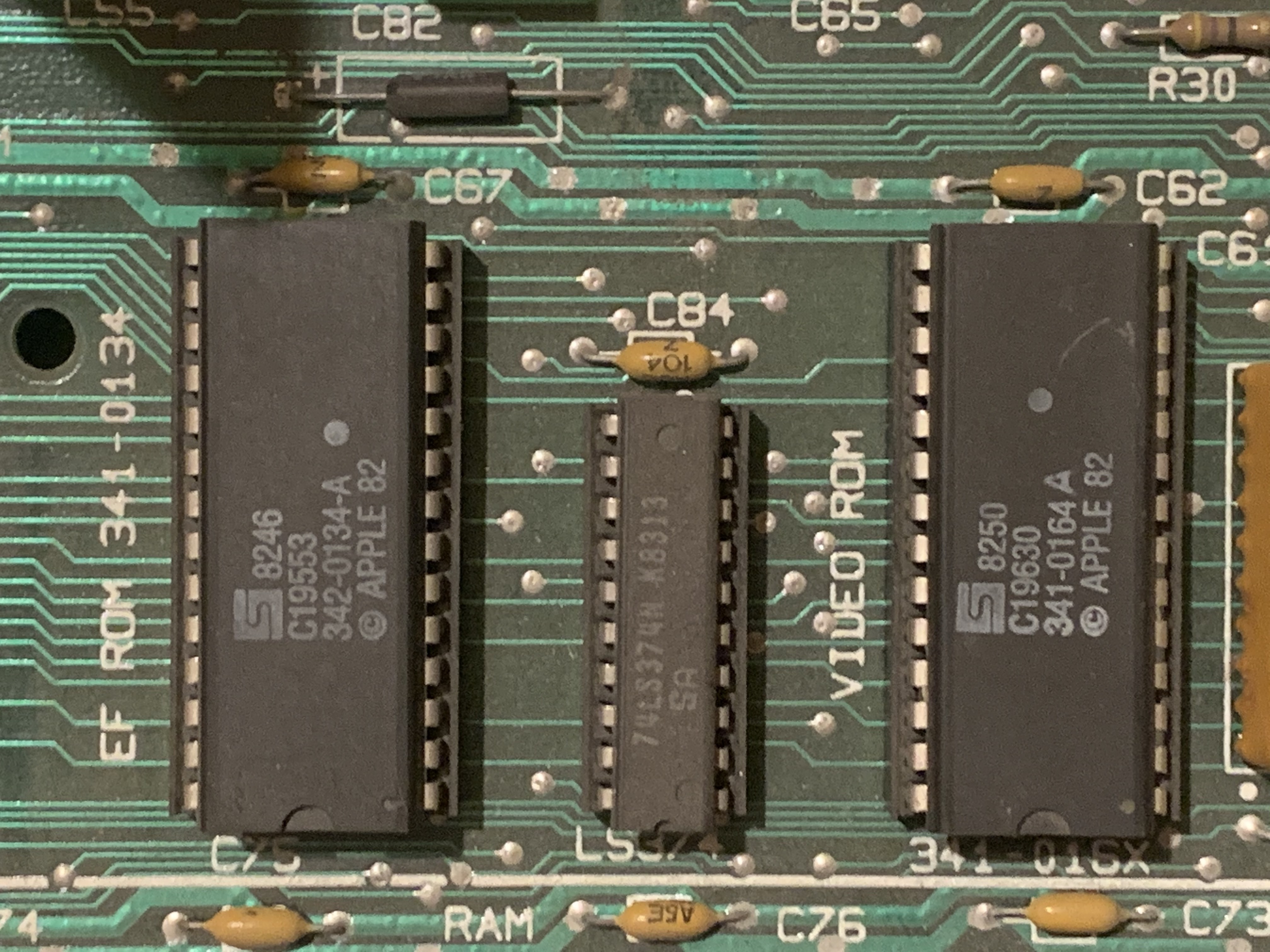

I have attached a number of pictures of my Apple IIe, showing the serial no., the keyboard, the motherboard revision, the 6502 CPU, the ROM's versions, hoping this can help you better identifying the machine model. Also in another series of pictures I show the output of the BASIC program testing charset with CHR$() function.

So, considering that I'd like to use my Apple IIe mainly for programming (Pascal, C, Logo, Fortran), where those missing US characters  characters are essential, here are my questions:

     A.  Are such "modfied charset" problems specific of my machine or is it the normal behaviour for all European versions of Apple IIe ?   It's hard for me to believe that Apple was selling machines that, when turned on for the first time out of the box, showed an ugly " Apple é° " ... people would believe Apple produced  faulty machines ...

     B. I read somewhere that some (all?) international-version Apple IIe have a switch beneath the keyboard that allows to toggle btw the international and the US charset

             https://groups.google.com/g/comp.sys.apple2/c/0XJQ0bAJo-s?pli=1

          Where exactly should I find that switch (assuming my machine has it) ?  Do I have to detach the keyboard from the case? How do I do that

    C. assuming the ROM's contain is there any software-only way to switch from the Italian to the standard US ASCII charset?

    D. would upgrading with an Enhancement kit (kit with 65C02 CPU + 3 new ROM's: CD, EF, US-Italian Video ROM) such as the following

               https://www.ebay.com/itm/203091216983

           solve this problem?

     E. if none of the above, any suggestion to solve this issue (without having to replace the entire motherboard) ?

     F. How do I backspace/delete a character  with my Italian Keyboard ?? Any attempt to use the DEL key only outputs a checkboard-like character (the one corresponding to CHR$(127) ) ...



Another couple of questions I have as an Apple II beginner - sorry to be so verbous - are related to the limitations due to my Rev.A motherboard and the un-enhanced version of the ROM's and 6502 CPU:

    G. I read that Rev.A motherboards don't support double hi-res. However, I found a forum post where they say that, on European PAL Apple IIe motherboards like mine, double hi-res should work even on Rev.A motherboards, due to different electronic circuitery:

               https://groups.google.com/g/comp.sys.apple2/c/LXB6HJTbA2k

     - can anyone confirm this is true?

      - I also read that running Double Hi-Res requires an 80-col expansion card, is that right? (I also bought one Apple 80-col/64K expansion card, ref. 607-0103, but haven't installed it yet)

      - is there a simple software way (possibly in BASIC) to test if Double Hi-Res works on one's machine?       H. Enhancement Kit : I'm wondering if this it's really worth buying it, but I don't fully understand the benefits it brings, especially considering I want to use my Apple IIe more for retro-programming rather than playing games.

    - according to your knowledge, are there relevant softwares that will ONLY run on enhanced Apple IIe ?

    - regarding CPU computing performances, does the 65C02 bring any significant advantage over the older 6502A ?



Thank you to anyone who had the patience to read through the whole post, and can help me start my Apple IIe journey !

Matteo
