Apple I AC 220v to AC 110v Converter

Hi Apple I Users,
i have a question to ask:
What kind of converter is needed to use with a 220v wall power to have an apple 1 or clone like mimeo working?
I have a 220v to 110v 100W converter can it works with the apple 1 stancor power supply?
Or what kind i need?

Thanks

AttachmentSize

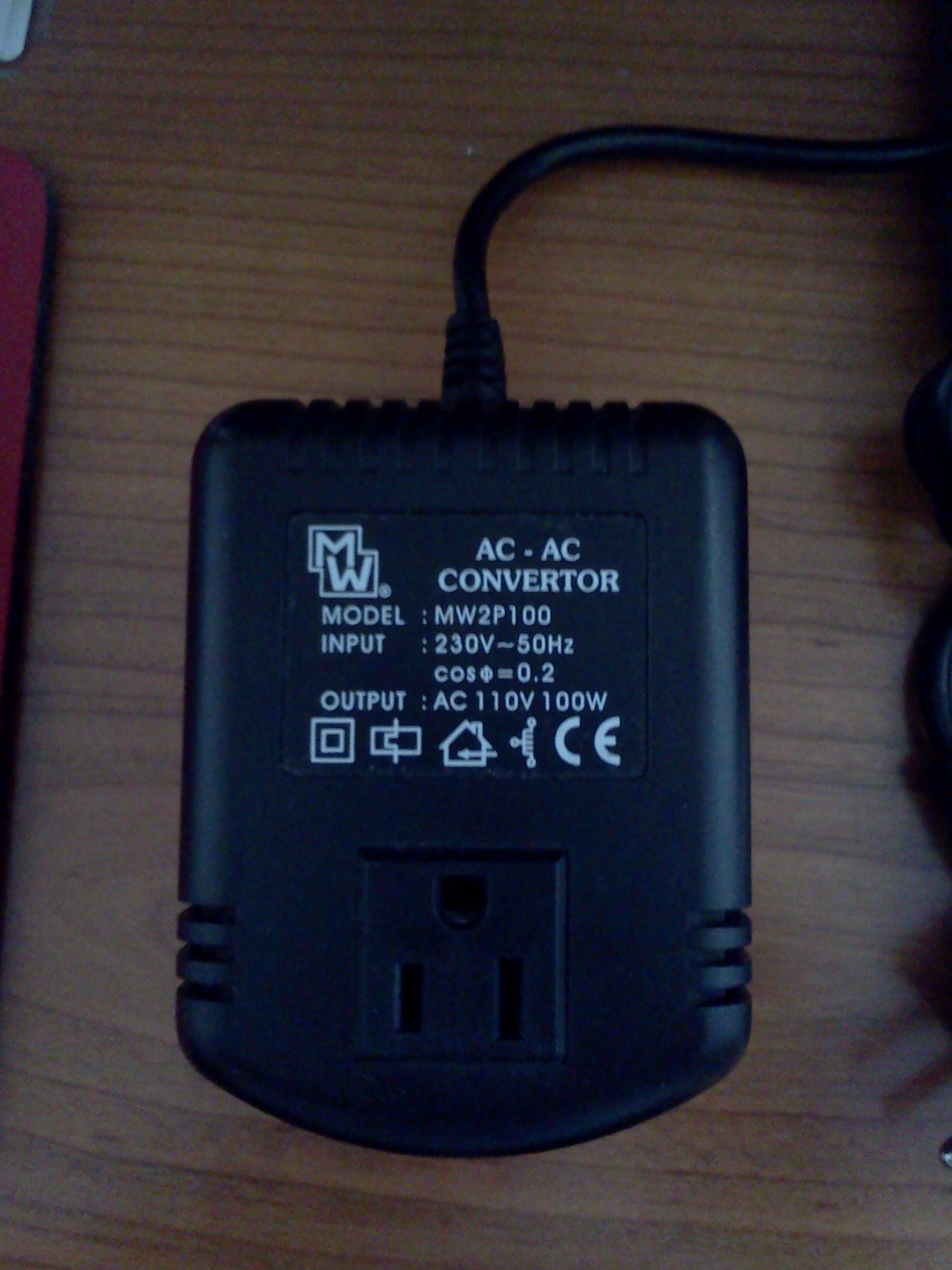

Image icon AC-AC Convertor.jpg495.55 KB
Offline
Last seen: 2 weeks 5 days ago
Joined: Nov 20 2004 - 00:26
Re: Apple I AC 220v to AC 110v Converter

That 220v to 110v converter should work. It says AC to AC so it is most likely a step-down transformer. Alternatively, like me, build your Mimeo-1 (or Obtronics) power supply with 220 or 240V transformers.
Laurie

Toolkitman's picture
Offline
Last seen: 5 days 8 hours ago
Joined: Nov 21 2010 - 15:30
Re: Apple I AC 220v to AC 110v Converter

Thank you Laurie,
Do you have a schematics and the model of the two power supply you have used thank you again

Macintosh128k's picture
Offline
Last seen: 4 years 10 months ago
Joined: Dec 4 2010 - 01:47
Re: Apple I AC 220v to AC 110v Converter

looks fine for the job,
the one I used I picked up from jarcar for around 100 bucks

"steed quality"
240v to 120v
120VA max
STIG - DX-120

size in mm
w 142
d 81
h 98
