Apple II expansion cards

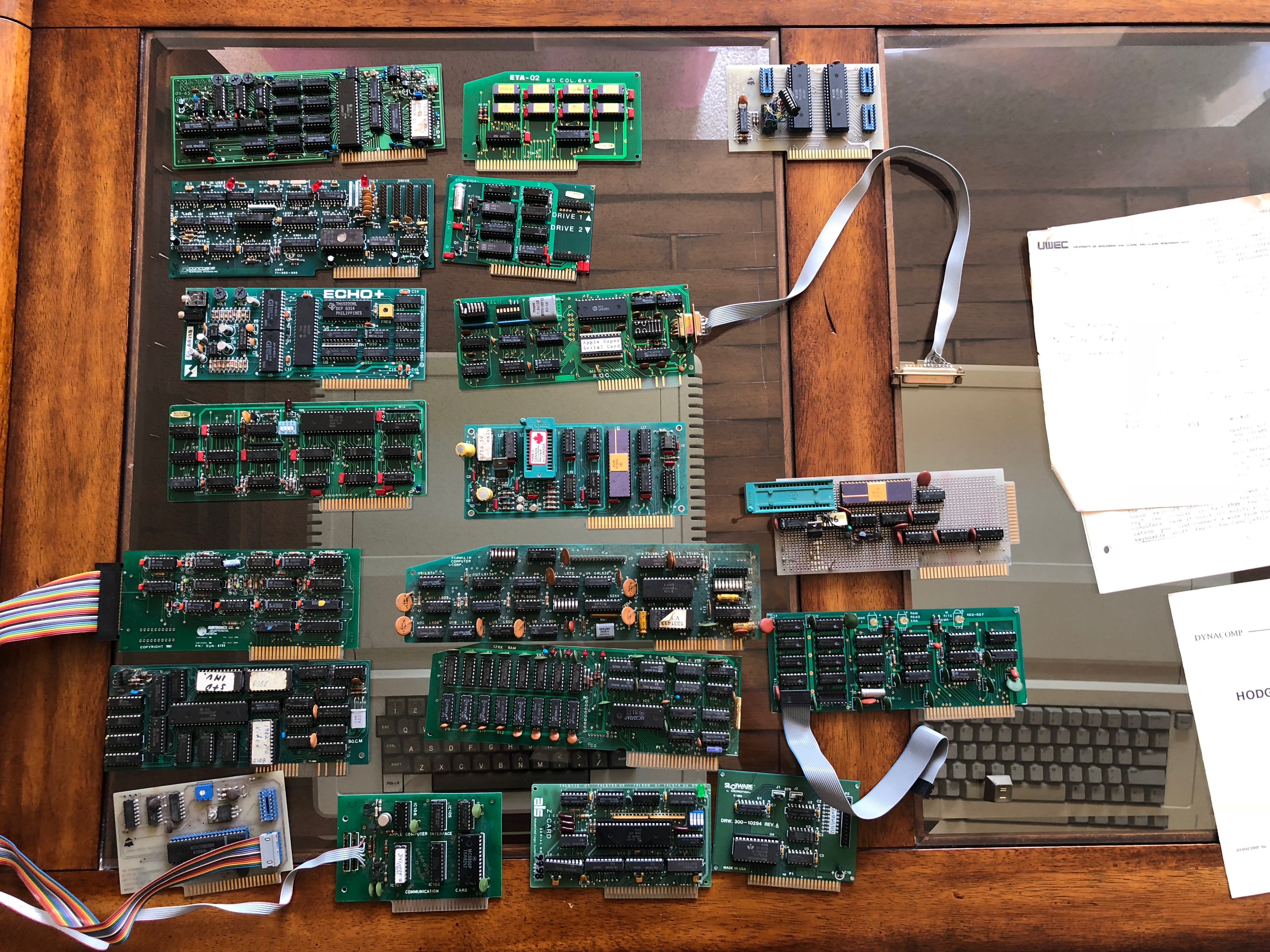

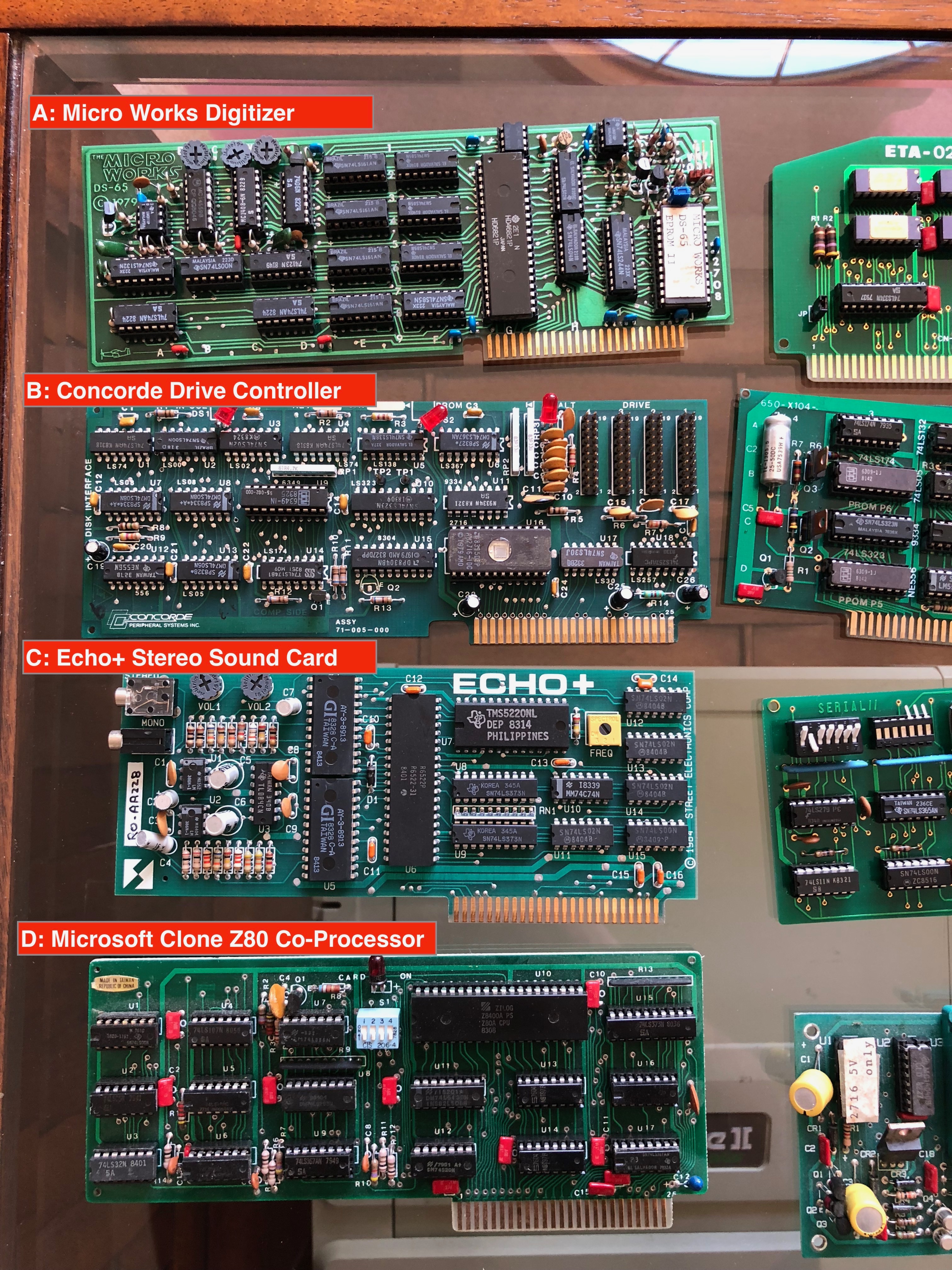

I recently acquired a lot of Apple II expansion cards (along with a II+, IIe, and Mac Portable). I've attempted to identify what each of these card are, but I appreciate any community help with the orange (unknown) items. The previous/original owner was a tinkerer, so some of the cards are modified or homebrew clones.

Thanks,
Matt







AttachmentSize
Image icon IMG_1303.jpg3.44 MB
Image icon IMG_1304.jpg3.19 MB
Image icon IMG_1305.jpg2.7 MB
Image icon IMG_1306.jpg394.84 KB
Image icon IMG_1307.jpg2.76 MB
Image icon IMG_1308.jpg2.73 MB
Image icon IMG_1309.jpg2.43 MB
Offline
Last seen: 6 hours 6 min ago
Joined: Dec 20 2003 - 10:38

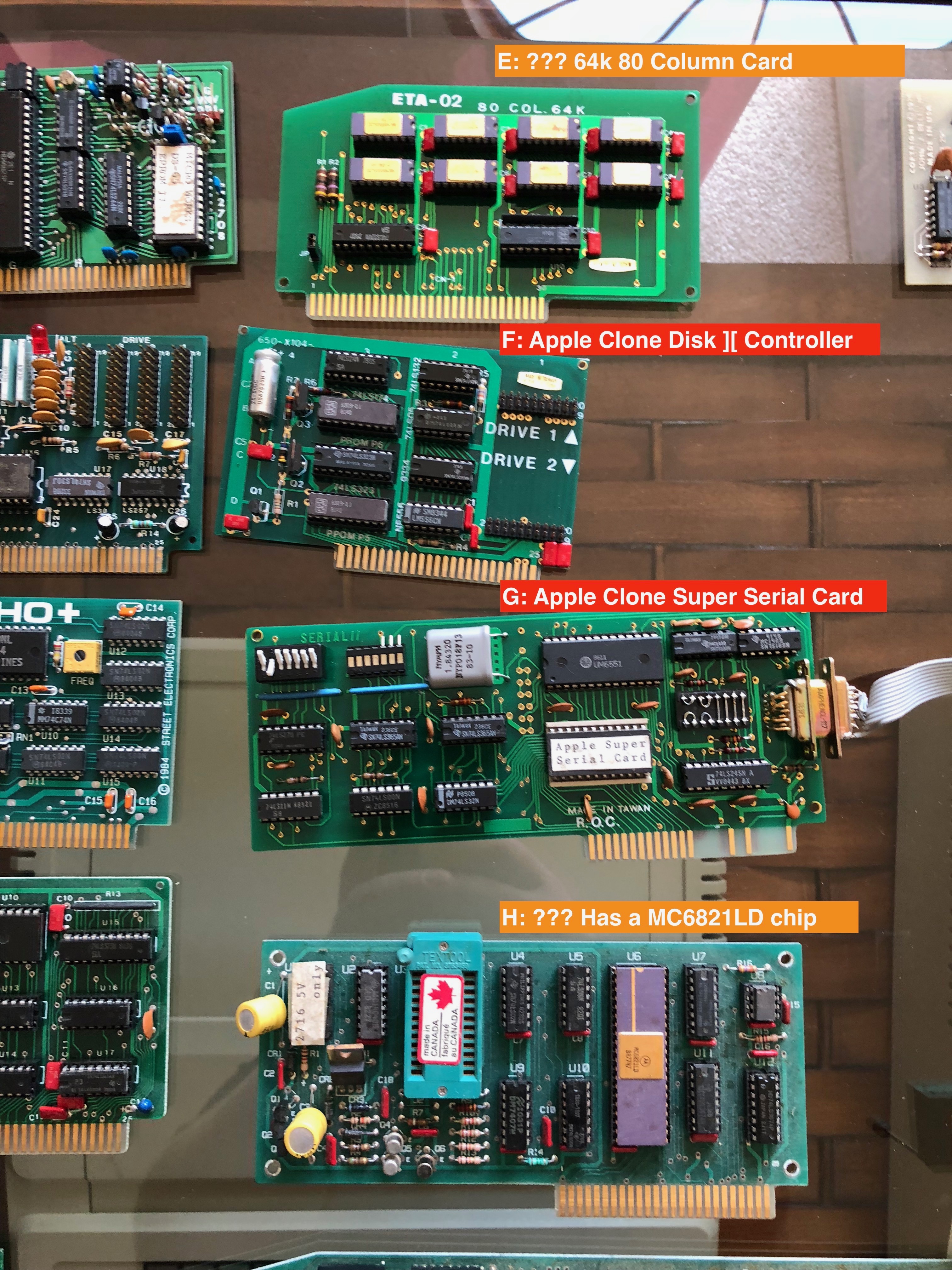

H is an Aparrat EPROM

H is an Aparrat EPROM programmer
K is a 16k card, often called a language card for a II or II Plus
R is an 80 column card

macnoyd's picture
Offline
Last seen: 5 hours 8 min ago
Joined: Oct 15 2012 - 08:59

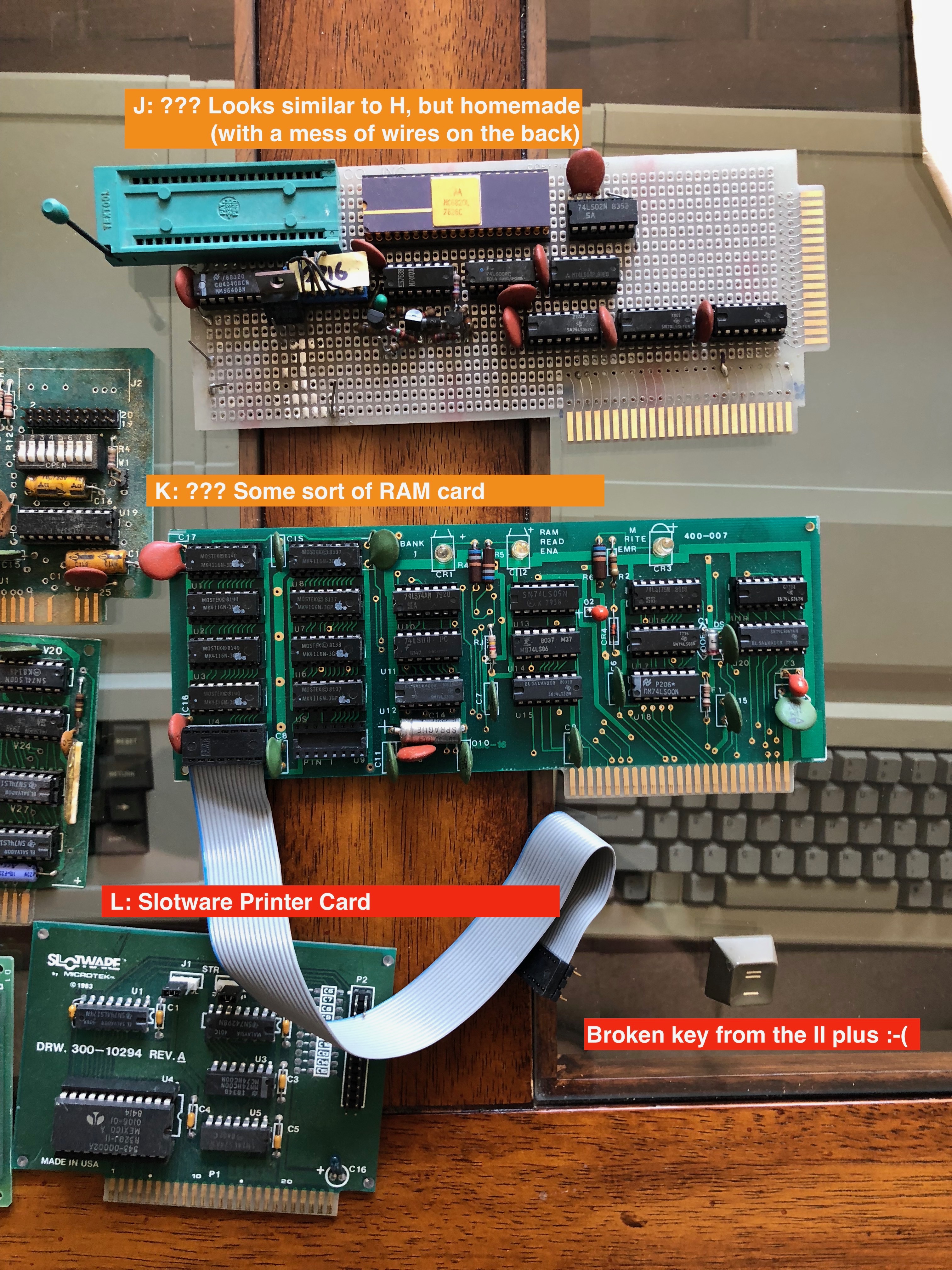

J is a copy of an EPROM

E is a 64K expansion copied card for the Apple IIe series
J is a copy of an EPROM Programmer card, but the chipset it burns is anybody's guess.

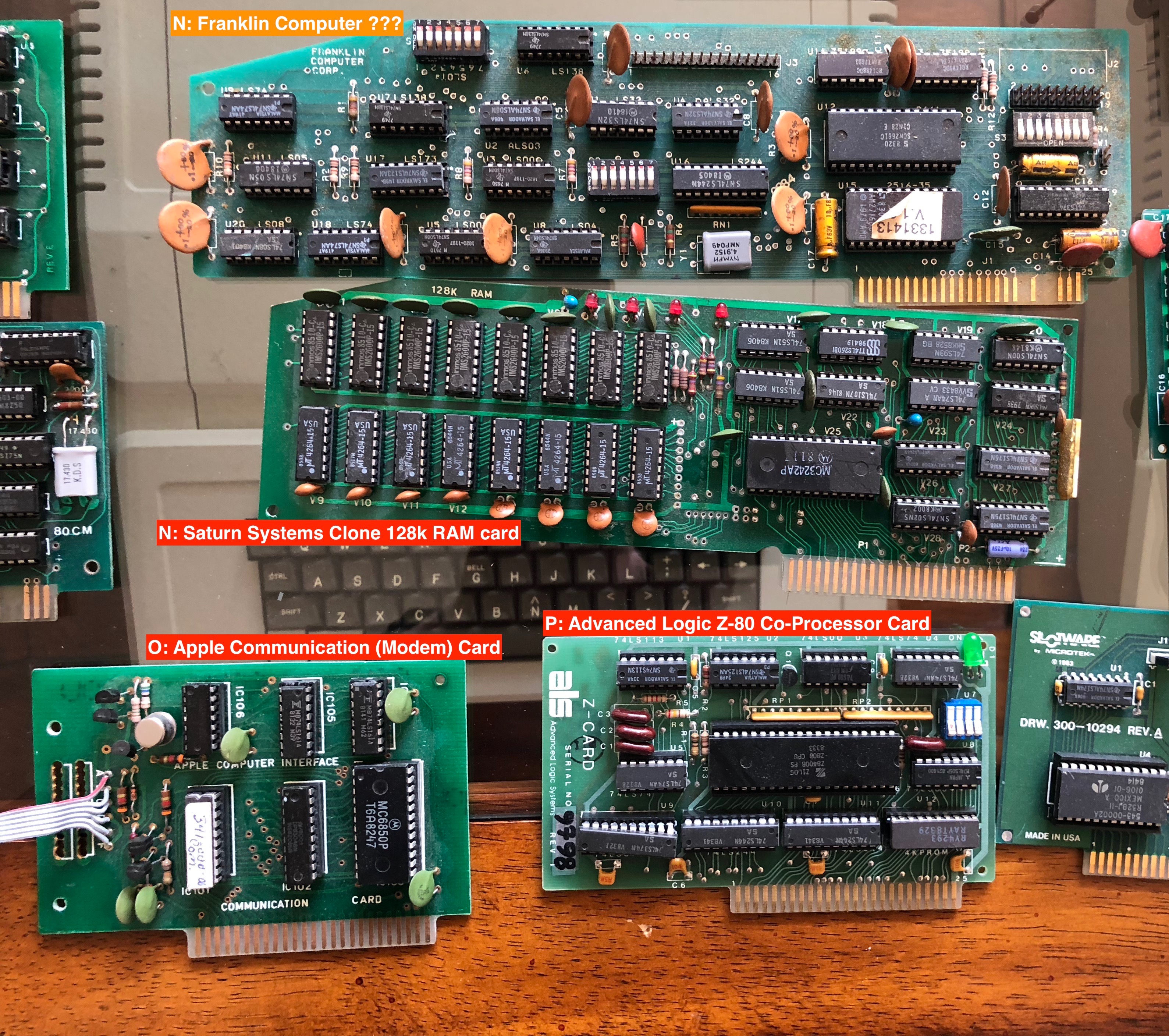

N is a multi-function serial parallel printer interface card for a Franklin computer.

Dog Cow's picture
Offline
Last seen: 18 hours 49 min ago
Joined: Dec 11 2008 - 16:26
Guess for Q: Data acquisition

Guess for Q: Data acquisition card

macnoyd's picture
Offline
Last seen: 5 hours 8 min ago
Joined: Oct 15 2012 - 08:59

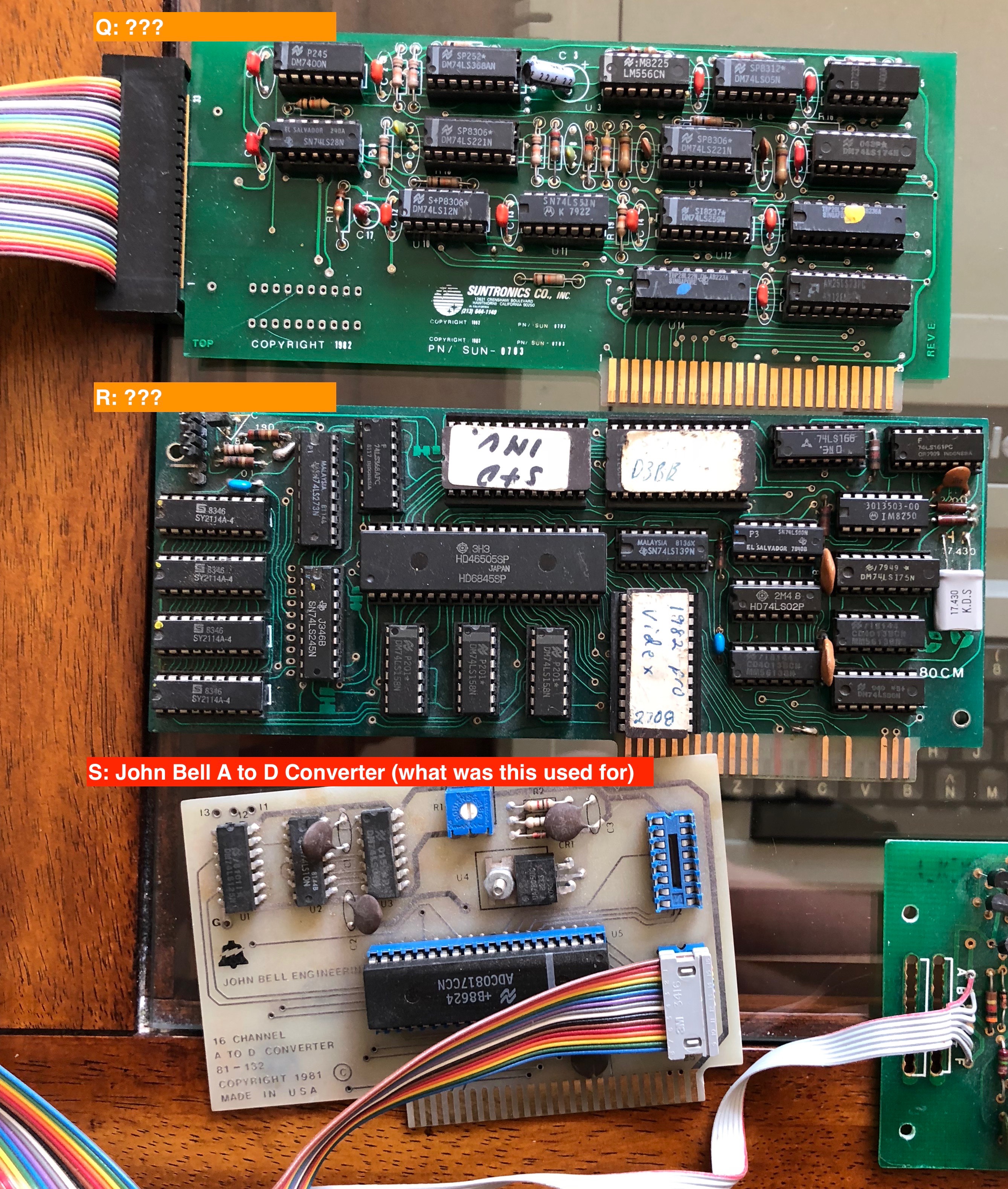

Guess for Q: Parallel printer

Guess for Q: Parallel printer card. Can you show us the back of the card?

Online
Last seen: 34 min 53 sec ago
Joined: Aug 18 2017 - 16:53
I agree with all other hints

I agree with all other hints Smile

H: EPROM burner similiar to the AP64e (Taiwan), but not identical

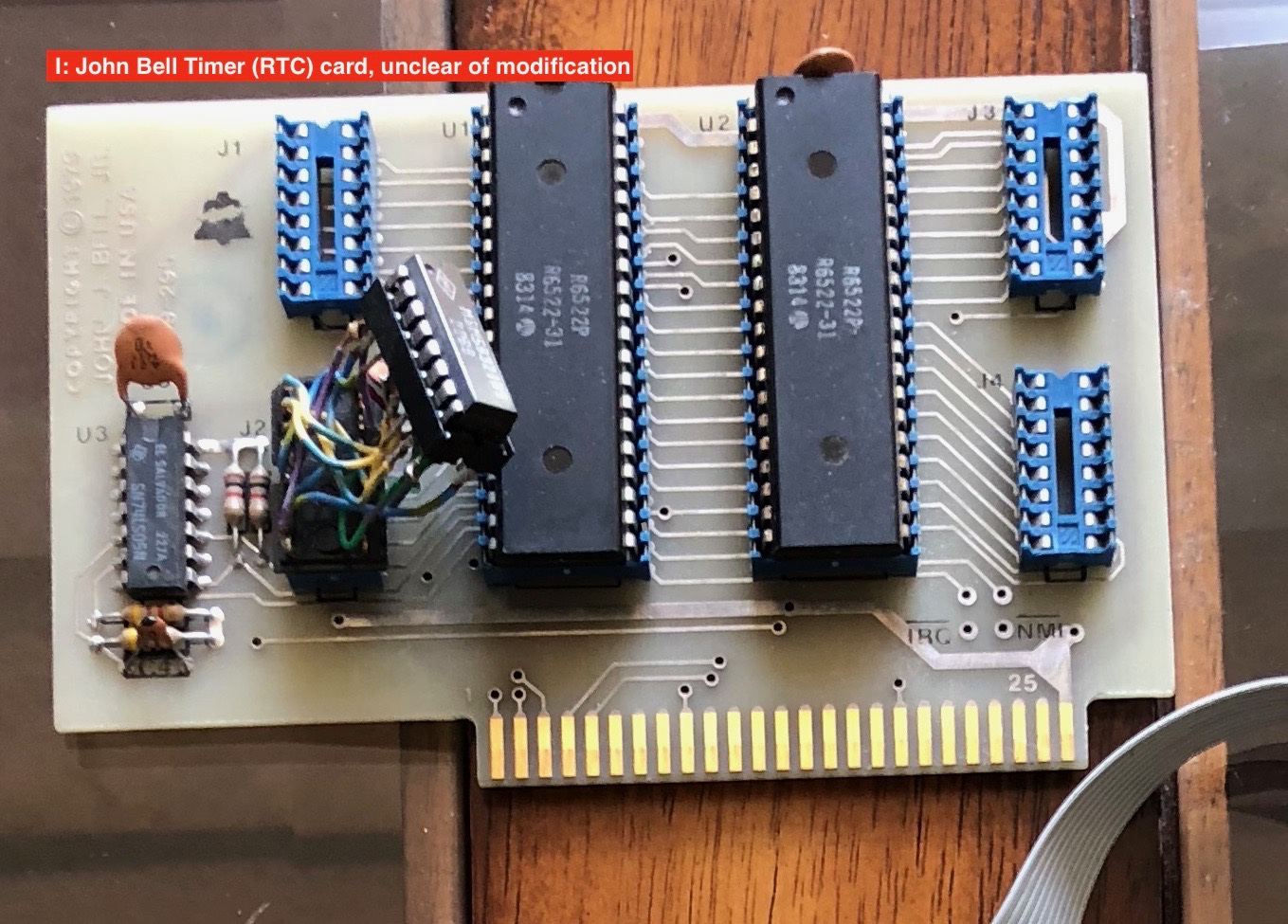

I: universal GPIO card, timers are also available in the 6522s, the socket with the weird stuff is normally empty to connect your GPIOs
Q: Is there a photo of the connector? Centronics printer interface may be right
S: A/D-Converter, 16 channels, 8bit, you can also use a ADC0816 which is a bit more accurate
Some months ago I found my old board (a clone from Taiwan):
http://www.ralf-kiefer.de/A2/JB_AD_Wandler/John%20Bell%20Engineering%20BS.JPG
and I added the components:
http://www.ralf-kiefer.de/A2/JB_AD_Wandler/JBE_BS_small.jpg

Regards, Ralf

tokabln's picture
Offline
Last seen: 1 day 47 min ago
Joined: Dec 30 2015 - 10:48
Dear Ralf,

Dear Ralf,

have you made a picture of the bottom side as well (probably prior soldering all components) ?
If yes I'm highly interested in getting them and perhaps a BOM (component list) to be used.

Many thanks

Torsten
