Apple IIc Drives won't read

5 posts / 0 new
Last post
Offline
Last seen: 5 years 7 months ago
Joined: Jan 15 2019 - 10:08
Posts: 5
Apple IIc Drives won't read
AttachmentSize

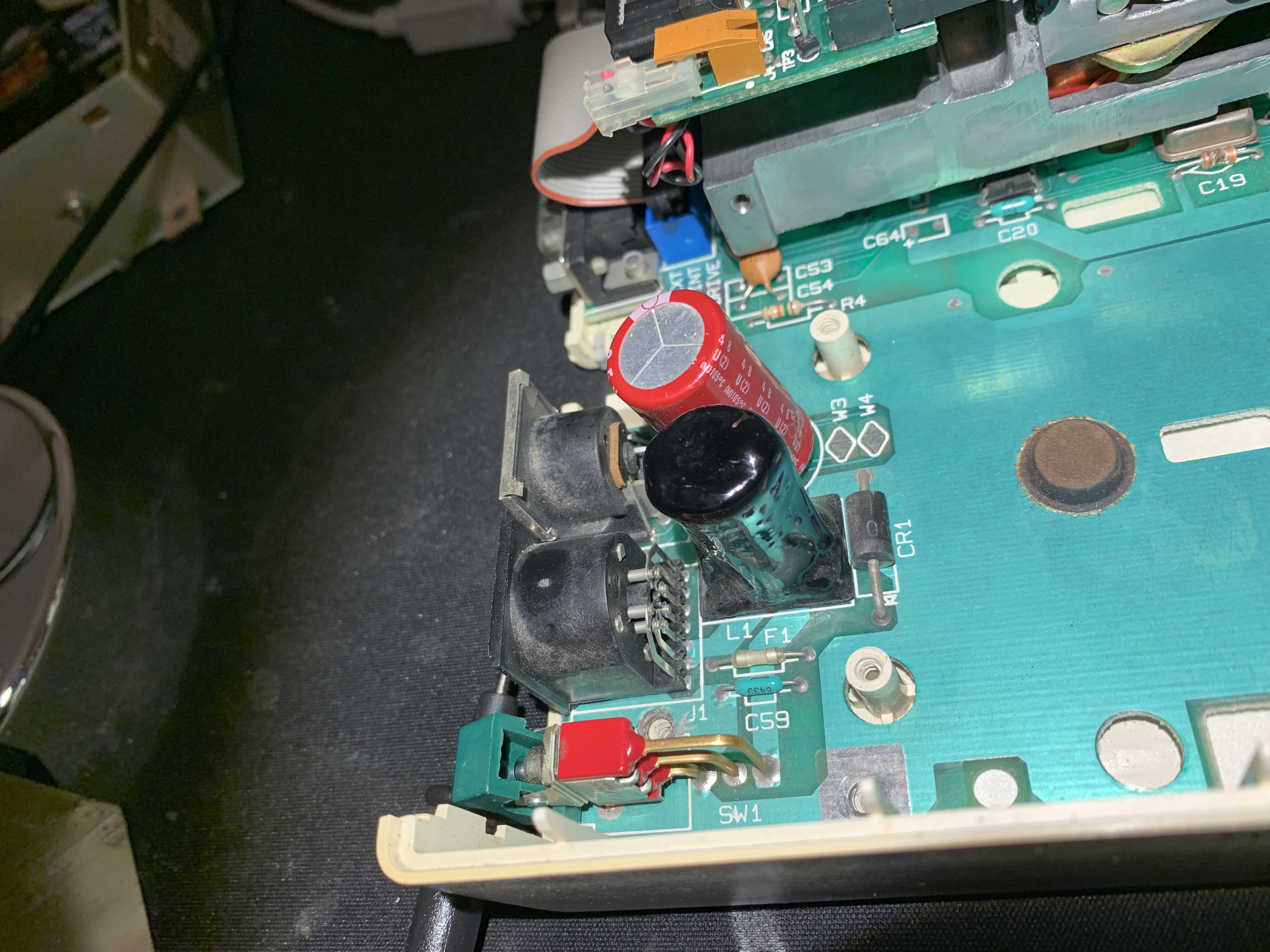

Image icon Motherboard Capacitors 3.2 MB

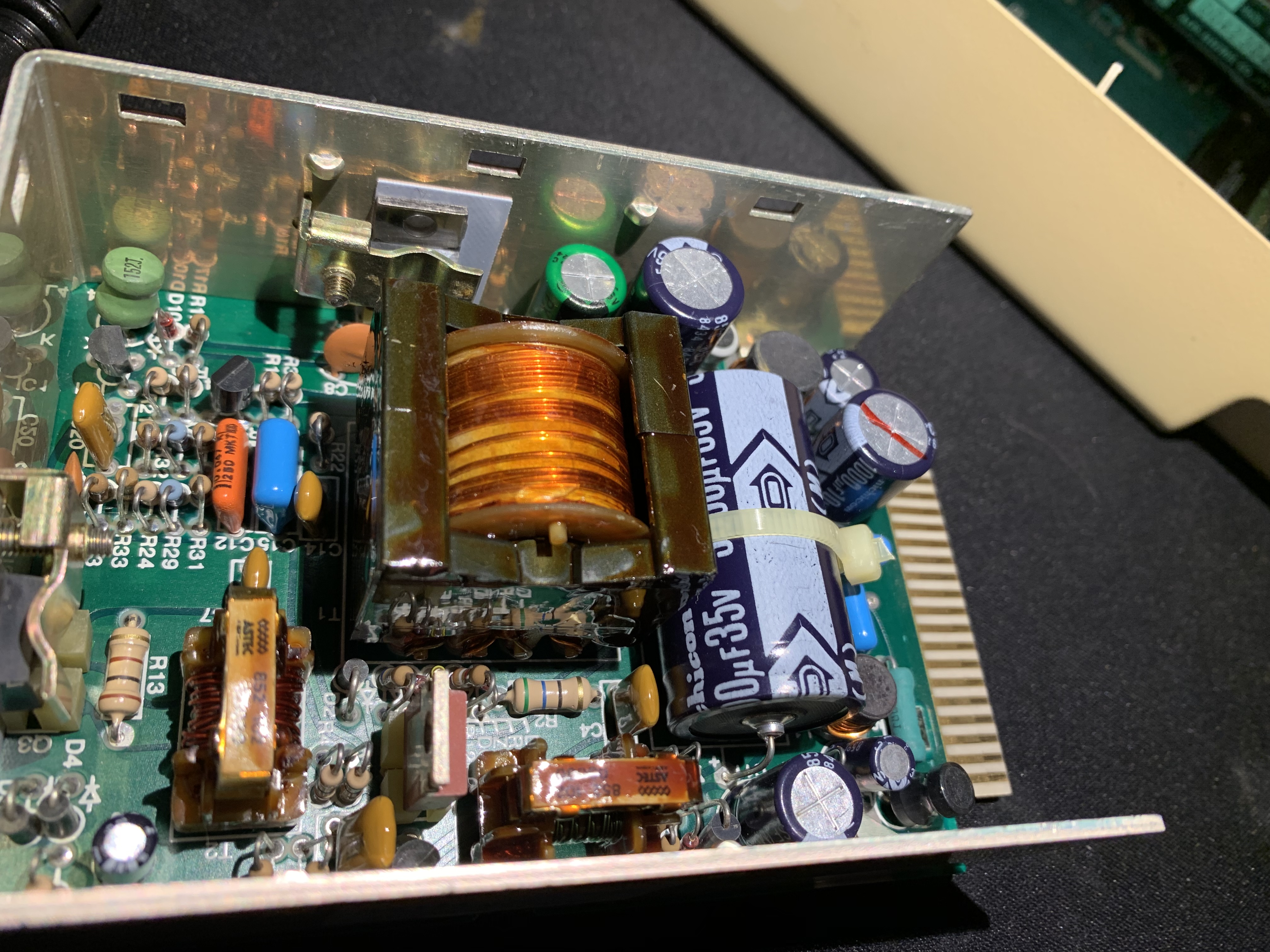

Image icon PSU Capacitors 13.1 MB

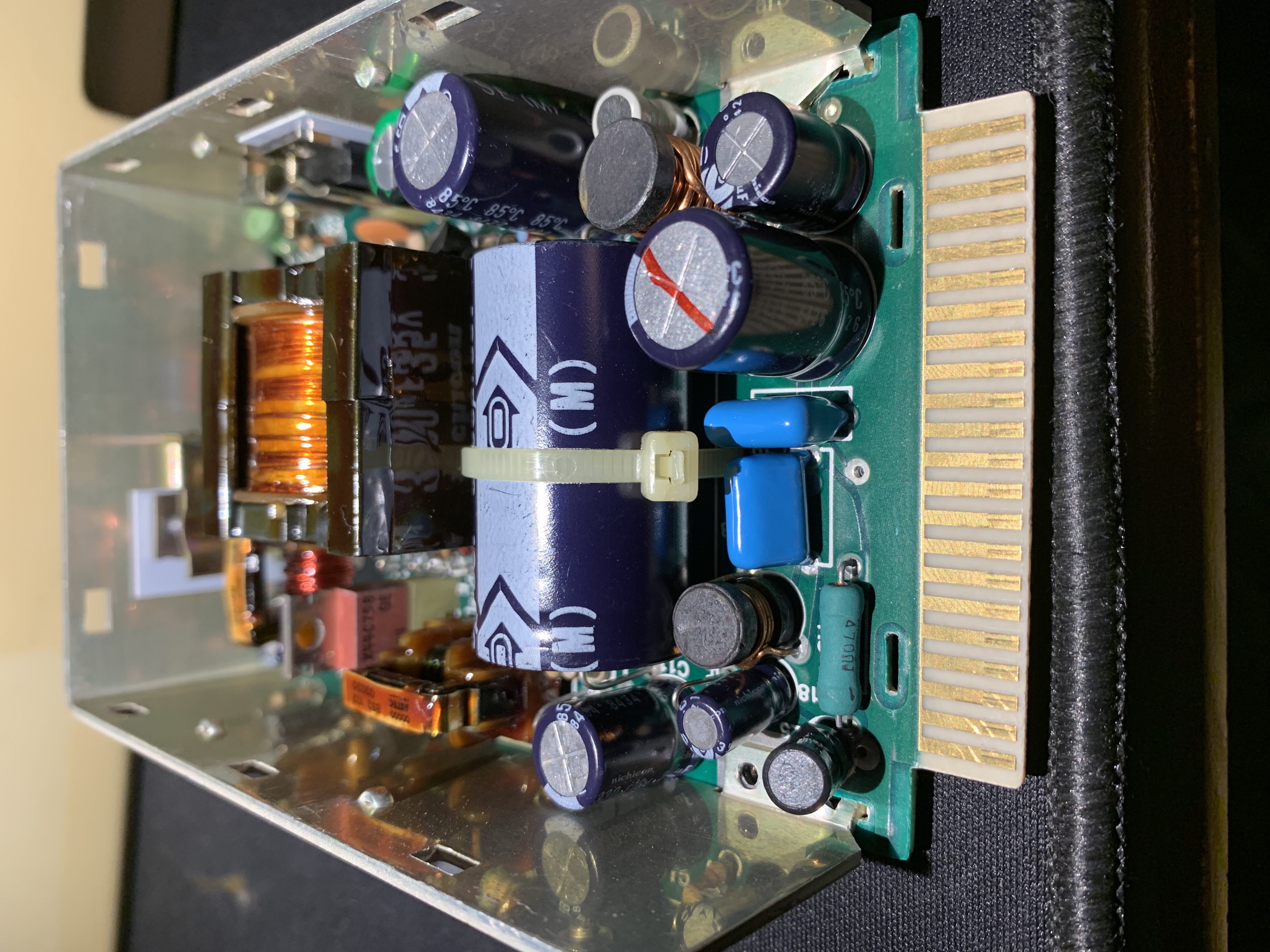

Image icon PSU Capacitors 23.04 MB

Hey, first time posting here i recently picked up an apple IIc that was not working and spent the time fixing it.

I don't have a ton of history on the unit, it was in fairly good condition, when i opened it up it had a Z-RAM Ultra 1 inserted inbetween the MMU and CPU removing that got it to boot. Tested the RAM it works.

Floppy drive is not working, at first it was not making the normal clicks I remember.

Checked drive, cleaned head, Lubed rails (lithium grease)

When powering on the head will click when it is manually returned to home. its almost as if the stater motor is not getting enough power, or is being sent the wrong instructions.

If i push the read/write head to the furthest position from home it will take several reboots for it to return home and make clicking, slow progress which is why my instinct was that the rails needed greasing.

Saddly i don't have anything that is "Known Good" just two drives (one external) and the internal one it came with that do the exact same thing  when connected internally.

Using the external connector does nothing for either drive, it will light the red LED on the drive with the housing for a split second when connected when powered on, but no movement when i try pr#5 it will say check disk drive and no lights or noise through the external connector.



I think it may be the IWM as both drives behave the same. maybe they both need re-capping.



any thoughts or ideas?



i recorded video of the read write heads behavior:

https://youtu.be/mM28RnQCl14

https://youtu.be/6hWP7im9RJw



thanks in advance

Offline
Last seen: 2 days 21 hours ago
Joined: Apr 13 2006 - 22:28
Posts: 148
Check that PSU!

The fact that you are getting the same behaviour from two different drives would suggest that perhaps you have power supply issues. Whilst it is possble that you have bad chip(s) on the motherboard, the most likely (and common) fault in these old machines is in the power supply.



The //c is fairly tolerant of the input voltage from the power brick (12-18V IIRC), but there may be faulty capacitors inside the //c itself. I would be checking for any bulging and/or leaking capacitors in the PSU section (not the power brick) and replacing any suspects as a first task. Also verify what voltage the power brick is supplying. If in doubt, there are replacement power bricks available on ebay - or in my case I repurposed an old laptop charger and soldered on the DIN connector used by the //c.



Ensuring a good power supply is a critical first step when diagnosing issues such as these.



Cheers,

Mike



Offline
Last seen: 5 years 7 months ago
Joined: Jan 15 2019 - 10:08
Posts: 5
Checking....

To my amature eyes they don't look too bad, It may be best to just re-cap it, i added photos as attachments to the origonal post of the PSU and Motherboard



I will dig around to see if i can find a guide for what voltages should be coming out of the PSU and if If there is a solid way to test them with the multimeter i have handy, i do have a DIY Osiliscope. I am  Just getting into this as a passion/hobby so every learning experience is worth it as long as I dont break the thing further.



Thanks again,

Mike

Offline
Last seen: 5 years 7 months ago
Joined: Jan 15 2019 - 10:08
Posts: 5
Ooops....

Looks like i forshadowed a bit in my last post,



I was checking the pinout for the floppy connector to see if it was getting the right voltages. this is what i discovered



GND,GND,GND,GND,4.3V, 5V,300OHM,5V,4.3V,5V

300OHM,250OHM,250OHM,250OHM, NA,NA,NA,NA,NA,NA





I must have shorted the 4.3 volts to pin 5 of row 2 because the screen became artifacted and on rebooting i get the good old chessboard... checkmate



back to the drawing board from looking at some references i think it should be 12 volts where i am getting 4.3V so it is likely the power supply i should have just recapped instead of checking the voltages on the pins for the floppy header.



Offline
Last seen: 5 months 1 week ago
Joined: Jul 5 2018 - 09:44
Posts: 2587
The floppy drives need the

The floppy drives need the 12V voltages to work, so it makes sense if your power supply is out of spec on that you'd get the symptoms you are seeing.
