Apple IIe plug and socket partnumber

6 posts / 0 new
Last post
Offline
Last seen: 1 year 3 months ago
Joined: Oct 26 2019 - 17:06
Posts: 13
Apple IIe plug and socket partnumber
AttachmentSize
Image icon J142.31 MB

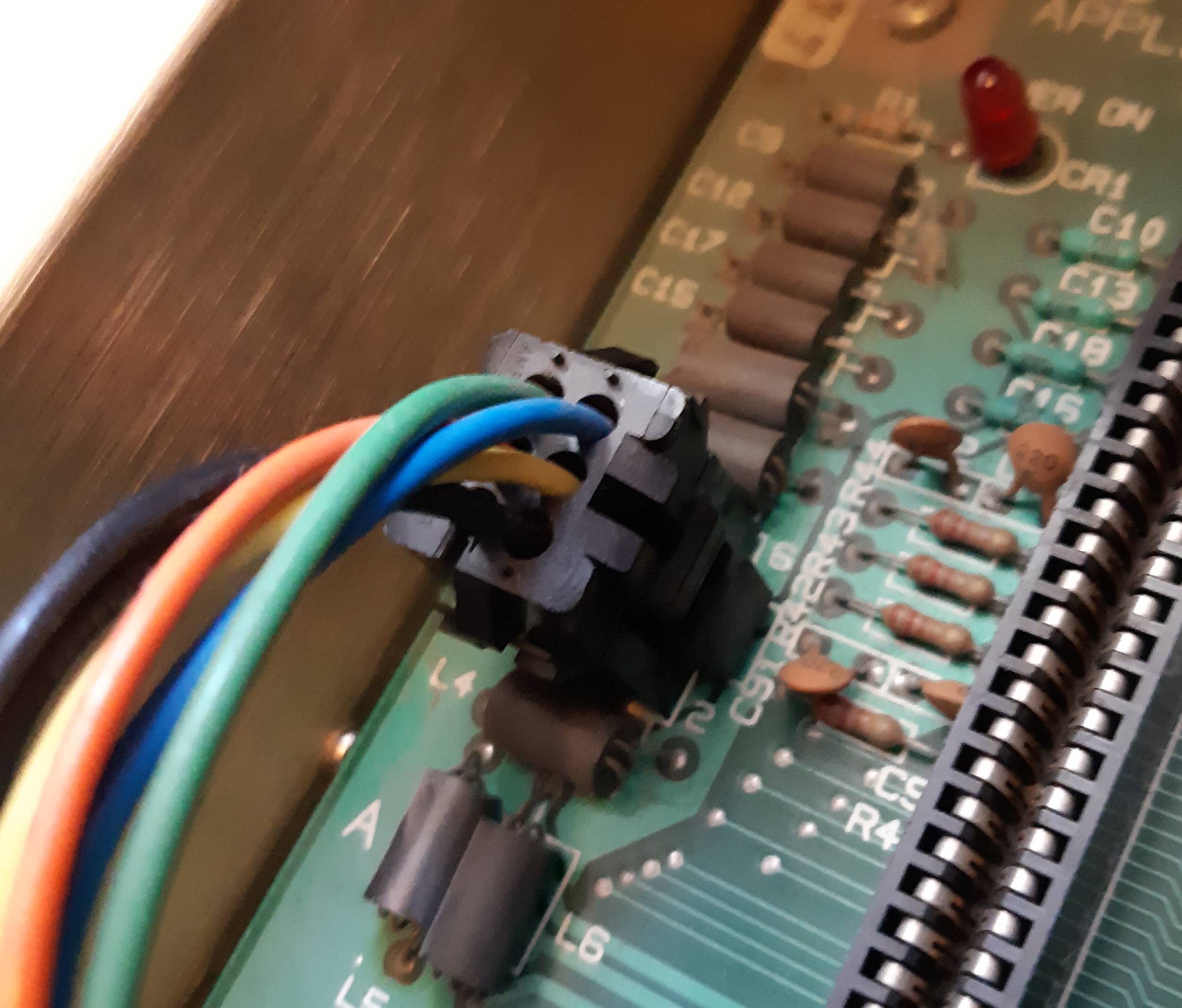

Hi, the connection of the plug and socket from the power supply (6 pins) to the mainboard (J14) of my Apple IIe European version is unreliable. I am looking for the part-number or type of this connector and socket so I can order and replace them.

Does someone know this information or where I can find a replacement for this?

Offline
Last seen: 1 year 3 weeks ago
Joined: Jul 28 2018 - 04:29
Posts: 67
Did you already try to clean

Did you already try to clean the contacts with deoxid (contact cleaner) and reflowing/resoldering the plug on the mainboard?



I haven't found a modern replacement for these parts, you can get the plug here: https://www.reactivemicro.com/product/apple-ii-ii-iie-dc-output-cable-for-universal-psu-kit/ - For the mainboard-side I have not found anything yet.





Offline
Last seen: 1 year 3 months ago
Joined: Oct 26 2019 - 17:06
Posts: 13
Thank you for your suggestion

Thank you for your suggestion, I try to clean the contacts with contact cleaner and it seems that is a bit improved but I want a reliable connection. Also the connector is somewhat loose, I can remove the connector from the board too easy.



I found the dc output cable of reactivemicro but it is an expensive solution for only the connector. I hope someone knows the type/part number of this connector and plug.







Offline
Last seen: 3 months 4 days ago
Joined: Aug 18 2017 - 16:53
Posts: 164
Try these:https://www.digikey

Try these:

https://www.digikey.de/product-detail/de/te-connectivity-amp-connectors/1-640520-0/A14113-ND/187722

https://www.digikey.de/product-detail/de/te-connectivity-amp-connectors/641294-1/A100808CT-ND/2233154



Offline
Last seen: 1 year 3 months ago
Joined: Oct 26 2019 - 17:06
Posts: 13
Thank you for the information

Thank you for the information, this is what I need and I've ordered them at Digikey and stored also the datasheets.

Offline
Last seen: 1 month 3 weeks ago
Joined: Jul 5 2018 - 09:44
Posts: 2587
