Focus IDE HD Broken?

I purchased a Focus Drive a number of years ago and finally got to installing it. I keep getting an error reading the drive, there is little information I can find, and cannot even verify if the card supports this drive or if the drive is even the original one. Since it was crated in 1998, it should support it, but I do not know enough about the chips or software.

Could anyone lend some insight?

https://www.facebook.com/photo.php?fbid=10213854786417844&set=gm.2239685006058653&type=3

https://www.facebook.com/photo.php?fbid=10213854786297841&set=gm.2239685006058653&type=3

https://www.facebook.com/photo.php?fbid=10213854786257840&set=gm.2239685006058653&type=3

https://www.facebook.com/photo.php?fbid=10213854786177838&set=gm.2239685006058653&type=3

AttachmentSize

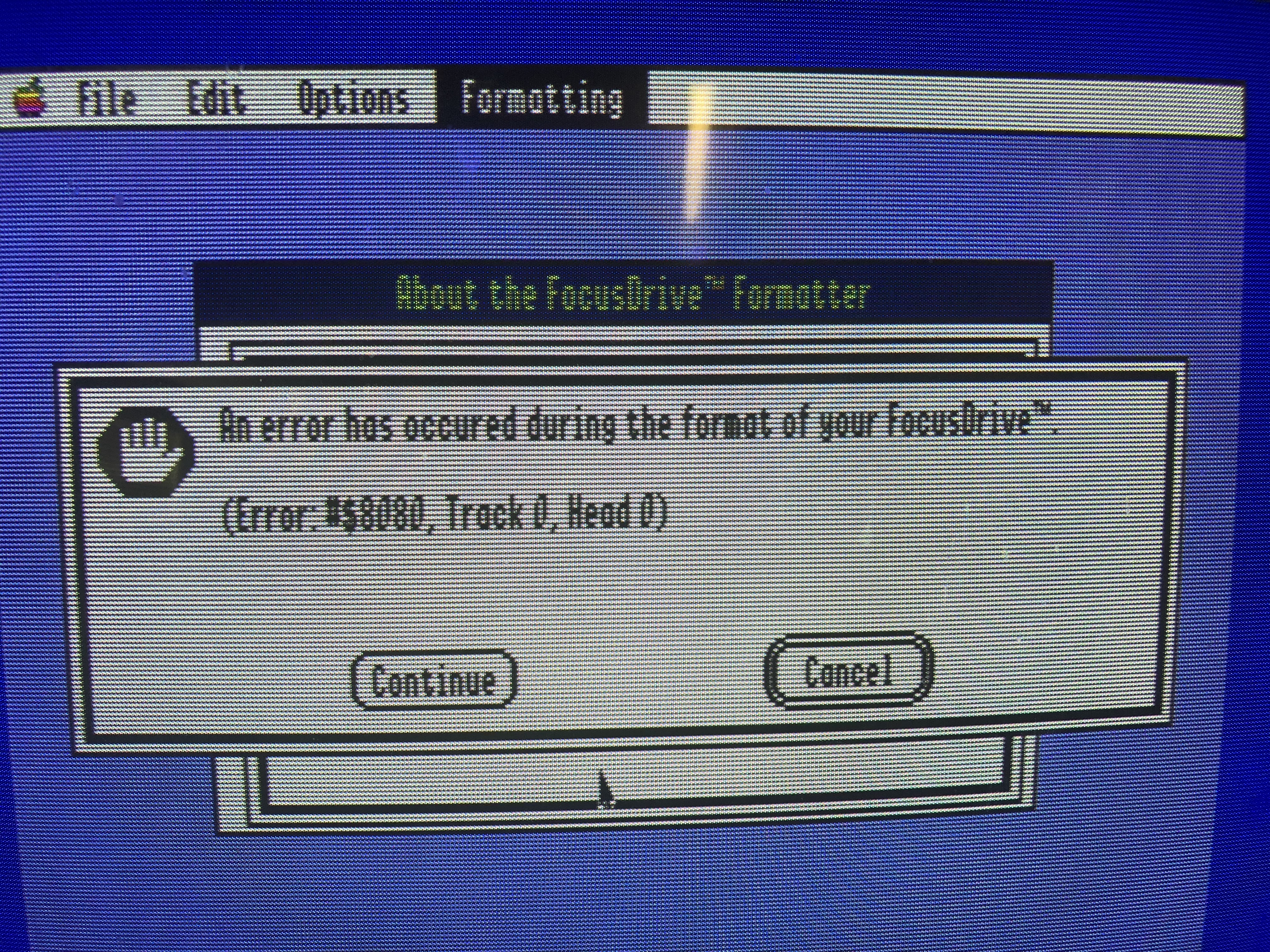

Image icon Error screen7.05 MB

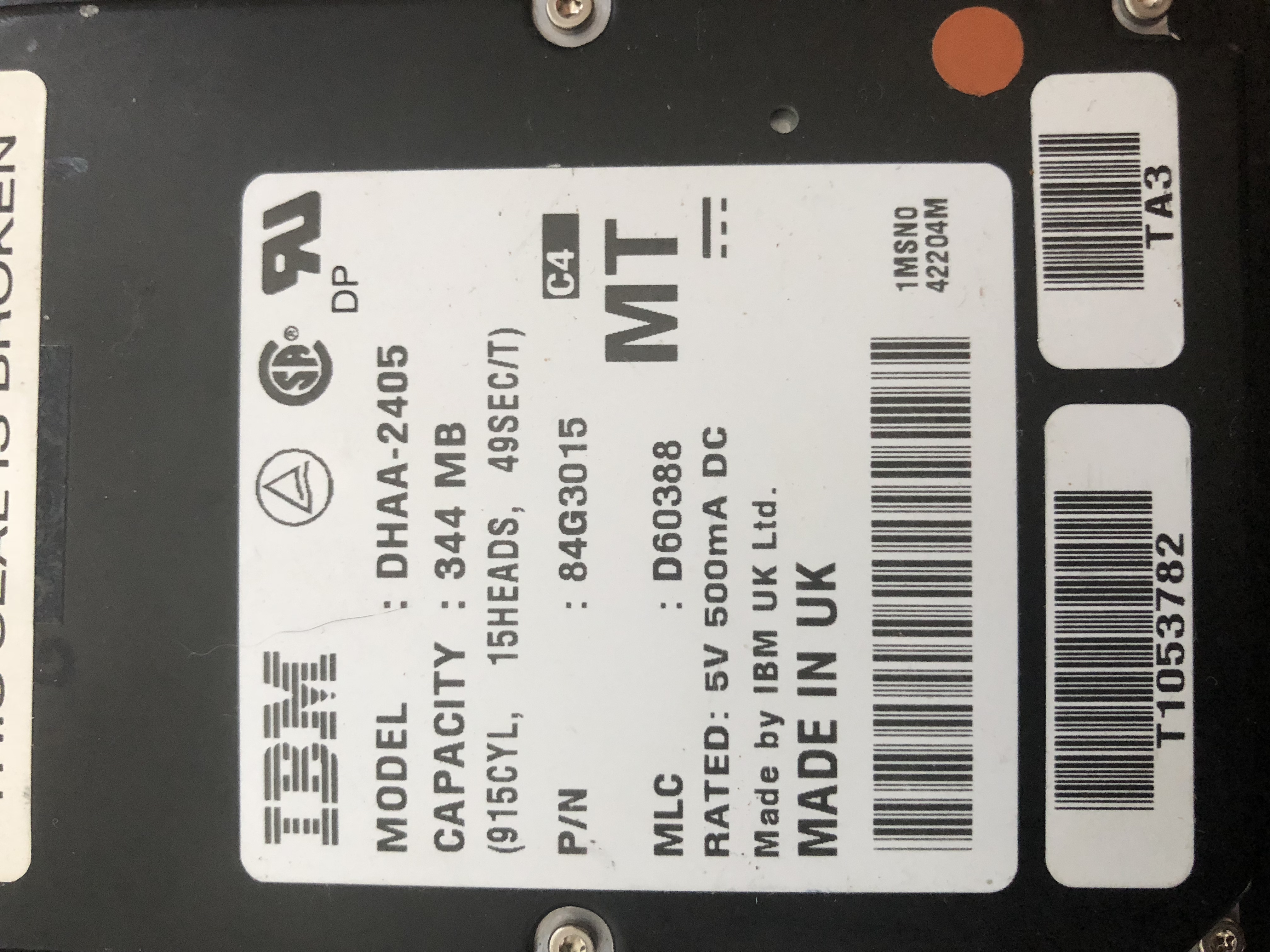

Image icon Hard Drive2.8 MB

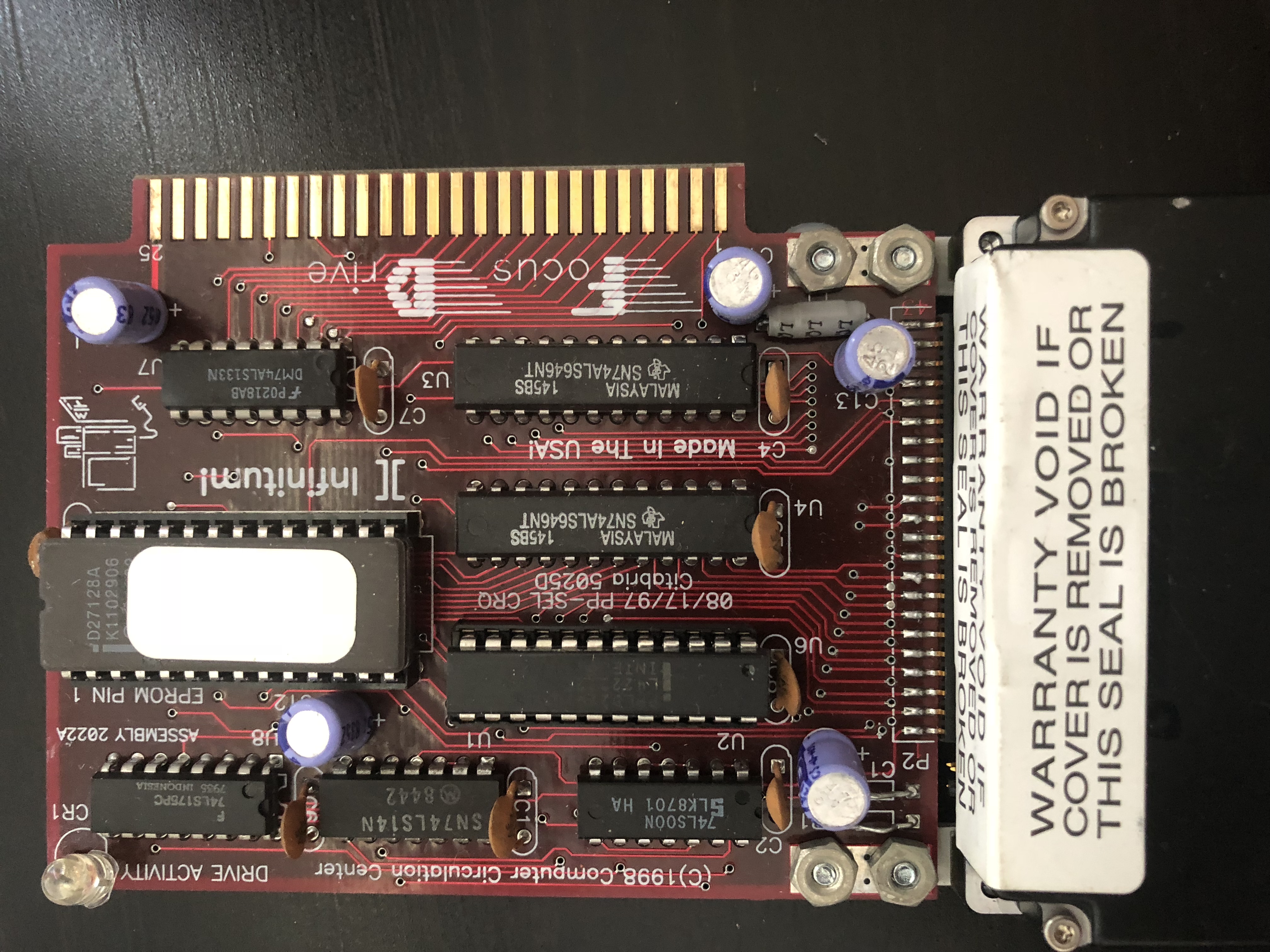

Image icon Focus Drive Card3.47 MB
Image icon Error Close Up9.6 MB
tokabln's picture
Offline
Last seen: 1 week 5 days ago
Joined: Dec 30 2015 - 10:48
Posts: 134
Focus IDE Documentation
Dog Cow's picture
Offline
Last seen: 1 week 5 days ago
Joined: Dec 11 2008 - 16:26
Posts: 535
I had a similar problem many

I had a similar problem many years ago in 2010.

The solution was to buy a compact flash to IDE adapter and a compact flash card. Total cost of this was less than $25 as I recall. And the result is that I have solid-state storage for IIgs. Smile

Offline
Last seen: 4 months 5 days ago
Joined: Dec 10 2010 - 08:41
Posts: 0
That is an excellent idea! I

That is an excellent idea! I checked eBay and found some in the low price range, but they all seem to use a PC floppy drive connector. Where did you draw power from? Could you take a pic if it isn’t too much trouble?

Dog Cow's picture
Offline
Last seen: 1 week 5 days ago
Joined: Dec 11 2008 - 16:26
Posts: 535
04 Intimidator wrote:but they

04 Intimidator wrote:
but they all seem to use a PC floppy drive connector. Where did you draw power from? Could you take a pic if it isn’t too much trouble?
You may be looking at the wrong thing. Here is my FocusDrive with CompactFlash card.

Offline
Last seen: 4 months 5 days ago
Joined: Dec 10 2010 - 08:41
Posts: 0
That was perfect. I was

That was perfect. I was looking at Female to Male connectors. The correct one is 44 pin male to male. Just ordered the part off eBay for $5.89. They are available for $1.67, but may take 2 months to get here, I’ll spend the extra $4. I’m sure I have 4 or 5 compact flash cards for an old camera laying around to use as a hard drive.

Thanks again!

Dog Cow's picture
Offline
Last seen: 1 week 5 days ago
Joined: Dec 11 2008 - 16:26
Posts: 535
04 Intimidator wrote:The

04 Intimidator wrote:
The correct one is 44 pin male to male. Just ordered the part off eBay for $5.89. They are available for $1.67, but may take 2 months to get here,

Yeah, I bought the super-cheap one from China, same with the CompactFlash card. I don't recall that it took more than 2 weeks to arrive. I waited patiently. Smile

It is still working, 8 years later.

Offline
Last seen: 4 months 5 days ago
Joined: Dec 10 2010 - 08:41
Posts: 0
That did it! Just installed

That did it! Just installed a 256 MB card into an adapter to the Focus card and boots up amazingly fast.

Thanks!

Dog Cow's picture
Offline
Last seen: 1 week 5 days ago
Joined: Dec 11 2008 - 16:26
Posts: 535
Super!

Super! You're welcome.
