Mainboard identification
AttachmentSize
Image icon IMG_20210816_163049.jpg4.49 MB

Hi All

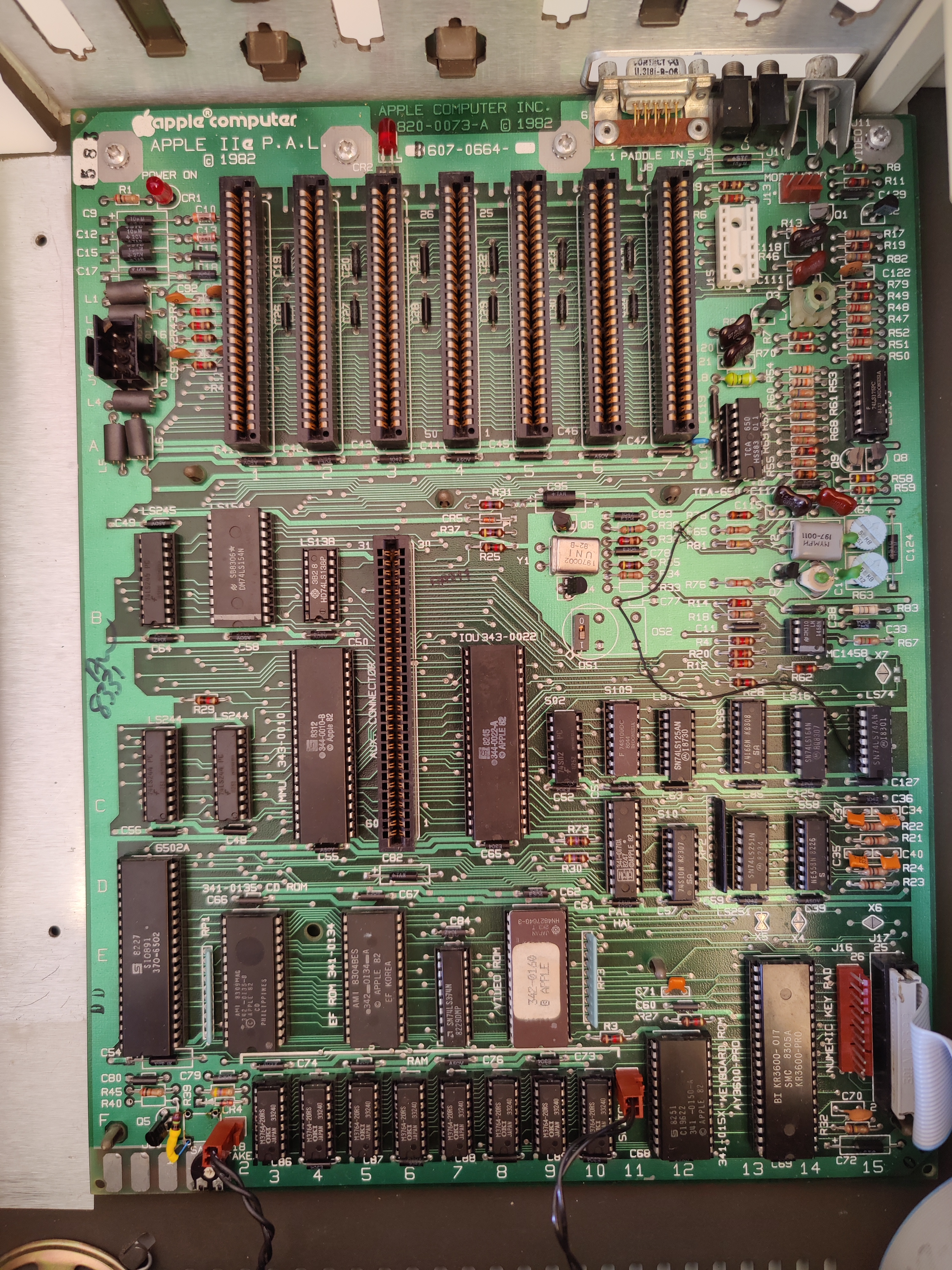

Apologies for the number of noob questions, but I have been looking for some time and struggling to ID my Apple IIe mainboard. I think it is a REV A based on the detail in the picture below, but I am aware some REV B boares were marked -A.

if anybody can definitively ID I would be very grateful, thanks.



Online
Last seen: 1 hour 51 min ago
Joined: Aug 18 2017 - 16:53
Posts: 144
Early PAL board

I believe that's an early PAL board. It's sure that it's PAL and not NTSC, and there are the two wires and the small switch at the position for the can oscillator.



Regards

Ralf



Online
Last seen: 1 hour 39 min ago
Joined: Aug 11 2021 - 10:26
Posts: 40
RalfK wrote:I believe that's
RalfK wrote:

I believe that's an early PAL board. It's sure that it's PAL and not NTSC, and there are the two wires and the small switch at the position for the can oscillator.



Regards

Ralf

Thanks Ralf, do you think REV A or B?



Online
Last seen: 1 hour 51 min ago
Joined: Aug 18 2017 - 16:53
Posts: 144
I don't know the revisions of

I don't know the revisions of the PAL boards. The typical Rev.A mainboard without the Double Hires feature is the first sold in 1983 in USA, and it's for NTSC. The PAL boards were sold i.e. in Europe, and they have the Double Hires feature.



Regards

Ralf







Online
Last seen: 1 hour 39 min ago
Joined: Aug 11 2021 - 10:26
Posts: 40
RalfK wrote:I don't know the
RalfK wrote:

I don't know the revisions of the PAL boards. The typical Rev.A mainboard without the Double Hires feature is the first sold in 1983 in USA, and it's for NTSC. The PAL boards were sold i.e. in Europe, and they have the Double Hires feature.



Regards

Ralf

Thanks Ralf, much appreciated.
