My poor SE/30 battery exploded

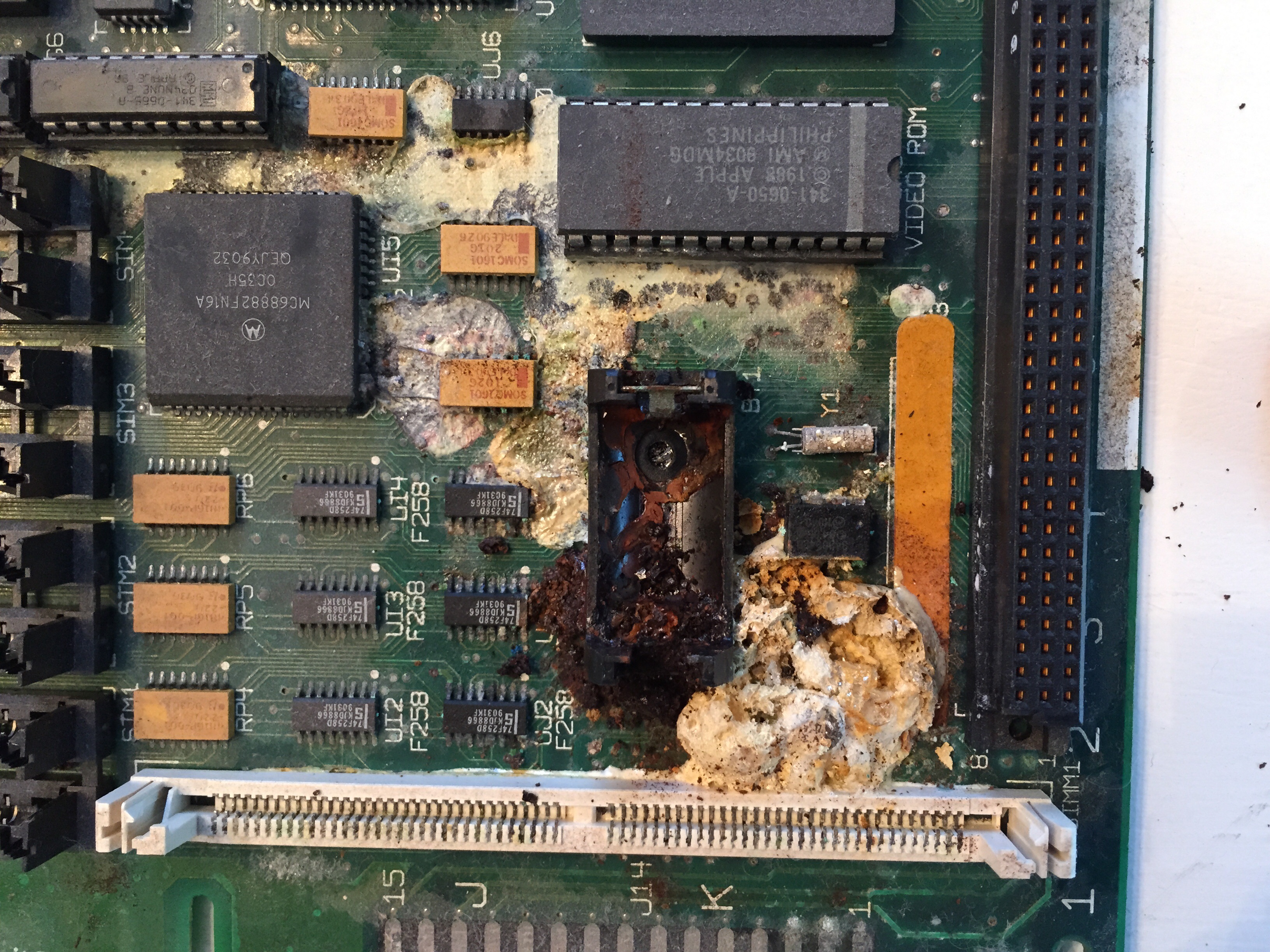

Hello I have an SE/30 that has worked perfectly for years. I hadn't started it up for awhile and when I did I heard no chime and the screen is black with a random horizontal starburst type white flashes every so often. I opened her up and to my horror the battery has exploded. One of thbattery holders metal clips dissolved, some weird white crud was everywhere.
Can this be fixed? If not, are the boards available anywhere? I'm bummed.

AttachmentSize
Image icon 02.jpg2.35 MB
Image icon image.jpg2.08 MB
Image icon image.jpg1.99 MB
Image icon image.jpg2.05 MB
Image icon image.jpg1.97 MB
Image icon image.jpg1.62 MB
Image icon 01.jpg1.9 MB
Offline
Last seen: 3 years 10 months ago
Joined: Jun 1 2015 - 15:40
Posts: 2
Re: My poor SE/30 battery exploded

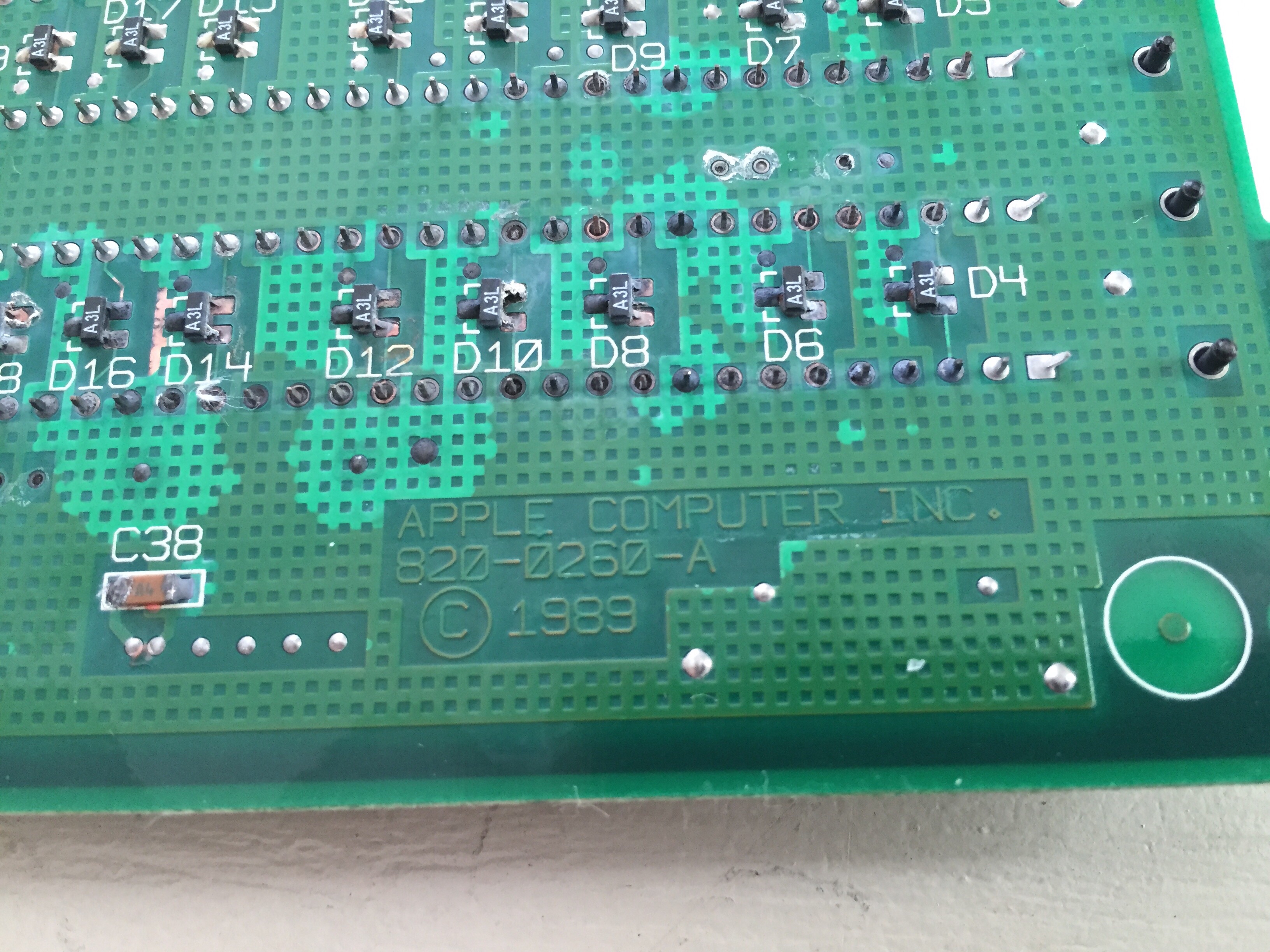

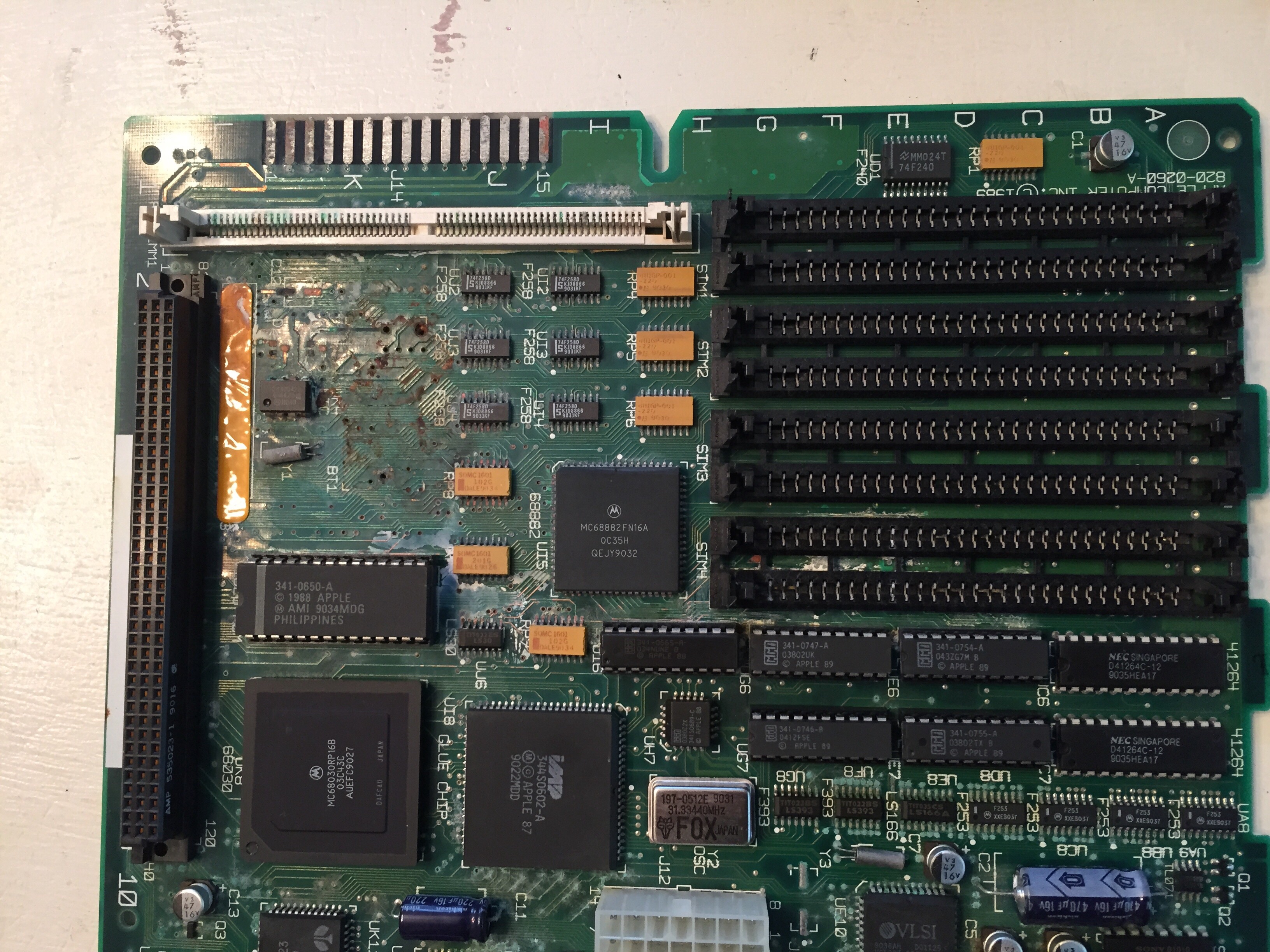

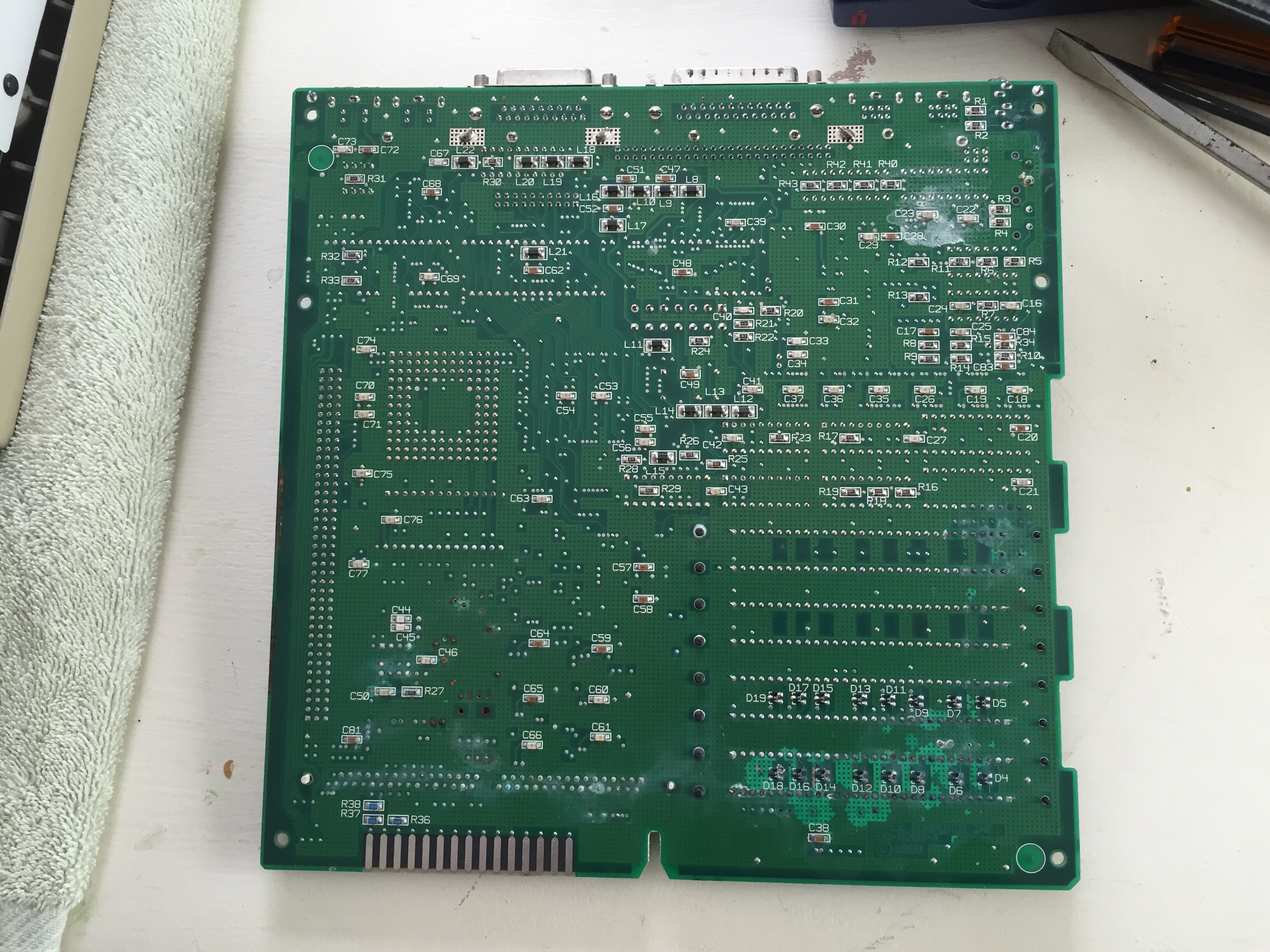

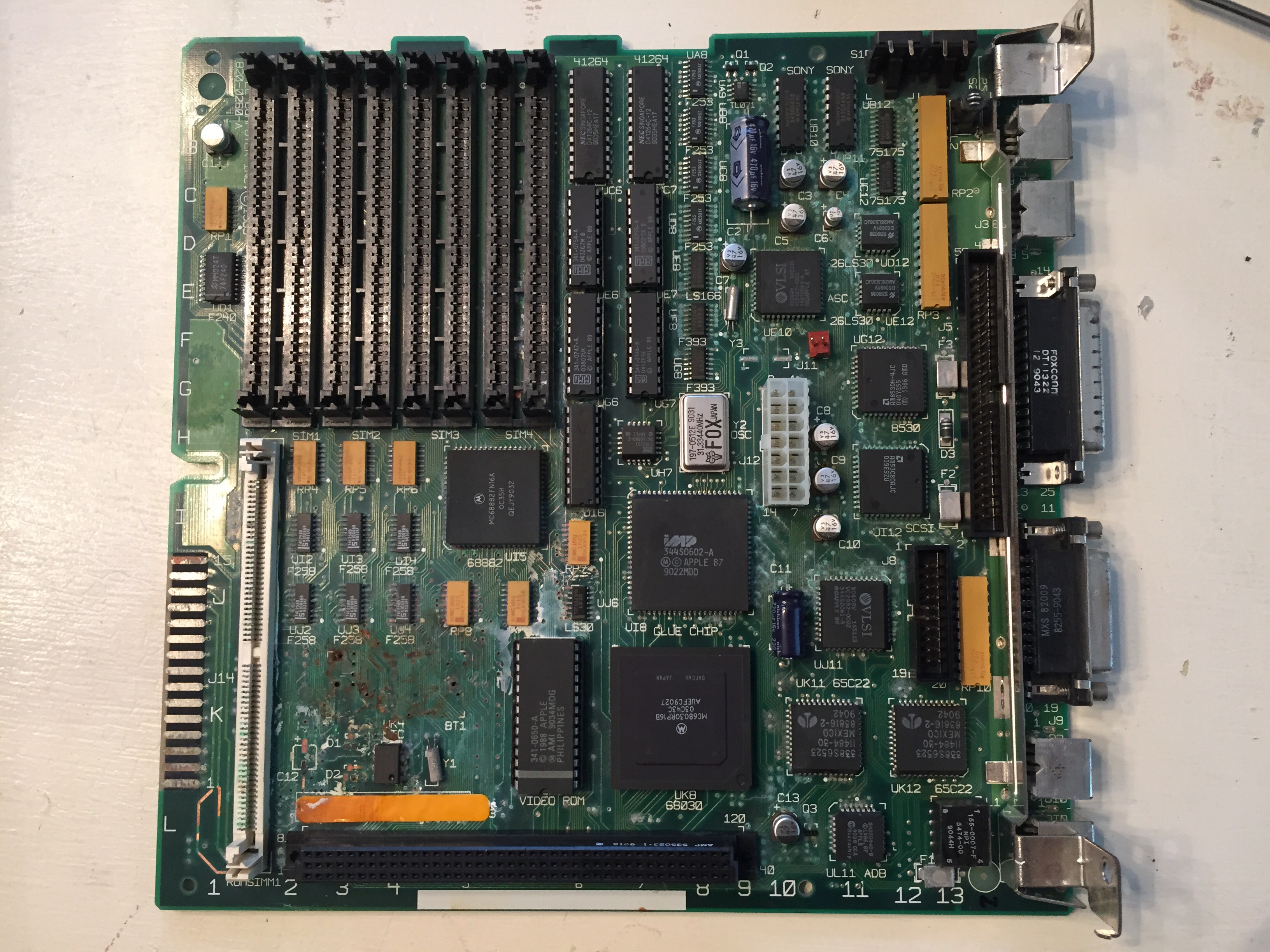

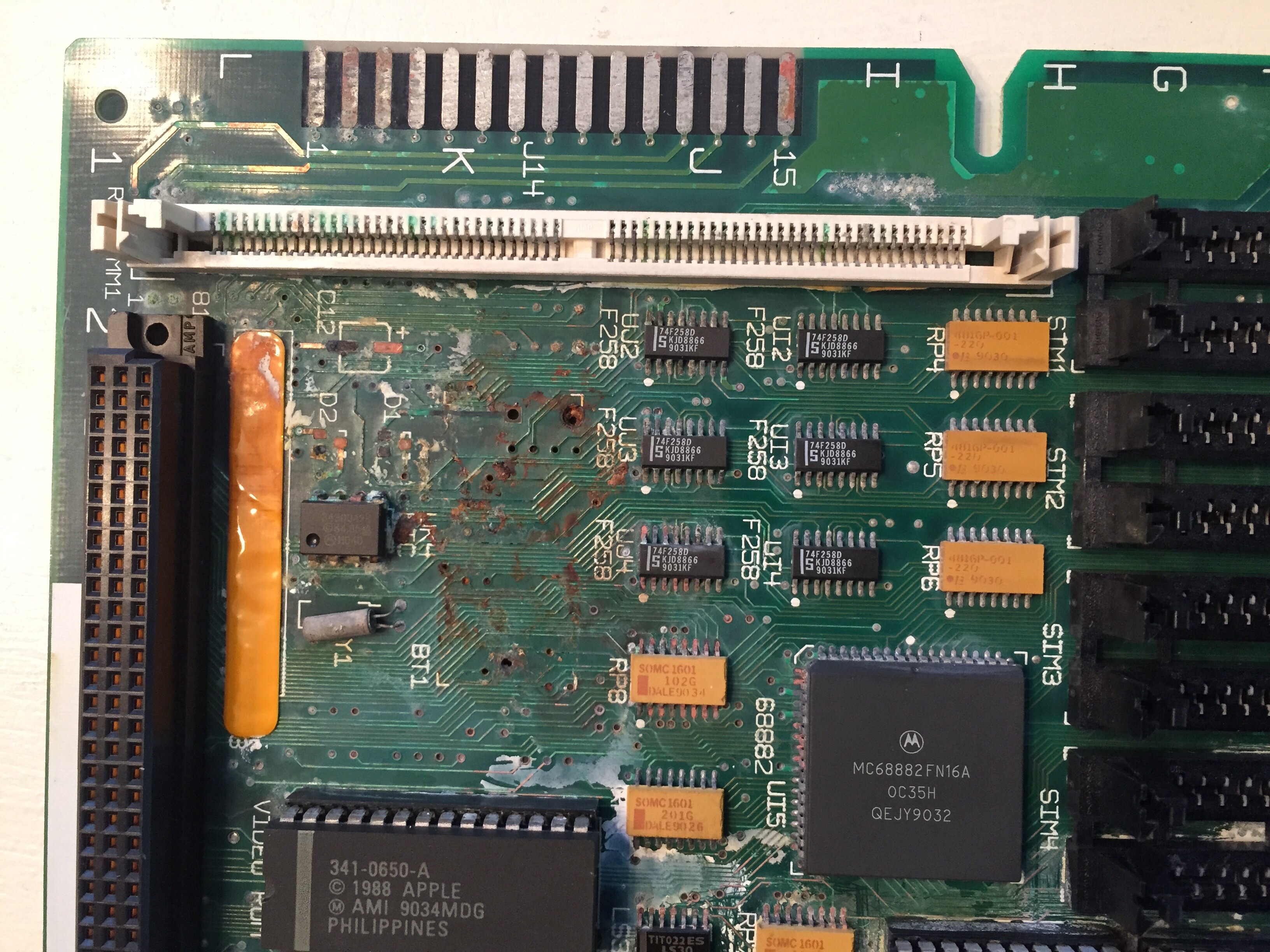

Per online instructions I washed it with lukewarm water and a couple drops of dishwashing liquid. Some of the white crud is stubborn. One of the battery holders metal clips is dissolved (yikes!) and it came off in the wash. Is this board even salvageable? I'm so angry an inexpensive little battery did this to my little Mac. He's been in the family for so long. It has an Ethernet card and was running 7.5.5 from a ZIP disk. I installed the mode32 to max the memory. Such a fun computer.

5 more photos added.

gsmcten's picture
Offline
Last seen: 9 months 3 weeks ago
Joined: Oct 4 2005 - 18:52
Posts: 2631
Re: My poor SE/30 battery exploded

LantzN,

My first impression from looking at all the pictures is that
you would be better off removing everything that is removable (RAM, etc.)
and getting yourself a new board.

Repairs to this one would be extensive.

Yes...I know. It's not easy picking up just the MB,
but sometimes you can pick one up off of eBay for a reasonable price.
Sometimes, you can even get a whole SE/30 for a reasonable price.

If I happen to see a listing for one I will send it your way.

Steven Smile

Make him an offer:

http://www.ebay.com/itm/APPLE-MAC-SE-30-MOTHERBOARD-BENCH-TESTED-WORKS-WELL-661-0536-FDHD-/371336319644?pt=LH_DefaultDomain_0&hash=item56755e929c

Or try this:

http://www.ebay.com/itm/Apple-Macintosh-SE-30-Computer-Model-M5119-Parts-or-Repair-/181762230003?pt=LH_DefaultDomain_0&hash=item2a51df86f3

Offline
Last seen: 5 hours 34 min ago
Joined: Jun 18 2010 - 13:54
Posts: 142
Re: My poor SE/30 battery exploded

gsmcten wrote:

http://www.ebay.com/itm/APPLE-MAC-SE-30-MOTHERBOARD-BENCH-TESTED-WORKS-WELL-661-0536-FDHD-/371336319644?pt=LH_DefaultDomain_0&hash=item56755e929c

----------------

Too bad this one is really an SE motherboard. Correctly identified in the description but the auction title is incorrect.
