Need this screw

I have a simple question.
I recently have purchased some components for my A2e.
The problem is I don't have the right nut and bolt to attach these to the back.

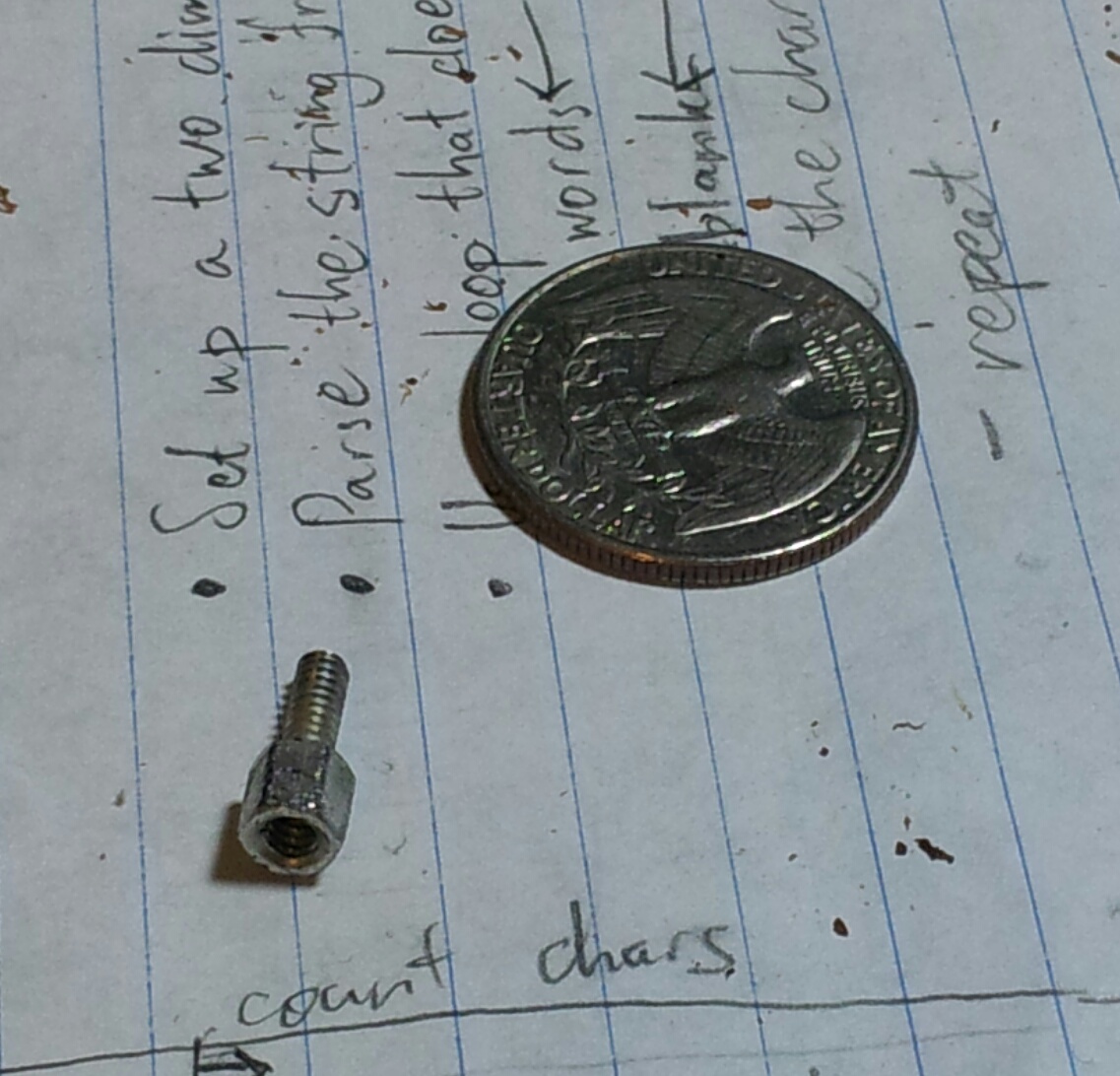

With this post, I have attached a picture of the screw that I need along with a quarter for size comparison.
Please help me identify this with name and place where I can possibly get them.

Thank you

AttachmentSize
Image icon screw283.17 KB
jwg1962's picture
Offline
Last seen: 2 days 17 hours ago
Joined: Jan 29 2012 - 07:17
Re: Need this screw

The place I usually find these is junk cards for PCs. Most of the newer video cards, older serial/parallel cards or any card with a connector on them will have these. Some will be "nutted" others will be screwed right into the connector. I visit our goodwill store and look through the bins for old PC cards that I can take these off of.

If you can't find any, I can send you a few in the mail. Just PM me your mailing address.

P.S. They may not match in color and length exactly, but they will work.

Jay

eeun's picture
Offline
Last seen: 4 days 5 hours ago
Joined: Dec 19 2003 - 17:34
Re: Need this screw

They're called standoff screws, and they're very common on computers. Sneaking one that may be the correct size from a PC monitor or other peripheral port is probably easiest.
This one on ebay looks like it. Short post, long thread.:
link

tkh
Offline
Last seen: 4 years 1 month ago
Joined: Jun 26 2013 - 16:12
Re: Need this screw

Got it, thank you!

Offline
Last seen: 2 months 2 weeks ago
Joined: May 27 2013 - 13:01
Re: Need this screw

The full name of those screws is...

Thread #4-40 Metal Jackscrew Standoffs. Head: Hex (barrel) Thread Length: 7mm (0.27") Product Length: 0.43" [11 mm]

Newegg sells them... 50 screws for $12.99:

http://www.newegg.com/Product/Product.aspx?Item=N82E16811993017
