Query about SW1-8 component on Computech Diplomat Communications Interface card in Apple iie

Hi forum members

We have an Apple iie that interfaces to a Facit N4000 tape punch/reader station (CNC). We also have a GNT 4607 tape punch/reader station and want to get that working with the Apple iie as a back up for the Facit but can't quite get there.

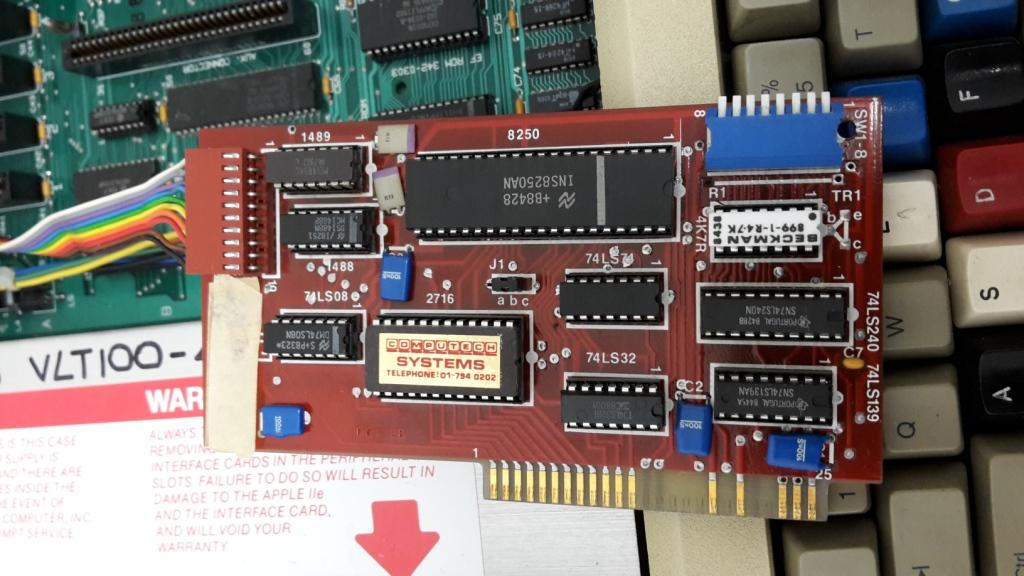

The interface card in the Apple is a Computech Diplomat Communications Interface card - see attached image.

Can anyone advise the function of each of the 8 switches of the SW1-8 component on the card?

Thanks in advance
