Is this rare? Apple IIe/GS upgrade

13 posts / 0 new
Last post
Offline
Last seen: 7 months 2 weeks ago
Joined: Sep 5 2013 - 16:49
Posts: 51
Is this rare? Apple IIe/GS upgrade
AttachmentSize
Image icon 20160709_163259.jpg981.32 KB
Image icon 20160709_163318.jpg1.41 MB

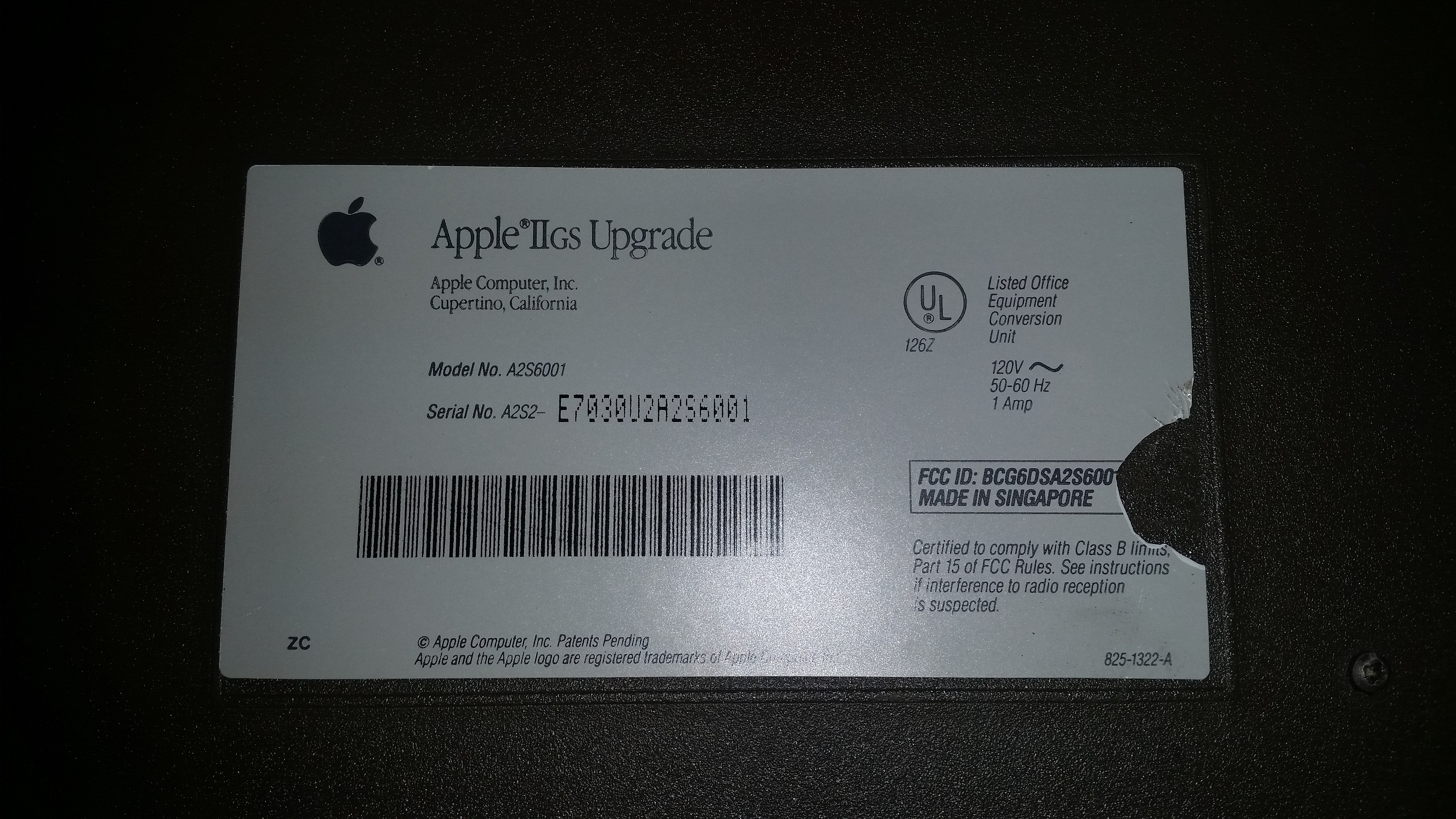

Picked it up this morning at a Garage Sale... I'd never seen one before.

Thank you,
Roger

transwarp II guy's picture
Offline
Last seen: 2 years 2 months ago
Joined: Mar 7 2013 - 08:55
Posts: 474
Re: Is this rare? Apple IIe/GS upgrade

It is fairly rare and valuable.

gsmcten's picture
Offline
Last seen: 3 years 2 weeks ago
Joined: Oct 4 2005 - 18:52
Posts: 2631
Re: Is this rare? Apple IIe/GS upgrade

dafivehole,

What Transwarp said.

This is the IIe to IIgs Upgrade.
They came in a kit that you bought from Apple.

They are pretty rare.

Congrats on a great find.

Steven Smile

Offline
Last seen: 6 months 1 week ago
Joined: May 27 2013 - 13:01
Posts: 817
Re: Is this rare? Apple IIe/GS upgrade

They are a bit on the rare side if you are looking for the modified case for it.

It was not a practical upgrade for many reasons and it did not sell too well which is why it is rare.

Dr. Webster's picture
Offline
Last seen: 4 hours 24 min ago
Joined: Dec 19 2003 - 17:34
Posts: 1717
Re: Is this rare? Apple IIe/GS upgrade

I'm trying to remember -- was this sold as a DIY kit, or did Apple only make it available for dealers to install?

gsmcten's picture
Offline
Last seen: 3 years 2 weeks ago
Joined: Oct 4 2005 - 18:52
Posts: 2631
Re: Is this rare? Apple IIe/GS upgrade

Dr. Webster,

If I remember reading correctly, it could be done either way.
You could take your IIe to Apple and have it installed,
or you could buy the kit and do it yourself.

I remember seeing an auction on eBay about a year ago
where the seller had bought an extra Lid with the IIgs
emblem where the IIe emblem used to be.
He also had the box it came in.

Steven Smile

Offline
Last seen: 7 months 2 weeks ago
Joined: Sep 5 2013 - 16:49
Posts: 51
Re: Is this rare? Apple IIe/GS upgrade

So I started playing around with this and it powers up just fine... the little apple goes back and forth, side to side looking for a disk drive I assume? All I have are the older Disk II drives that connect internally but this has a newer connector on the rear of the unit... do they make adapters for this? Do I have to use a newer disk drive? What are my options?

Thank you,
Roger

Offline
Last seen: 6 months 1 week ago
Joined: May 27 2013 - 13:01
Posts: 817
Re: Is this rare? Apple IIe/GS upgrade

So I started playing around with this and it powers up just fine... the little apple goes back and forth, side to side looking for a disk drive I assume? All I have are the older Disk II drives that connect internally but this has a newer connector on the rear of the unit... do they make adapters for this? Do I have to use a newer disk drive? What are my options?

Thank you,
Roger

You can install a new cable (you can call it an adapter if you want to) into your Disk II drive and then connect it to the Smartport (newer connector on the rear of the unit...) but even then you will only be able to attach one drive since the Disk II cannot be daisychained to another Disk II drive.

-OR-

If you have two Disk II drives that you want to use on the iigs and a Disk II controller card, you can install that card in slot 6 of the Apple iiGS and connect the two Disk II drives to the Disk II controller card and this way you will have the use of both drives without the need for daisychaining them.

If you choose to use the Disk II controller card in slot 6, you will have to go into the Apple iigs control panel and change slot 6 to "your card".

Offline
Last seen: 7 months 2 weeks ago
Joined: Sep 5 2013 - 16:49
Posts: 51
Re: Is this rare? Apple IIe/GS upgrade

I couldn't find the cable you're talking about... it looks like I just need to get a newer disk drive (A9M0107)?

Thanks again,
Roger

Offline
Last seen: 10 months 3 weeks ago
Joined: Jan 24 2005 - 16:20
Posts: 356
Re: Is this rare? Apple IIe/GS upgrade

I'm trying to remember -- was this sold as a DIY kit, or did Apple only make it available for dealers to install?

The original Apple IIGS upgrade was only available from authorized dealers and required dealer installation.

Many years later a company called Shreve sold an aftermarket pan with a ROM 01 motherboard (not nearly as nice as the original but functional) for schools (and individuals) to upgrade their IIe machines on the cheap.

Offline
Last seen: 10 months 3 weeks ago
Joined: Jan 24 2005 - 16:20
Posts: 356
Re: Is this rare? Apple IIe/GS upgrade

Picked it up this morning at a Garage Sale... I'd never seen one before.

You lucked out. If it works, it's worth $400-$600 to *some* people.

Offline
Last seen: 7 months 2 weeks ago
Joined: Sep 5 2013 - 16:49
Posts: 51
Re: Is this rare? Apple IIe/GS upgrade

So far, it seems to work fine... I only paid $5 for it. The guy was moving and selling all of his old computers for $5 each. I wasn't interested in another IIe but when I saw the IIgs badge, I figured I had to get it.

It definitely came from a school... it has the school name and some numbers lightly engraved on the lid. I also picked up two of the Apple II disk drives ($5 for both) and I got an IBM 5170 and Atari 1200XL for $5 each.

Thank you,
Roger

Offline
Last seen: 4 years 4 months ago
Joined: Apr 6 2009 - 11:42
Posts: 12
Re: Is this rare? Apple IIe/GS upgrade

You might want to check the ROM version. ROM 00 had some issues with it, can't recall what though, and upgrade to a ROM 01. Just have to plug the newer ROM in. Although being a school computer would more than likely already have the upgrade.

And the nice thing about this motherboard is, you can use either a IIe keyboard or an adb keyboard, a IIe power supply or IIGS power supply, cards that support IIGS such as PC Transporter.

But a definite must would be a Hard drive of some kind via a SCSI card, CFFA card, Microdrive, VS drive, etc, to be able to run GSOS 6.0.1-6.0.3.

The case itself is probably worth as much as the computer complete. I saw an empty upgrade case go for $400, and this was a few years back.
