RGB Card hard-wired to Motherboard

2 posts / 0 new
Last post
Offline
Last seen: 9 months 1 week ago
Joined: Jan 11 2011 - 13:23
Posts: 16
RGB Card hard-wired to Motherboard
AttachmentSize
Image icon IMG_2294.jpg2.36 MB
Image icon IMG_2297.JPG1.91 MB

Hi,

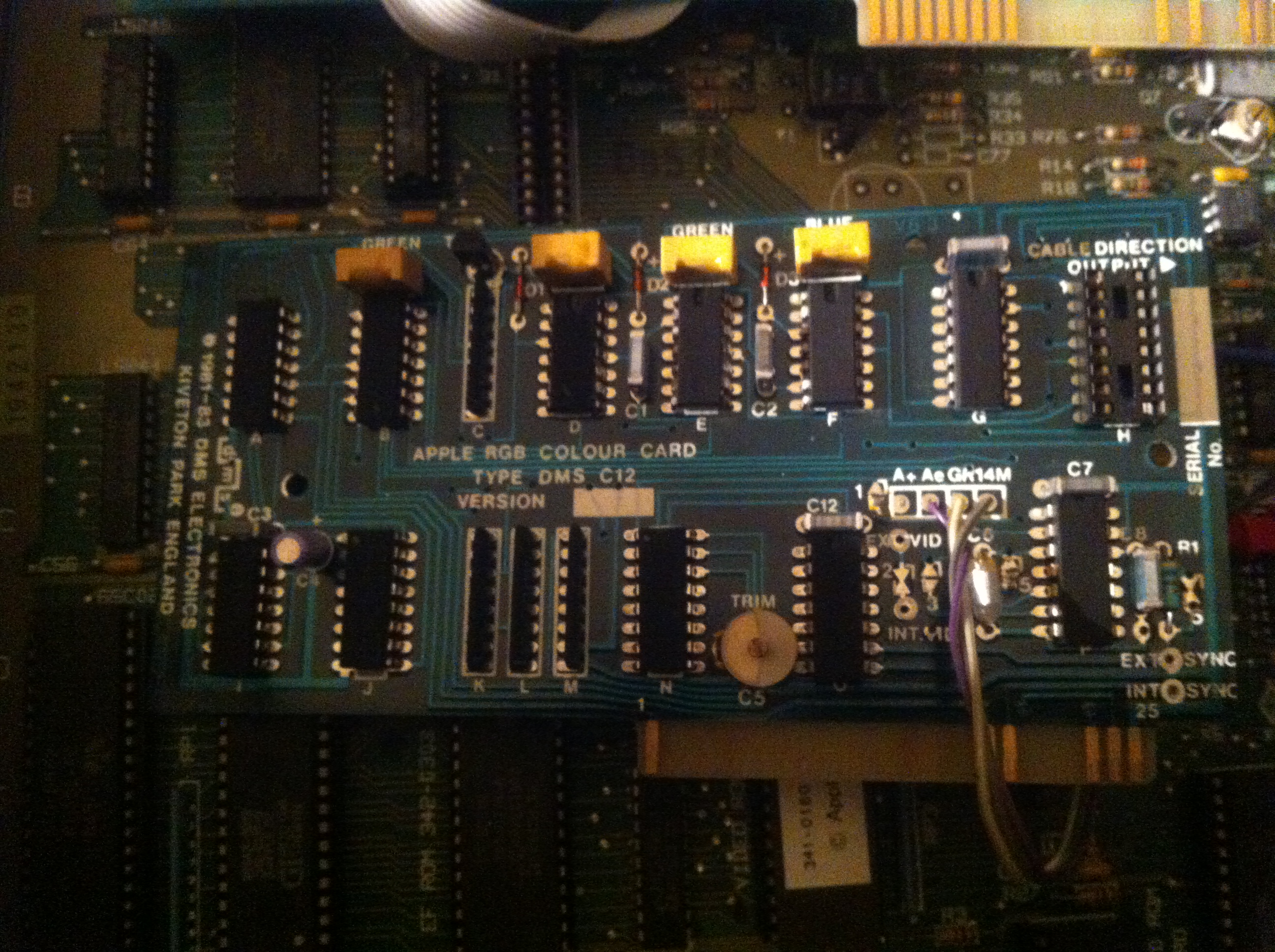

My latest acquisition, a ][e from '84 has a RGB Card that has 3 wires soldered on 1 side onto 3 lined-up and clearly labelled contacts on the card and soldered onto pins of what looks like C65 and C57, but I could be wrong on those labels.

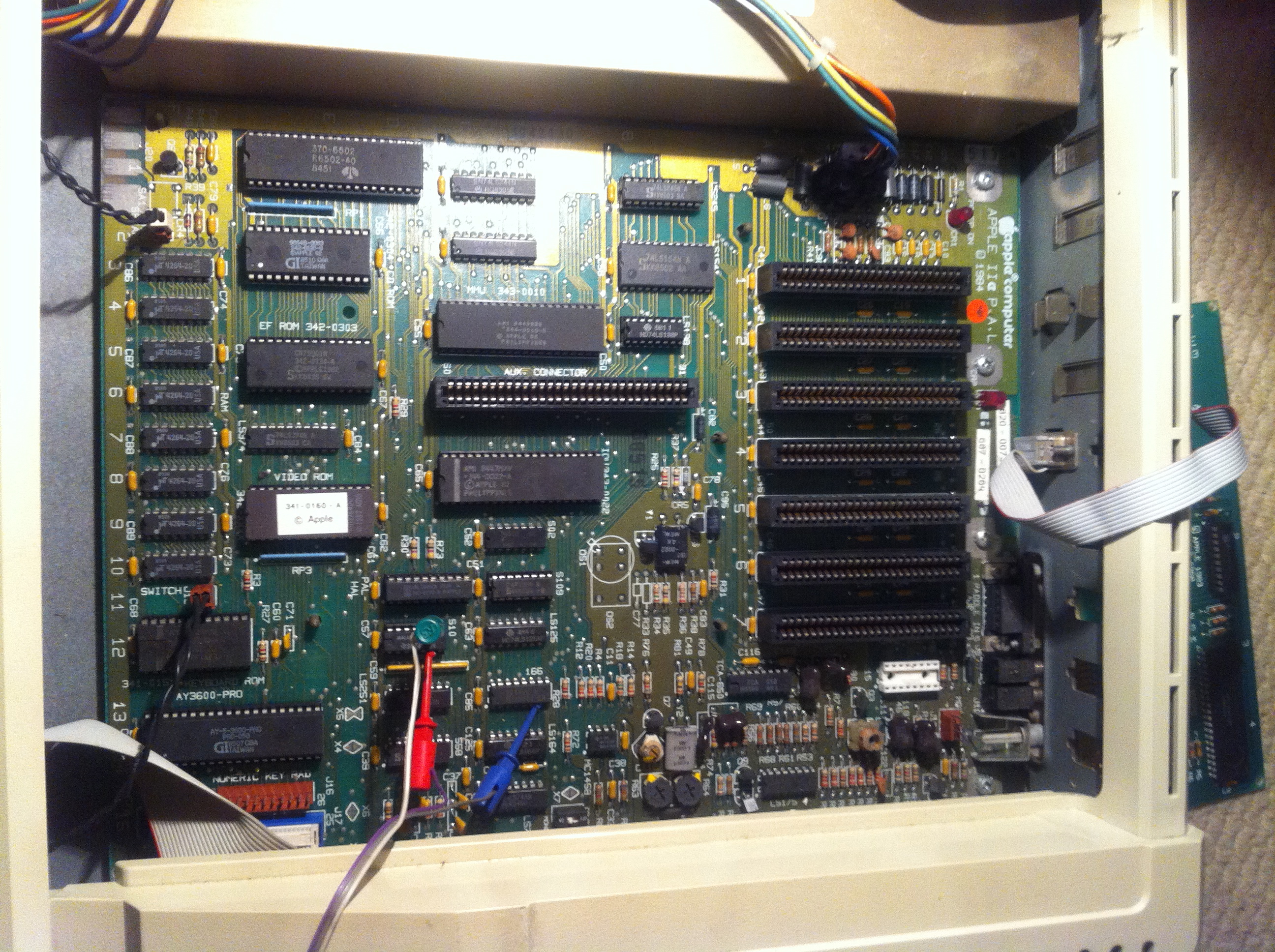

I have attached pictures of the card and motherboard.

Has anybody got an idea why that would have been done. I am guessing the RGB card didn't need such kind of surgery to work.

Many thanks!

gsmcten's picture
Offline
Last seen: 5 years 8 months ago
Joined: Oct 4 2005 - 18:52
Posts: 2629
Re: RGB Card hard-wired to Motherboard

Radersan,

The Blue and ReD "Clips" wrap around the chip pins.
I would say the third wire is somehow wrapped around the other chip pin and if you lift the chip the wire will come away. Smile

Give it a shot.
