Sanyo VM-4209 Video Adapter Help?

4 posts / 0 new
Last post
Offline
Last seen: 3 years 6 months ago
Joined: Jun 17 2015 - 22:10
Posts: 135
Sanyo VM-4209 Video Adapter Help?
AttachmentSize
Image icon ddd.jpg223.93 KB

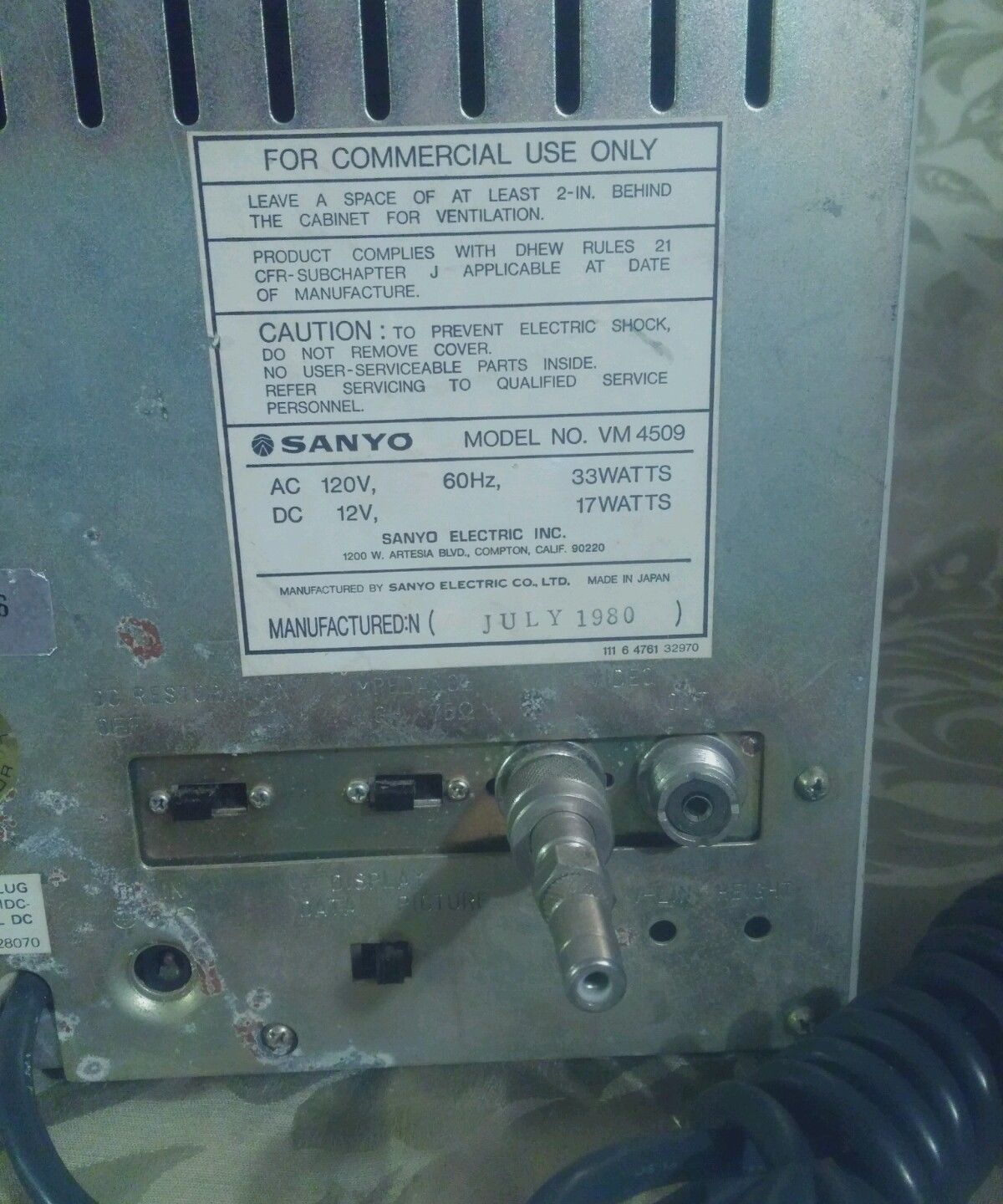

I'm trying to find the adapter in the photo. If someone knows were I can find one please let me know. I would like to use it on my VM-4209 monitor.

Offline
Last seen: 2 years 9 months ago
Joined: Jul 15 2014 - 10:52
Posts: 43
Re: Sanyo VM-4209 Video Adapter Help?

It looks like a standard male Type N to female RCA plug converter. Any chain of adapters that has a male Type N at one end and a female RCA plug at the other should do, although if you make it too long, attenuation of the video signal might result. Type N to BNC and BNC to RCA in all gender combinations are fairly common. No significant attenuation should result from combining the two adapters I named.

6502enhanced's picture
Offline
Last seen: 1 year 3 months ago
Joined: Feb 23 2006 - 02:24
Posts: 280
Re: Sanyo VM-4209 Video Adapter Help?

Here http://m.ebay.de/itm/1pce-Adapter-UHF-PL259-male-plug-to-RCA-TV-female-jack-RF-connector-straight-M-F-/281116679639?txnId=1650889542018

it is.

Works perfectly all right with my Sanyo.

Offline
Last seen: 3 years 6 months ago
Joined: Jun 17 2015 - 22:10
Posts: 135
Re: Sanyo VM-4209 Video Adapter Help?

Thank you both very much for your help! I really appreciate the information and links.
