What is difference between language card and 16K RAM expansion card?

8 posts / 0 new
Last post
Offline
Last seen: 4 years 8 months ago
Joined: Jan 13 2016 - 16:17
Posts: 5
What is difference between language card and 16K RAM expansion card?
AttachmentSize
Image icon 004.JPG3.91 MB

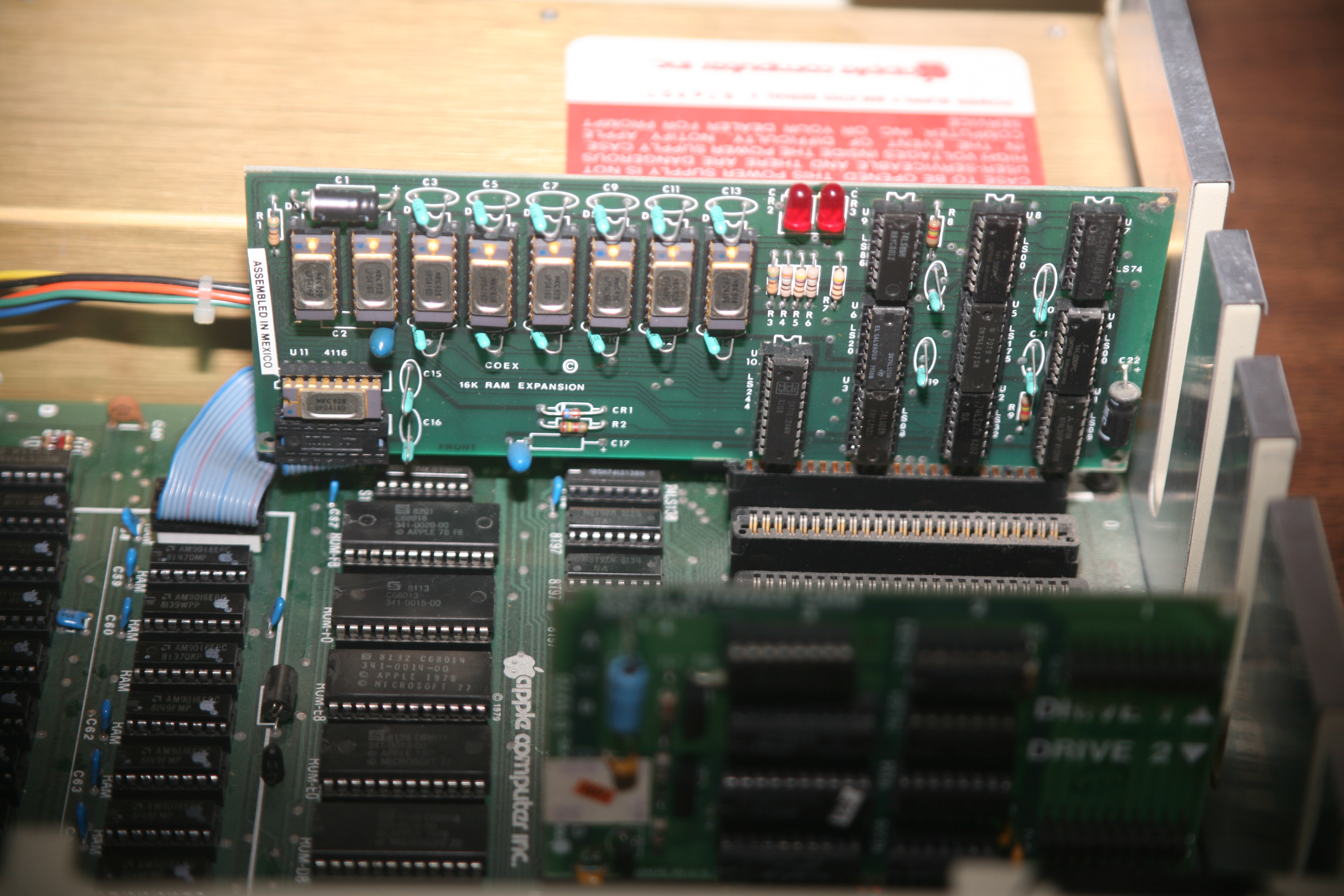

What is the difference between the language card and 16K RAM expansion card? I have an Apple II Plus with a card in slot 0 labeled "16K RAM EXPANSION". I have looked at photos of language cards, and they look different from my 16K RAM expansion card. Attached is a photo of my card.

transwarp II guy's picture
Offline
Last seen: 1 year 5 months ago
Joined: Mar 7 2013 - 08:55
Posts: 474
Re: What is difference between language card and 16K RAM ...

What is the difference between the language card and 16K RAM expansion card? I have an Apple II Plus with a card in slot 0 labeled "16K RAM EXPANSION". I have looked at photos of language cards, and they look different from my 16K RAM expansion card. Attached is a photo of my card.

One of the major differences is that the language card has a built in autostart ROM... which was useful for Apple II original users.

Dog Cow's picture
Offline
Last seen: 1 year 5 months ago
Joined: Dec 11 2008 - 16:26
Posts: 555
Re: What is difference between language card and 16K RAM ...

RichardF, from the photo, your card does not have the Autostart ROM on it.

Offline
Last seen: 6 days 16 hours ago
Joined: May 27 2009 - 01:37
Posts: 962
Re: What is difference between language card and 16K RAM ...

That's really the only difference IIRC. They all add 16k ram.

Offline
Last seen: 6 days 16 hours ago
Joined: May 27 2009 - 01:37
Posts: 962
Re: What is difference between language card and 16K RAM ...

That's really the only difference IIRC. They all add 16k ram.

Offline
Last seen: 3 hours 3 min ago
Joined: Dec 20 2003 - 10:38
Posts: 443
Re: What is difference between language card and 16K RAM ...

A 16k card was called a language card because it was used to load either applesoft basic or integer basic onto that 16k. The Apple card had a ROM socket for the autostart ROM. A lot of people bought 3rd party cards because they were cheaper and if you had a II+ then you didn’t need the ROM socket. Even a lot of II owners replaced the motherboard ROM with the autostart ROM.

Offline
Last seen: 11 months 4 weeks ago
Joined: Dec 3 2015 - 20:45
Posts: 52
Re: What is difference between language card and 16K RAM ...

I literally just purchased one to experiment again on my standalone A2+ motherboard. It's been many years since I owned one but I still recall from my
ancient memory the switches:
C081 twice for write only
C080 once for read only
C083 (twice?) for read/write
C082 once to turn off.
I remember copying D000-FFFF to it then modify and r/w enable my "cannibalized" pseudo-rom, fun stuff !!
It will be a few weeks until I get all the stuff to try it out again, can't wait !!

Larry G

Eudimorphodon's picture
Offline
Last seen: 4 days 10 hours ago
Joined: Dec 21 2003 - 14:14
Posts: 1204
Re: What is difference between language card and 16K RAM ...

It's interesting how it has those CLASSY blue ceramic RAM chips in it. I'd think a clone card would have come late enough chronologically that it would have come with plastic packages. Maybe it came unpopulated and someone stuffed it with salvaged chips?
