Z80 Card identification needed

2 posts / 0 new
Last post
tokabln's picture
Offline
Last seen: 1 month 2 weeks ago
Joined: Dec 30 2015 - 10:48
Posts: 209
Z80 Card identification needed
AttachmentSize

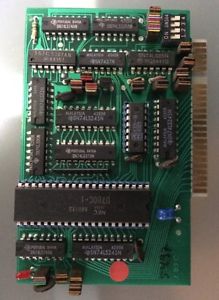

Image icon Z80 Card 28.34 KB

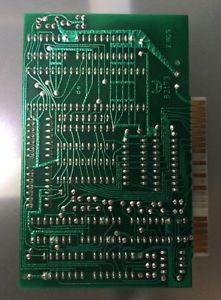

Image icon Z80 Card solderside28.77 KB

Does anybody know who has developed the Z80 Card and where I might be able to find a manual describing the DIP Switch settings?

See attached pictures.

Many thanks for some kind help in identifying the card

amauget's picture
Offline
Last seen: 3 days 11 hours ago
Joined: Jan 3 2011 - 11:34
Posts: 278
Re: Z80 Card identification needed

Hello,

Normally, on all the Z80 cards, the DIP swithches are off, like shown on this picture.
According to the Microsoft Z80 Softcard schematic, the switches are used to activate DMA, IRQ, NMI and an alternate decoding scheme.
