Fried iBook component... any ideas?

14 posts / 0 new
Last post
Offline
Last seen: 2 years 8 months ago
Joined: Dec 19 2003 - 17:40
Posts: 566
Fried iBook component... any ideas?
AttachmentSize
Image icon oops.jpg173.4 KB
Image icon IMG_2307.jpg267.25 KB
Image icon IMG_4724.jpg94.56 KB
Image icon IMG_4725.jpg183.21 KB

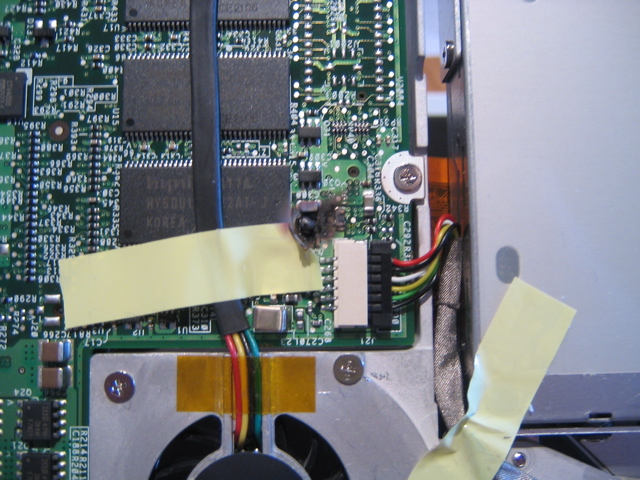

IMAGE(http://www.applefritter.com/files/oops.jpg)

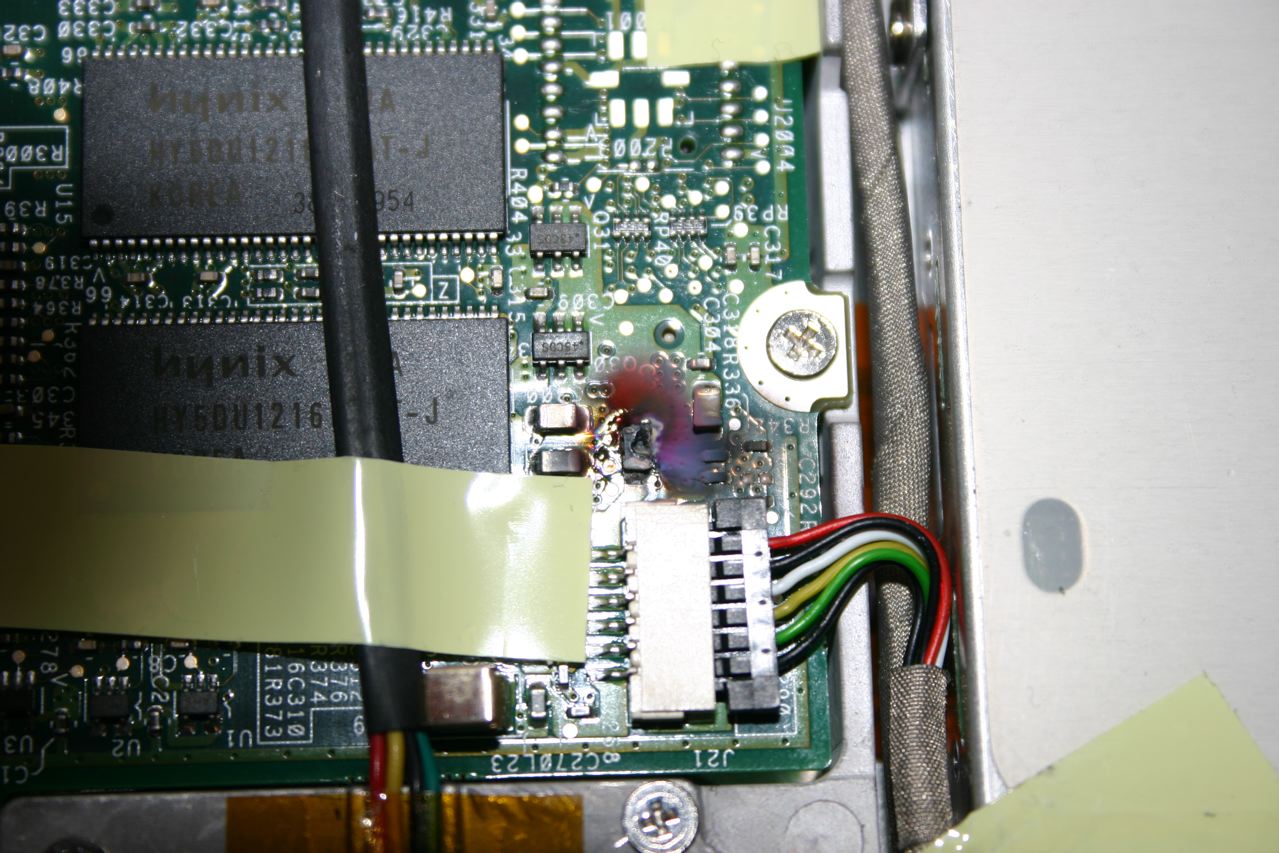

After having a poke about in my iBook I think I've found the source of my backlight problems! I'm guessing that blob of burnt metal shouldn't be a blob of burnt metal Wink

Any ideas guys?

TOM

Krest's picture
Offline
Last seen: 10 years 11 months ago
Joined: Sep 29 2004 - 12:39
Posts: 96
Warranty?

Warranty?

Offline
Last seen: 2 years 8 months ago
Joined: Dec 19 2003 - 17:40
Posts: 566
Re: Warranty?

Krest wrote:
Warranty?

That ran out about a week before it broke ::)

TOM

iantm's picture
Offline
Last seen: 1 year 10 months ago
Joined: Apr 2 2005 - 14:01
Posts: 709
1.0 ghz iBook G4?

Let me guess, this is a 1.0 ghz 12" iBook. I've seen this before. It's quite rare. I'd put your machine back together, call Applecare and explain that you saw smoke come out of your computer prior to the backlight issue popping up. They will step up and take care of this.

Offline
Last seen: 2 years 8 months ago
Joined: Dec 19 2003 - 17:40
Posts: 566
Re: 1.0 ghz iBook G4?

iantm wrote:
Let me guess, this is a 1.0 ghz 12" iBook. I've seen this before. It's quite rare. I'd put your machine back together, call Applecare and explain that you saw smoke come out of your computer prior to the backlight issue popping up. They will step up and take care of this.

Even if it's more than a year out of warranty? I've been using it for the past year with an external monitor... I just finally got around to taking a look now. But yeah you're right, 1.0GHz 12".

TOM

iantm's picture
Offline
Last seen: 1 year 10 months ago
Joined: Apr 2 2005 - 14:01
Posts: 709
It's worth a shot

Considering that the iBook G4 isn't known for having the sturdiest of logic boards, Apple will likely be willing to work with you. Even though it's been out of warranty for a while, I'm sure that they'll be well motivated to help you out. Mention the smoke (when this happens there is usually a fair amount of smoke and a nasty burnt plastics smell that comes with it), and smell, and you should be fine. This IS a product issue in my professional opinion. Give it a whirl.

Offline
Last seen: 2 years 8 months ago
Joined: Dec 19 2003 - 17:40
Posts: 566
Re: It's worth a shot

iantm wrote:
Considering that the iBook G4 isn't known for having the sturdiest of logic boards, Apple will likely be willing to work with you. Even though it's been out of warranty for a while, I'm sure that they'll be well motivated to help you out. Mention the smoke (when this happens there is usually a fair amount of smoke and a nasty burnt plastics smell that comes with it), and smell, and you should be fine. This IS a product issue in my professional opinion. Give it a whirl.

OK it's worth a shot I suppose!

TOM

Jon
Jon's picture
Offline
Last seen: 8 years 5 months ago
Joined: Dec 20 2003 - 10:38
Posts: 2804
The worst they'll do is say n

The worst they'll do is say no, or offer to charge you $700 for a mobo... Smile j/k

Offline
Last seen: 2 years 8 months ago
Joined: Dec 19 2003 - 17:40
Posts: 566
Replacement...

Does anybody have an iBook G4 12" handy that could snap a piccie of the motherboard. I'm gonna try and work out if that part is replaceable. If it's anything like the one next to it then it shouldn't be a problem to replace. But if anyone could get a part number or suchlike it would make my life a lot easier.

Also, any ideas about the best way to clean the burn marks off the motherboard?

TOM

Offline
Last seen: 2 years 8 months ago
Joined: Dec 19 2003 - 17:40
Posts: 566
Hmm...

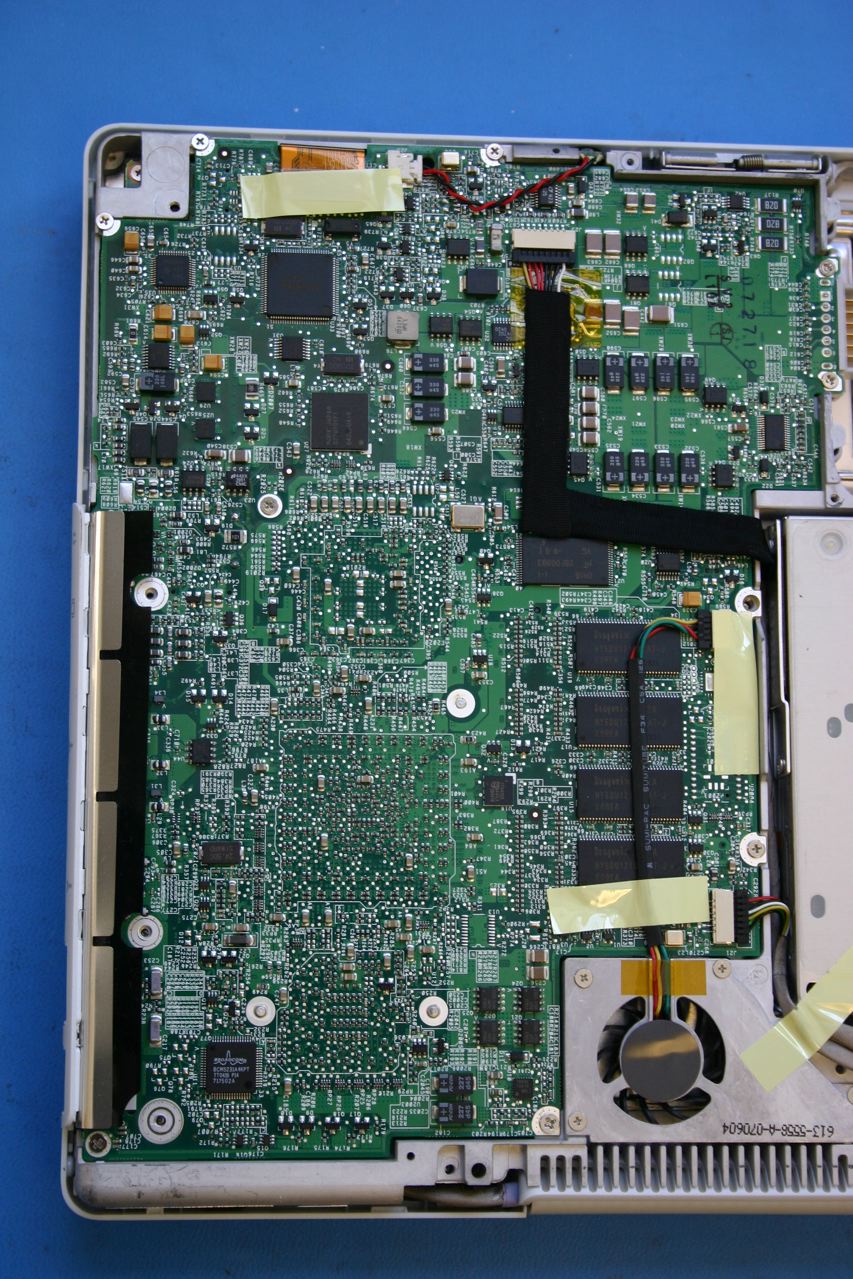

OK, I've got some motherboard scans from iantm... however I can't make out a part number on the component. It looks the same as the one next to it, but is there any way to identify it?

TOM

Offline
Last seen: 2 years 8 months ago
Joined: Dec 19 2003 - 17:40
Posts: 566
...

Anybody?

TOM

Offline
Last seen: 6 months 3 weeks ago
Joined: Jan 3 2005 - 21:12
Posts: 46
Post these scans? :)

Hi Tom,

Can you please post these scans (or email them to me?) I'll pass them on to some friends of mine who do PCB design/rework and see if they have any suggestions.

Offline
Last seen: 2 years 8 months ago
Joined: Dec 19 2003 - 17:40
Posts: 566
Sure...

I've attached them to the original post.

TOM

Offline
Last seen: 2 years 8 months ago
Joined: Dec 19 2003 - 17:40
Posts: 566
Still nothing...

Moved to Hardware Repair Help... but surely somebody must have an idea!

TOM
