Apple III monitor:

12 posts / 0 new
Last post
Offline
Last seen: 1 day 13 hours ago
Joined: Aug 13 2013 - 17:05
Posts: 9
Apple III monitor:

Hi,

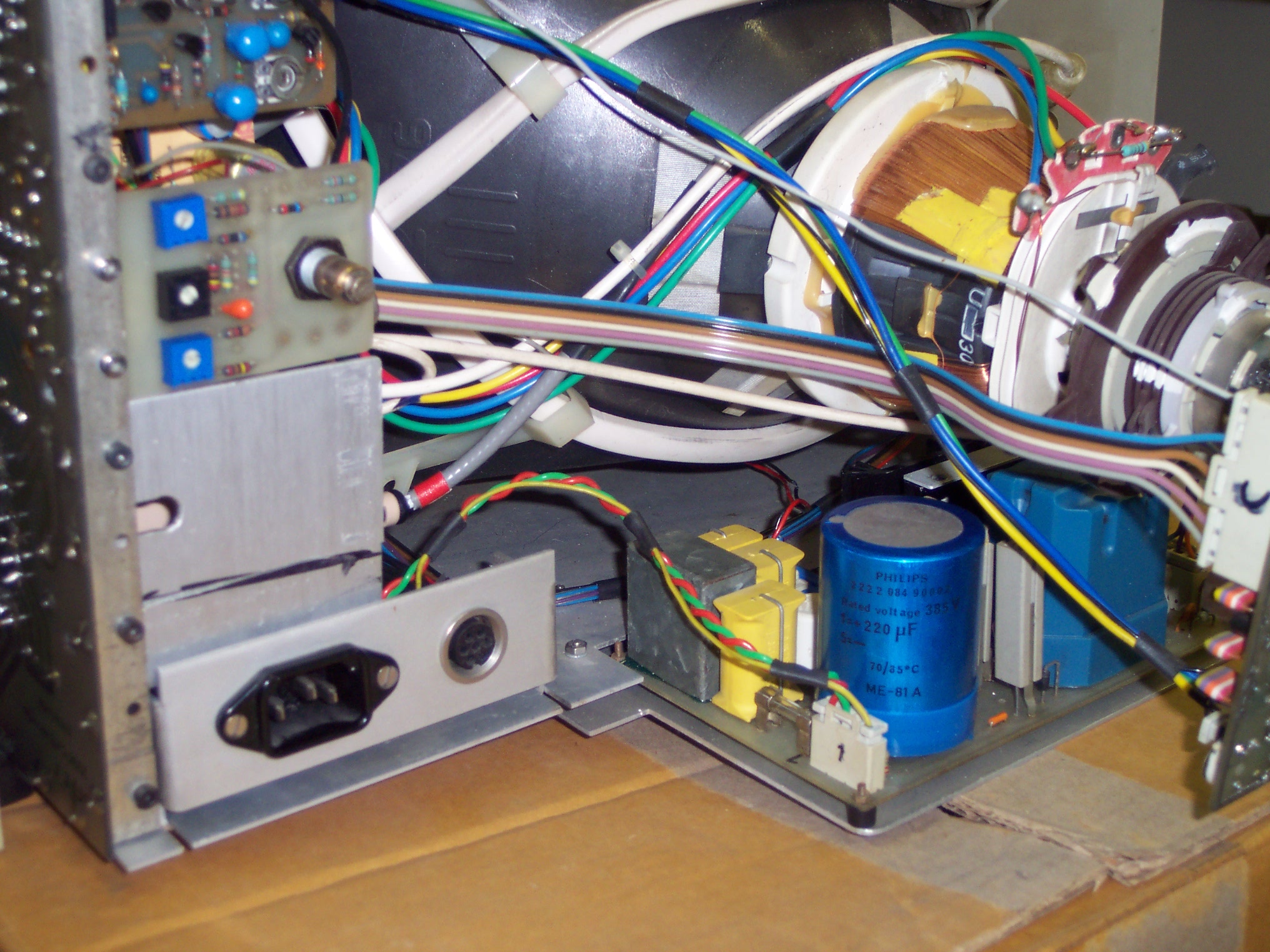

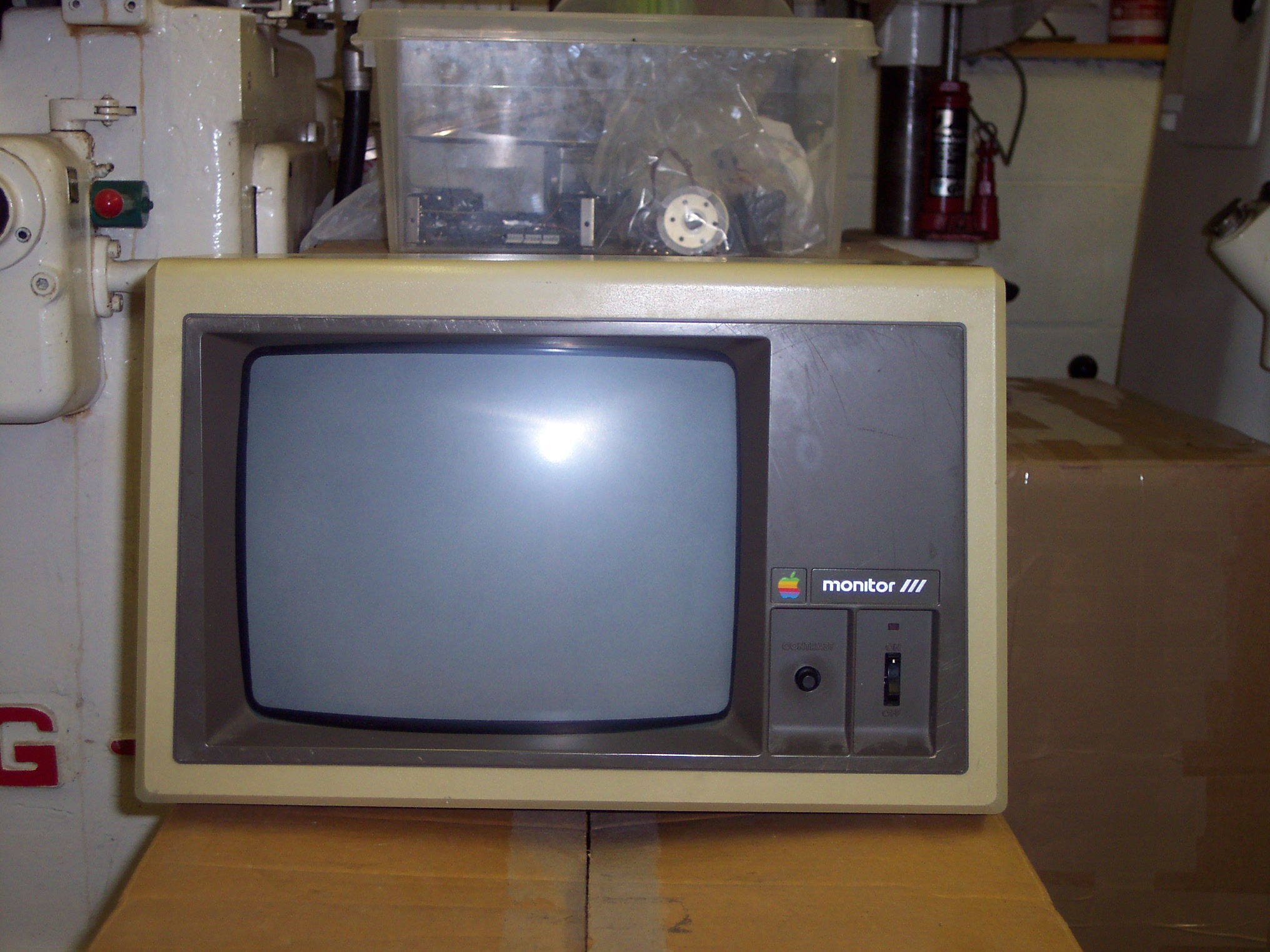

I have this Apple III monitor BUT it is not a normal one (like the A3M0039).

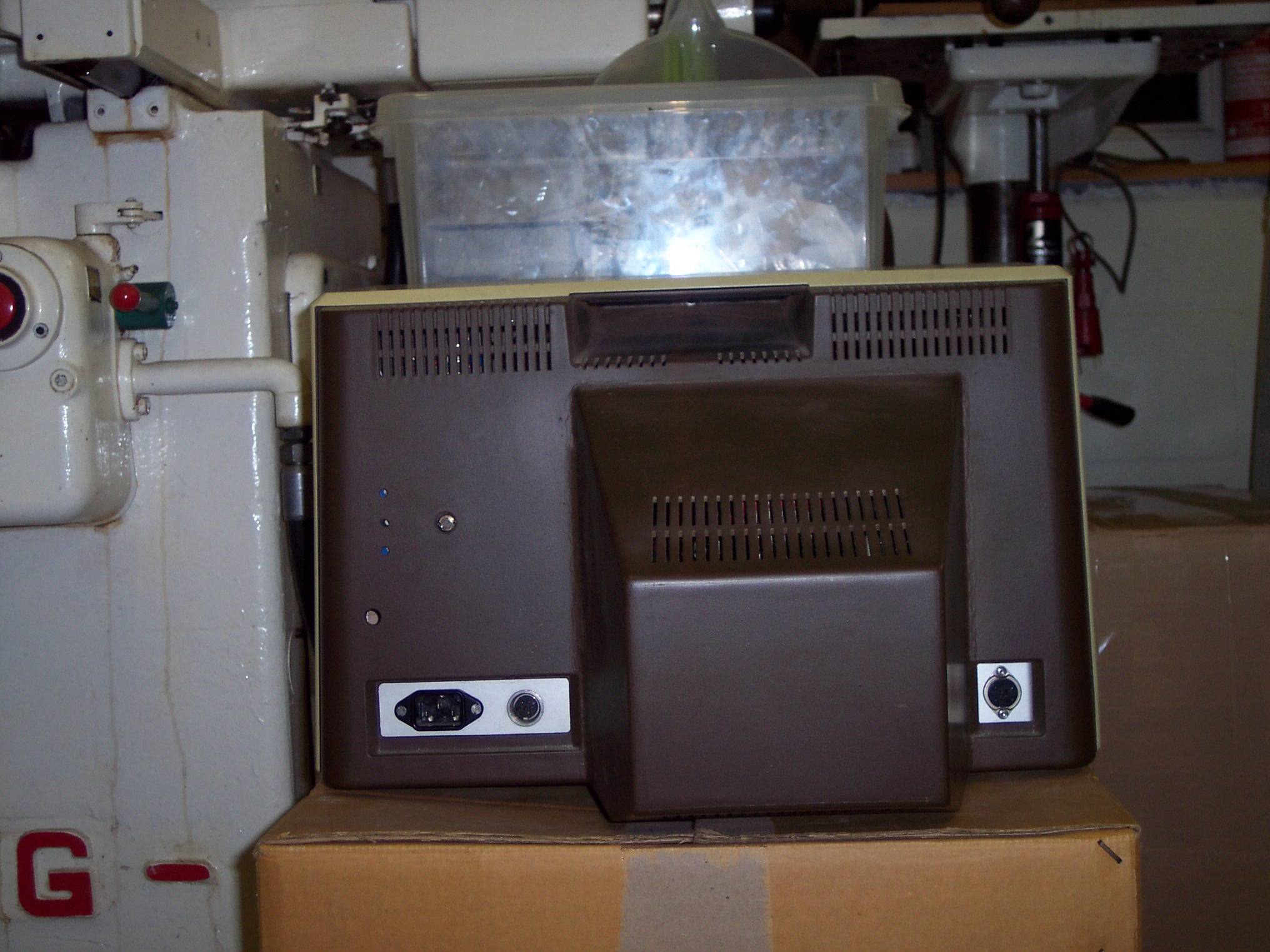

It has this very strange video output (just like a (mini) DIN 7-port).
I live in Belgium and bought it in the Netherlands. It has 220 Volt.
It also has a main PCB bpoard NOT from Apple but from ´Elcoma´ (which was a former division of Philips in Eindhoven).
Could anyone tell me anything about it; could it be a/(one of the first) prototype(s) of an Apple III monitor?

Thanks in advance for the answer

gsmcten's picture
Offline
Last seen: 11 months 2 weeks ago
Joined: Oct 4 2005 - 18:52
Posts: 2631
Re: Apple III monitor:

twallenta,

Is it possible that this version of the Monitor /// was manufactured specifically for the European countries?

Steven Smile

Offline
Last seen: 1 day 13 hours ago
Joined: Aug 13 2013 - 17:05
Posts: 9
Re: Apple III monitor:

It is possible but I don´t know!

resman's picture
Offline
Last seen: 5 months 3 weeks ago
Joined: Feb 9 2006 - 12:41
Posts: 215
Re: Apple III monitor:

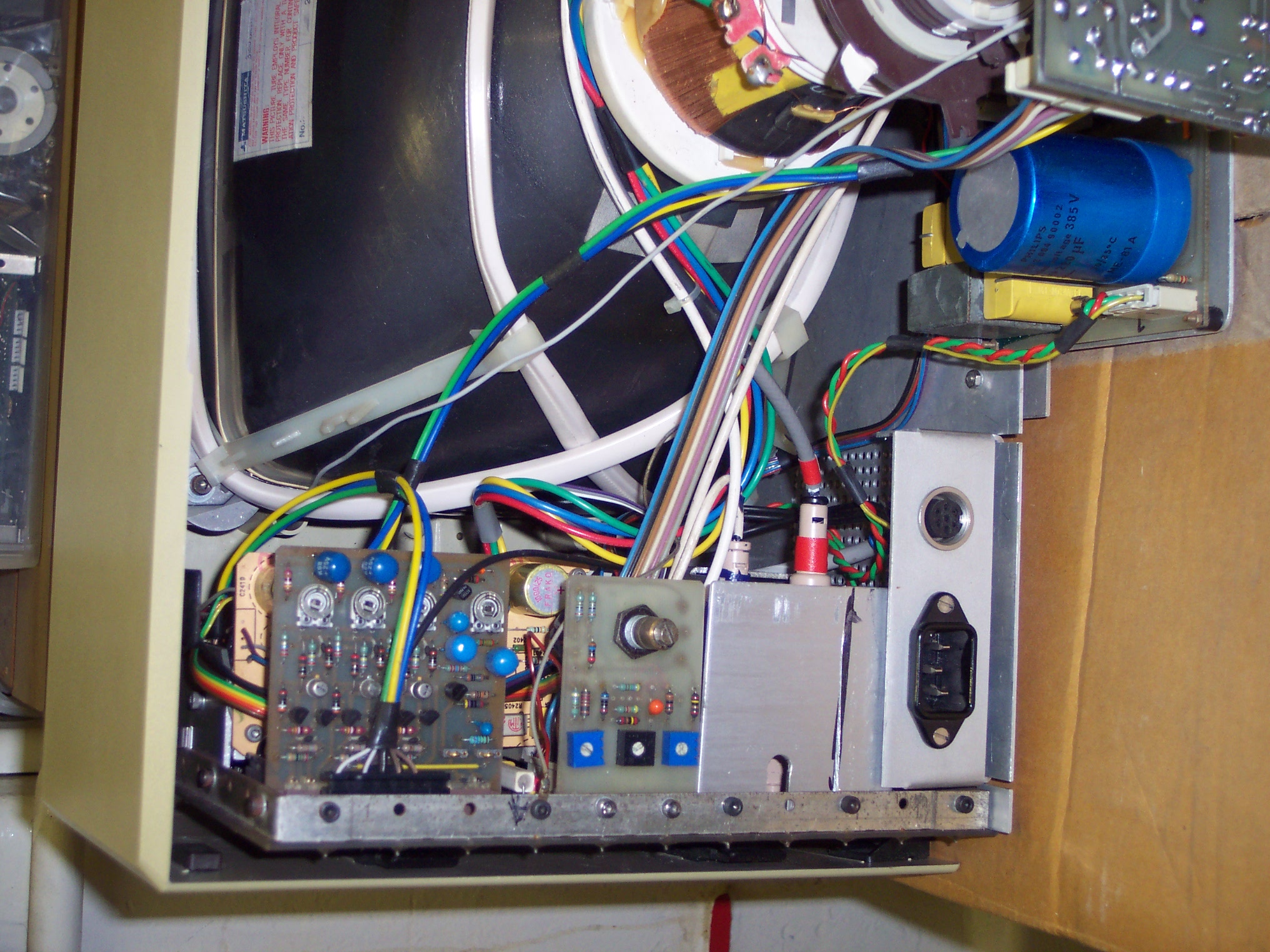

The PCB on the back of the yoke is labeled Apple /// Video RGB. You don't suppose this is some kind of RGB conversion? Pretty cool.

Dave...

Offline
Last seen: 3 years 7 months ago
Joined: Apr 10 2006 - 20:01
Posts: 1013
Re: Apple III monitor:

Given that European systems often deal with RGB (think SCART) that might very well be.

lefevere's picture
Offline
Last seen: 1 year 4 months ago
Joined: Apr 13 2004 - 20:40
Posts: 57
Re: Apple III monitor:

i have 5 Apple III's, 3 from Germany, 2 from Belgium
the 3 from Germany are upgraded to the Plus, (Apple III upgrade kit) and to replace the Quertz keyboard by a Qwerty
the 2 from Belgium, Qwerty & Azerty

there where 2 versions of the monochrome monitors
Monitor ///

... more pictures

Offline
Last seen: 1 day 13 hours ago
Joined: Aug 13 2013 - 17:05
Posts: 9
Re: Apple III monitor:

Hallo Herman,

Naar ik zie ben jij ook van Belgie!
Je schrijft dat er tewee versies van Apple III monitoren zijn maar wanneer je mijn foto´s bekijkt zal je moeten concluderen dat er nog een andere (prototype?) versie van deze monitor bestaat! Misschien heb je een link naar een website waar ik meer informatie kan halen betreffende de ontwikkeling en/of producte van de Apple III monitors!

Met vriendelijke groet,
Toon

Offline
Last seen: 2 years 9 months ago
Joined: Jan 24 2005 - 16:20
Posts: 356
Re: Apple III monitor:

Quote:
there where 2 versions of the monochrome monitors

Well, I guess that depends on if you don't count the beige, gray and black faceplates, the green screen with or without the anti-glare filter, the green screen vs. the rarer amber screen or SUPER rare (as in unicorn rare) red screen.

EDIT - and I forgot the b/w version with the green filter. Woof.

speedyG's picture
Offline
Last seen: 3 weeks 2 days ago
Joined: Nov 16 2011 - 07:45
Posts: 2495
Re: Apple III monitor:

Resulting from the rear picturetube PCB this is definitly a RGB Monitor.
The problen will be, to find documents about the pinouts of the connectors.
Maybe that at least the plugconnectors of that monitor are similar with other ancient Philips RGB Monitors......
In old Philips RGB Monitors the 5 pin DIN has been very common.... so i guess it to be the Standard Plug from Philips.
In some documents at asimov and in the internet that standard is collectable.
Be aware that the Philips RGB Monitors are analog - NOT TTL !
Maybe if you have another system out of the II series you may be able to test the Monitor with the RGB Card from IBS ( AP3 RGB Card ).
At ebay within the last months there has been a guy offering a card from Blaupunkt that might be usable with that Monitor.....
speedyG

Offline
Last seen: 1 day 13 hours ago
Joined: Aug 13 2013 - 17:05
Posts: 9
Re: Apple III monitor:

Hi speedyG,

I am thankfull for your comment on this issue. As I have dsecribed before I am a total laymen (ein Laie) when it comes to electronics, BUT concluding in your comment, you know much about it. Therefor I have some quiestions for you which you might be willing to answer:
You mentioned ´asimov documents´ in your reply; what are they and where can I find them (on the internet?)
You also say something about a RGB card from IBS (AP3 RGB card) What do you mean by this? (is this a Apple III RGB interface card which you have to use in a Apple III computer??)
Maybe you can point me out to some technical sites (maybe from Apple itself) that know more of the research/marketing/development in particual for the Apple III monitor?

Schönen Gruss,
Twallenta

gsmcten's picture
Offline
Last seen: 11 months 2 weeks ago
Joined: Oct 4 2005 - 18:52
Posts: 2631
Re: Apple III monitor:

Twall,

Start here:

ftp://ftp.apple.asimov.net/pub/apple_II/images/games/adventure

Then work your way back up the main directory.

Steven Smile

Offline
Last seen: 1 day 13 hours ago
Joined: Aug 13 2013 - 17:05
Posts: 9
Re: Apple III monitor:

Thank you for the link Steven, I will put my energy in the investigation
