Expansion Cards

Hi. I dug up a few cards today out of storage and I am not certain what some of them are for. Does anyone recognize any of these?

Any help is appreciated! Thanks

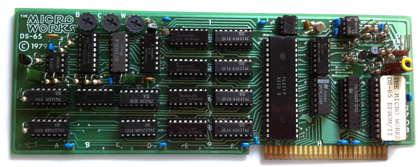

This one has the writing MICRO WORKS DS-65 EPROM II written on it. The only IO connection are a single three-pin header.

See full size image here >> http://www3.telus.net/ryanfransen/images/apple_io_card_1.png

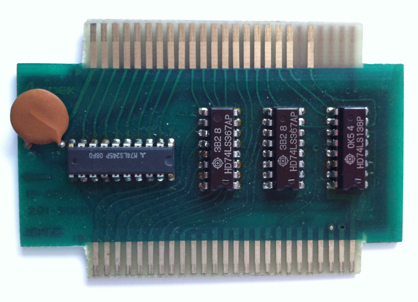

This one has the writing AMDEK written on it.

See full size image here >> http://www3.telus.net/ryanfransen/images/apple_io_card_2.png

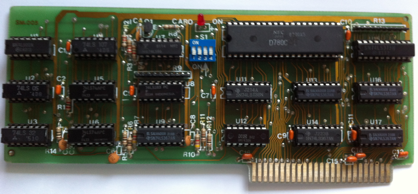

This card really doesn't have much writing on it at all.

See full size image here >> http://www3.telus.net/ryanfransen/images/apple_io_card_3.png

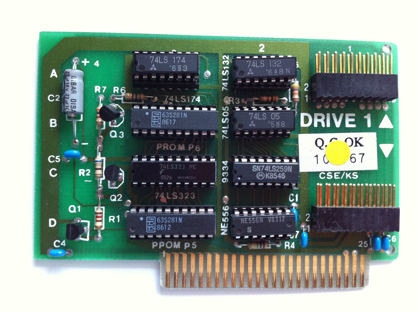

I am fairly certain this is a simple dual floppy drive interface card.

See full size image here >> http://www3.telus.net/ryanfransen/images/apple_io_card_4.png

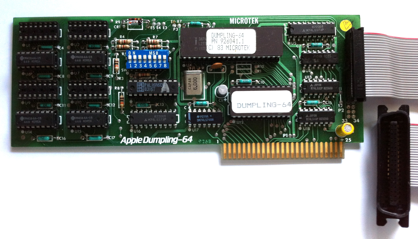

This card says Apple Dumpling-64 and Microtek written on it and has a Centrics cable attached to a header. My guess is a printer interface card.

See full size image here >> http://www3.telus.net/ryanfransen/images/apple_io_card_5.png

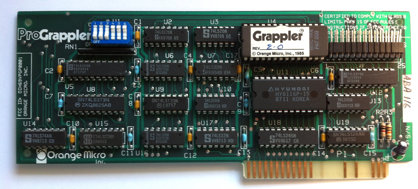

This card says Pro Grappler and Orange Micro written on it and has a header in the top right.

See full size image here >> http://www3.telus.net/ryanfransen/images/apple_io_card_6.png

Any help is appreciatedRyan

AttachmentSize
Image icon apple_io_card_1149.3 KB
Image icon apple_io_card_2195.08 KB
Image icon apple_io_card_3168.71 KB
Image icon apple_io_card_4214.05 KB
Image icon apple_io_card_5149.33 KB
Image icon apple_io_card_6166.7 KB
Offline
Last seen: 1 year 7 months ago
Joined: Jan 24 2005 - 16:20
Re: Expansion Cards

The Micro Works DS-54 is an early digitizer card. You can read a little more about it in the this article:
http://jnm.snmjournals.org/content/27/4/549.full.pdf

I'm not sure about the Amdek card, unless it's the adapter for their 3.5 drive.

Card 3 is a clone of the Microsoft Softcard.

Card 4 is a clone of the Apple Disk II controller

Card 5 is a Dumpling parellel printer interface with 64K buffer

Card 6 is a ProGrappler parallel printer interface

Offline
Last seen: 6 years 9 months ago
Joined: Jun 20 2011 - 00:08
Re: Expansion Cards

Great - thanks for the info sfahey!

I do have some other digitizer hardware, including the camera, so not too surprised to hear about the digitizer card.

gsmcten's picture
Offline
Last seen: 1 month 1 week ago
Joined: Oct 4 2005 - 18:52
Re: Expansion Cards

Card Number 1 (From Google Search)

This early Apple II video digitizer (the DS-65 Digiselector) took a regular video input and…well, digitized it. The result was a 256×256 pixel greyscale still image that you could manipulate on your Apple II. In an age before consumer digital cameras, this was quite a novel feat of technical wizardry.

It sold for $349.95 in 1979, which is equivalent to $1,054.24 in 2010 dollars. That's actually not too bad.
