Strange Character ROM connection
AttachmentSize

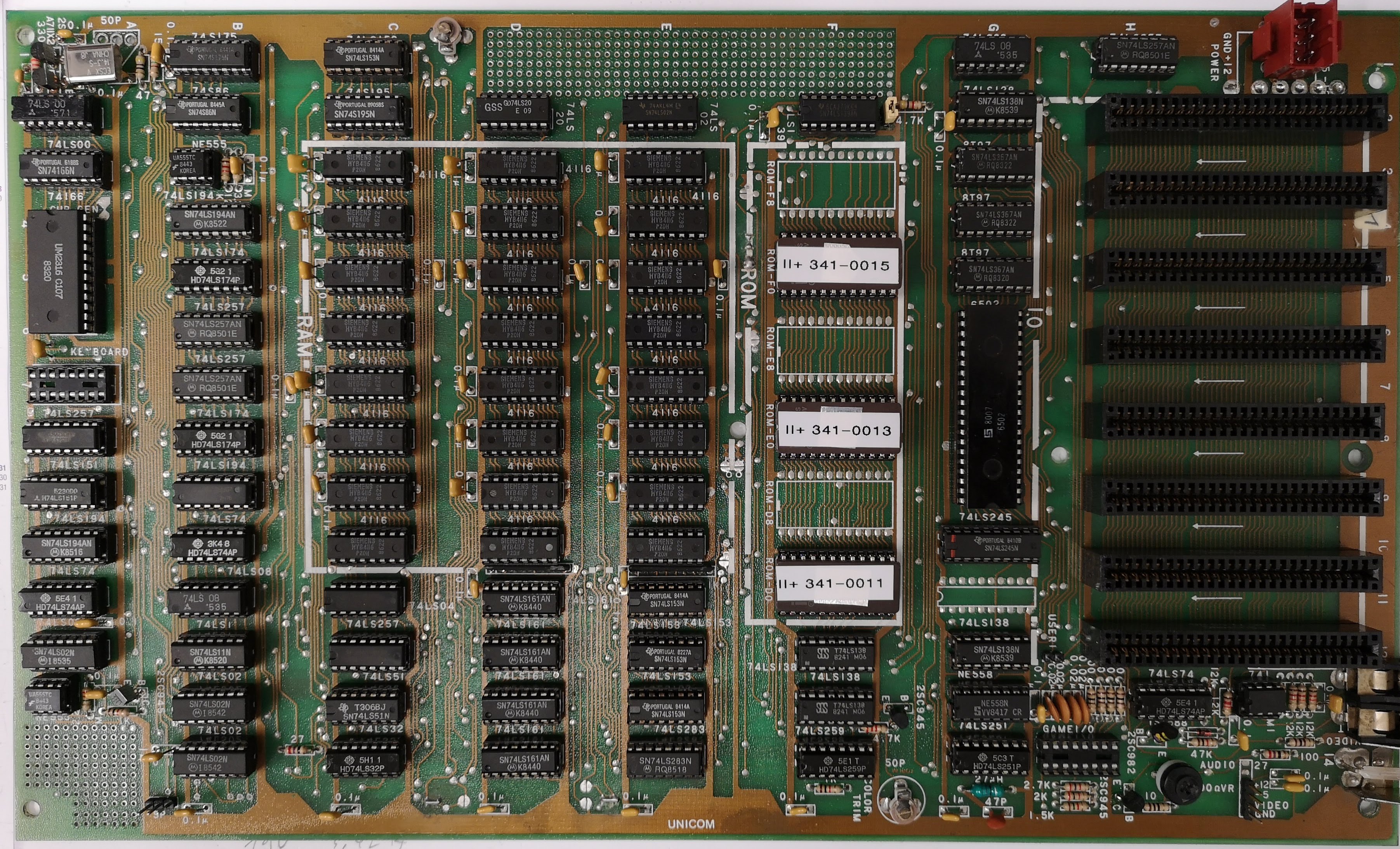

Image icon Apple II+ Clone (Unicom)2.27 MB

I've recently restored this Apple II+ Clone. It has a UM2316 as character ROM. The Chip itself is replaceable with a 2716 eprom. But none of the standard Apple II Character ROMs works.

The connection between the ROM and the 74166 totally diffrent from what it is in a regular II+.

Does anyone regognize this board? Are there any Informations / ROM images available anywhere?





Offline
Last seen: 6 hours 10 min ago
Joined: Jul 5 2018 - 09:44
Posts: 2538
I've got one that is similar,

I've got one that is similar, but not exactly the same.  This one appears to use 2732 EPROMs for example where the one I have uses 2716.  Mine has the 74LS138 that is non-populated on this mobo, and mine has the inline power connector populated instead of the 2x3 connector.  There were a lot of variations on these.  I believe most of them originated out of either Tiawan or Hong Kong back in the day, although I know they made some clones in place like Brazil as well.  As for the variation of the CHARGEN EPROM, that is interesting.  Have you done a dump of the data, or is your EPROM bad?  I've been working on a project for the //e using a larger ROM and the annunciator outputs from the game port to allow software selection of CHARGEN images, so I've been working on a CHARGEN image editor to facilitate making new "fonts".  I haven't gotten that far on it yet.  Too many other projects ahead of it at the moment.



Offline
Last seen: 5 years 2 months ago
Joined: Oct 2 2018 - 05:19
Posts: 3
The chargen ROM works, if you

The chargen ROM works, if you like, you can have a dump of it.

Offline
Last seen: 6 hours 10 min ago
Joined: Jul 5 2018 - 09:44
Posts: 2538
The one in my clone seems to

The one in my clone seems to work.  I have a MiniPro TL866CS programmer so I can dump or duplicate EPROMs.



Offline
Last seen: 1 year 1 week ago
Joined: Aug 4 2018 - 21:59
Posts: 139
When you say it doesnt work,

When you say it doesnt work, what is it not doing?

Post a photo of the screen. It may not be a CG ROM problem at all.

Offline
Last seen: 1 week 10 hours ago
Joined: Aug 18 2017 - 16:53
Posts: 164
softwarejanitor wrote:I have

[quote=softwarejanitor]

I have a MiniPro TL866CS programmer so I can dump or duplicate EPROMs.



[/quote]

This chinese programmer cannot program EPROMs with Vpp @ 25V. Nearly all (old) 2716 and most (old) 2732 are of this type.

And a warning: the data base is very poor. Many other EPROMs have different voltages for programming or supply during programming. I compared several datasheets to the data base.



Regards,

Ralf



Offline
Last seen: 6 hours 10 min ago
Joined: Jul 5 2018 - 09:44
Posts: 2538
I've not had a problem with

I've not had a problem with any of the 2716 to 27512 that I have tried, but perhaps they are all newer.  Most of the ones I have bought recently have been ST, but I've burned AMD and Intel fabbed parts from my 30 year old stash w/o issues too.



I'm also not using the supplied software, but rather an open source one because I don't have Windows, so I am not sure it uses the same database.
