Unknown Apple II card and gameport connector "dongle"

12 posts / 0 new
Last post
Offline
Last seen: 7 years 9 months ago
Joined: Apr 20 2013 - 19:06
Posts: 2
Unknown Apple II card and gameport connector "dongle"
AttachmentSize
Image icon P9120114.JPG430.83 KB
Image icon P9120115.JPG444.97 KB

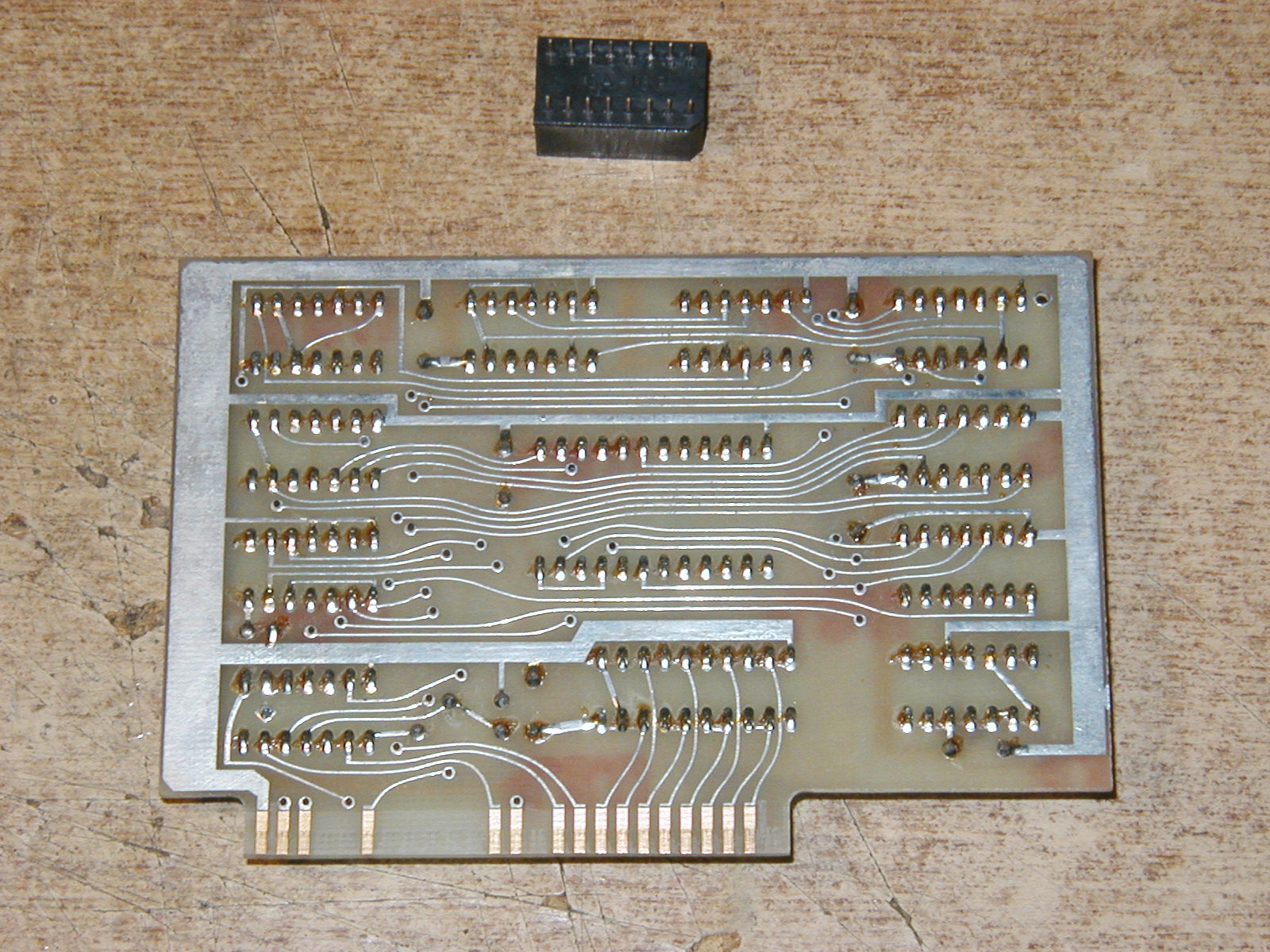

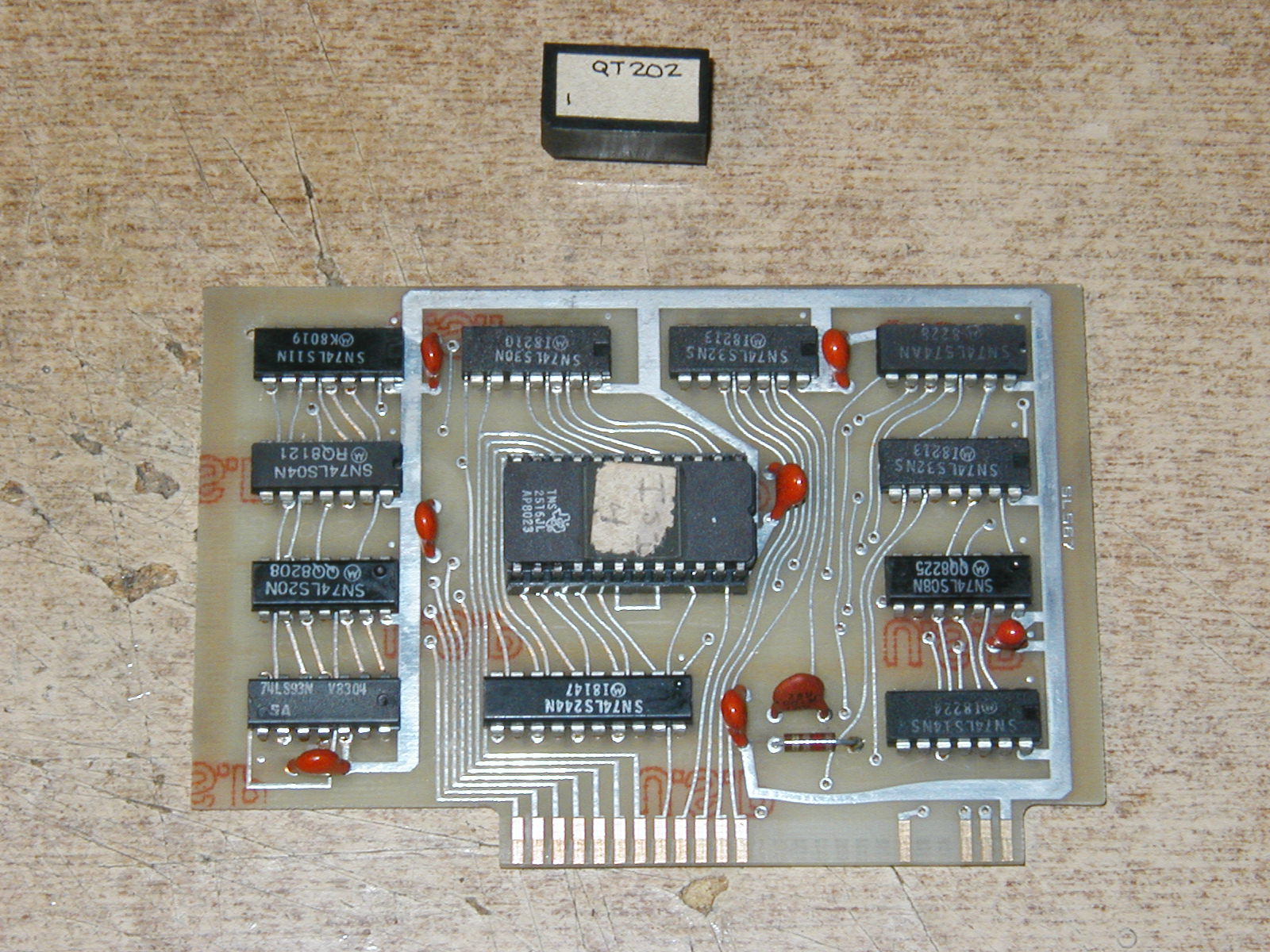

I bought one Apple II plus computer last week... inside I found one unknown card and small chip/dongle inserted into gameport socket...

I used alcohol and removed black marker colour on chips and capacitors... very primitive type of protection against reading chips markings and clonining card Smile
I tried to read eprom in programmer but I think this eprom was failed... every time read different contents...
Eprom sticker on card read: I s I 4
Dongle sticker QT 202

Does anybody know what is this?

see attached pictures...

Thank you

macnoyd's picture
Offline
Last seen: 4 hours 30 min ago
Joined: Oct 15 2012 - 08:59
Posts: 849
Re: Unknown Apple II card and gameport connector "dongle"

Looks like a software "Key"

CWJ_Wilko's picture
Offline
Last seen: 5 months 3 weeks ago
Joined: Jun 2 2015 - 23:38
Posts: 289
Re: Unknown Apple II card and gameport connector "dongle"

Could it possibly have been an EPROM programmer?

PINKBOY1006's picture
Offline
Last seen: 5 months 3 weeks ago
Joined: Jul 9 2016 - 17:27
Posts: 128
Re: Unknown Apple II card and gameport connector "dongle"

Could it possibly have been an EPROM programmer?

If it was a Eprom programmer it would have a ZIF socket.

Offline
Last seen: 2 years 10 months ago
Joined: Aug 11 2015 - 20:13
Posts: 228
Re: Unknown Apple II card and gameport connector "dongle"

Plug it in your Apple II+
and get a listing of the contents of the EPROM.

i.e. If it's in slot #2
Type from prompt in basic:
CALL-151
C200L

speedyG's picture
Offline
Last seen: 5 years 1 month ago
Joined: Nov 16 2011 - 07:45
Posts: 2493
Re: Unknown Apple II card and gameport connector "dongle"

A bunch of that donglecards have been sold about 2 years ago at ebay....
some postings from
http://www.applefritter.com/?q=content/laughable
spotted out that offers....

speedyG

Offline
Last seen: 7 years 9 months ago
Joined: Apr 20 2013 - 19:06
Posts: 2
Re: Unknown Apple II card and gameport connector "dongle"

I plug card into Apple IIe in slot 2 and type commands...
see screenshots...
http://www.igreklik.com/slike/images/19310473425199661172.jpg
http://www.igreklik.com/slike/images/68270984358241284682.jpg
http://www.igreklik.com/slike/images/52893479510134806715.jpg
http://www.igreklik.com/slike/images/06155690461822727477.jpg
http://www.igreklik.com/slike/images/52887126674136519715.jpg

what do you think?
Tomorrow I will try to read eprom again but in another programmer (Topmax)...

Thank you

macnoyd's picture
Offline
Last seen: 4 hours 30 min ago
Joined: Oct 15 2012 - 08:59
Posts: 849
Re: Unknown Apple II card and gameport connector "dongle"

Still looks like a software Key. (dongle)

Offline
Last seen: 2 years 10 months ago
Joined: Aug 11 2015 - 20:13
Posts: 228
Re: Unknown Apple II card and gameport connector "dongle"

Type from monitor:
C2AFL

Then send picture of screen.

Online
Last seen: 1 hour 25 min ago
Joined: Jun 18 2010 - 13:54
Posts: 765
Re: Unknown Apple II card and gameport connector "dongle"

The EPROM looks fine (albeit all the NOPs make it look weird; again probably someone's lame attempt to prevent figuring it out).

Code you listed just saves some registers and then jumps to a routine in the $C800 space. Would have to list out the complete EPROM to see that.

Also looks like it only wants to be in slot 4. And then there's a strange JSR to $00B1 which means it probably needs to be preset by some other software before the card is called with something like a PR#4 or IN#4.

Offline
Last seen: 2 years 10 months ago
Joined: Aug 11 2015 - 20:13
Posts: 228
Re: Unknown Apple II card and gameport connector "dongle"

Fastah

Strange code. Mostly loading and storing of values in zero page
and pushing and pulling from the stack.
Your are right. This is not the real code. You will
somehow have to read in from EPROM programmer to see it
what it is. (If the eprom is salvagable, otherwise just a board)

Online
Last seen: 1 hour 25 min ago
Joined: Jun 18 2010 - 13:54
Posts: 765
Re: Unknown Apple II card and gameport connector "dongle"

Yes, the code basically saves the A,X,Y,and P values, then executes at $C8B2 followed by a restore of the registers.

Put the card in slot 4 and from monitor type c400 and then you can disassemble $c800 (start with c8b2L).
