YKH-128 (aka HMS-3264) EPROM Programmer... searching for the software disk
AttachmentSize
Image icon YKH-128 EPROM Programmer card773.32 KB

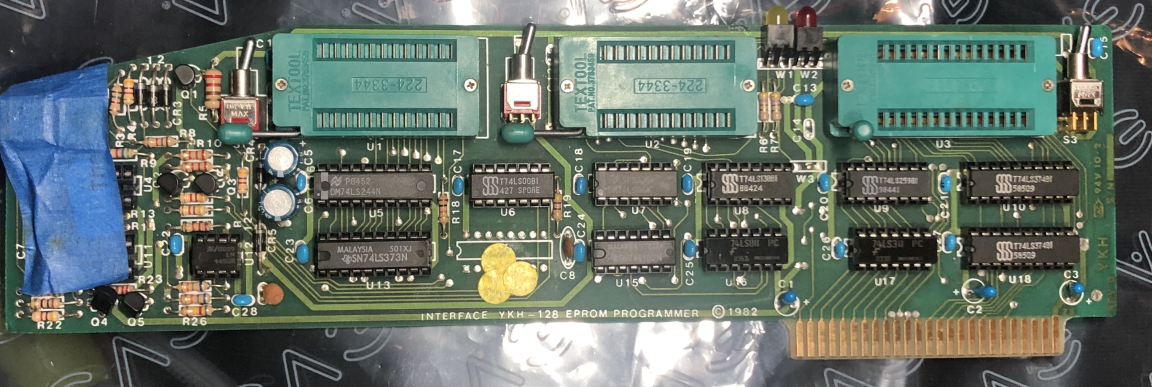

I have this old EPROM Programmer card (called a  YKH-128) that I acquired around 1983.  It is the type with three ZIF sockets designed to handle 2716, 2732, 2732A, and 2764/27128 respectively with the correct volatges generated for burning reliably. It is also an almost exact clone of the Hollister Microsystems HMS-3264 card. Over the years and several moves, I no longer have the software diskette for driving it, and the disk image does not appear in the usual repositories (eg Asimov).  No roms on this card, all of the logic is driven from the utility program.

Does anyone have the disk or can provide an image that I can use with this card? It is different software than is used with the common AP-64 type (single socket) EPROM card.
