Some weird PCB in my new Apple II

3 posts / 0 new
Last post
Offline
Last seen: 4 years 3 months ago
Joined: Jul 16 2006 - 17:30
Posts: 81
Some weird PCB in my new Apple II
AttachmentSize
Image icon appleii-tictoc.jpg91.66 KB

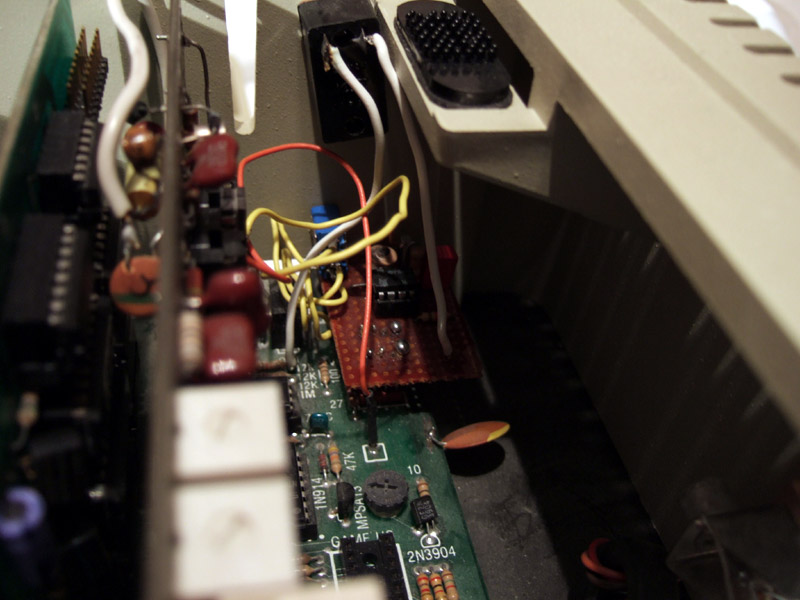

Can anyone tell me what the heck this is? It's sitting in a new Apple II that I just bought. It seems to be a home-made PCB connected to the auxiliary video connector (probably only for power supply), and it seems to generate a 2 Hz signal into the cassette input (I connected earphones to the cassette in and could hear a 2 Hz ticking).

BTW I bought not only this Apple II, but two others, plus a real Apple II monitor, Apple joystick, paddles, an Apple Silentype (really neat little thing, had never seen or heard of it before), etc.

http://www.applefritter.com/node/23791
http://www.applefritter.com/node/23789
http://www.applefritter.com/node/23792

Offline
Last seen: 4 years 3 months ago
Joined: Jul 16 2006 - 17:30
Posts: 81
For clarity I'm submitting a

For clarity I'm submitting a link to the image of the home-made PCB I was asking about:
http://www.applefritter.com/node/23788

gsmcten's picture
Offline
Last seen: 2 years 4 months ago
Joined: Oct 4 2005 - 18:52
Posts: 2631
The Weird PCB

Jak,

It's just a guess, but it could be an amplifier for making sure that whatever is being saved via the cassette input gets to the cassette with plenty of signal strength. Smile
