iMac 333 with external ATA DVD Drive

Submitted by gustavopinent on February 20, 2009 - 5:32pm

Trying to replace the tray loading drive with non Apple CD/DVD drive

Taxonomy:
Other
Other
Image:

Comments

gsmcten's picture

Submitted by gsmcten on February 20, 2009 - 5:35pm.

Gustav,

What were the steps required to accomplish this?

Thanks

Submitted by gustavopinent on February 22, 2009 - 4:01pm.

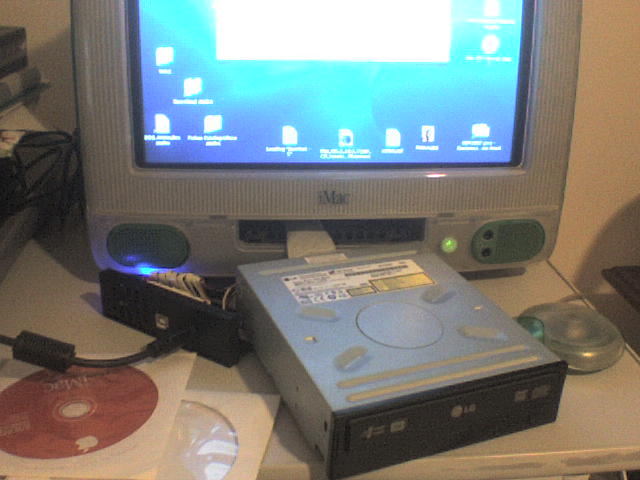

Well... I didn't really accomplish yet. I post this image to insert in my forum posts, just to show it to applefritter's fans. Connect the drive is siple: you take off the original cable and the original CD drive. Connect the HD with a ordinary flat cable and put the second connector out as you see at the picture, and connect the other CD/DVD drive. You'll need some power. I advise to not duplicate the power cable (you may "overcharge" motherboard). I use a disassembled external case, using only the power cable from it.

Voila... you got a cheap DVD ROM running at a reasonable speed, not the 6X from the USB 1.1.

But iMac doesn't recognize it as a bootable device! I still cannot reinstal my MACOSX. If you got some ideas, please let me know!
